Standard Series

Product Features

  • Efficacy: CRI80+ up to 110lm/w, CRI90+ up to 90lm/w.
  • High Quality 2835 and 5050 SMD LED.
  • Waterproof option: IP20, IP65, IP67, IP68
  • Suitable for office, residential, retail and decorative lighting.
  • CRI80+,90+,95+optional.
  • Warranty:3 years.



Dimensions

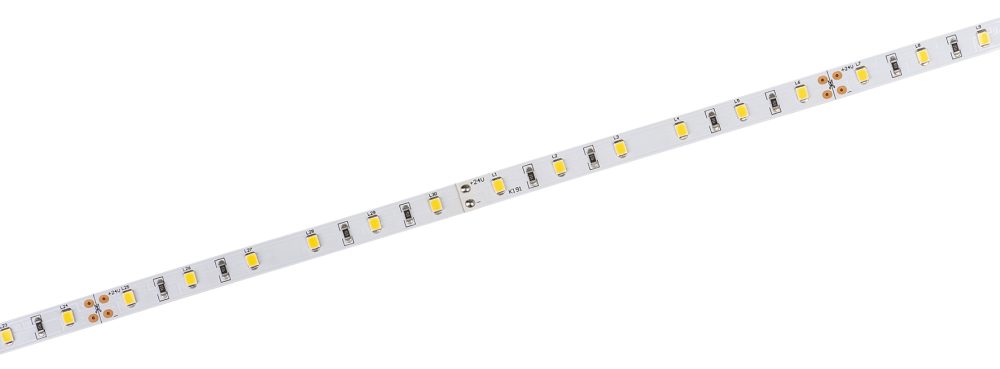

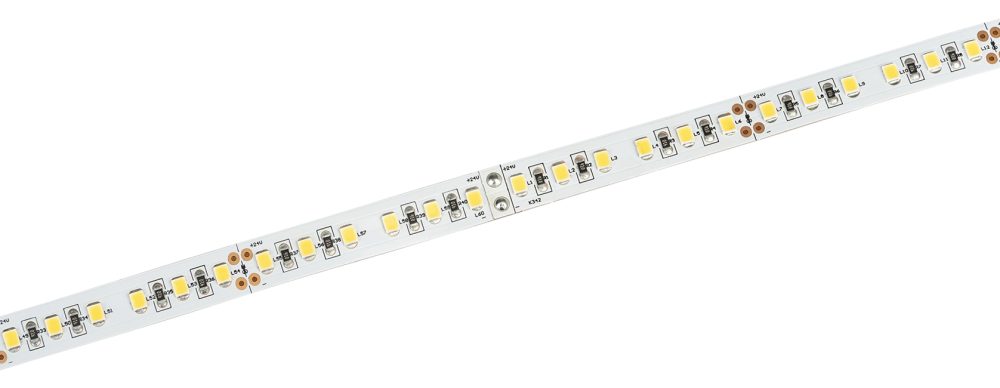

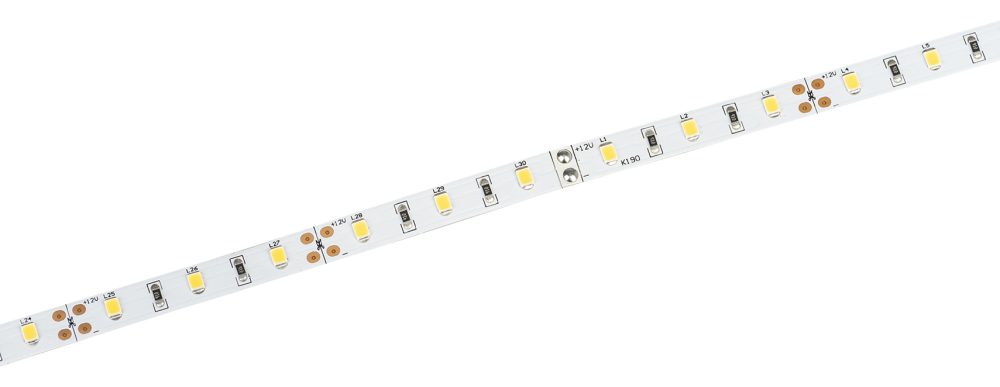

K342                                                                        K190

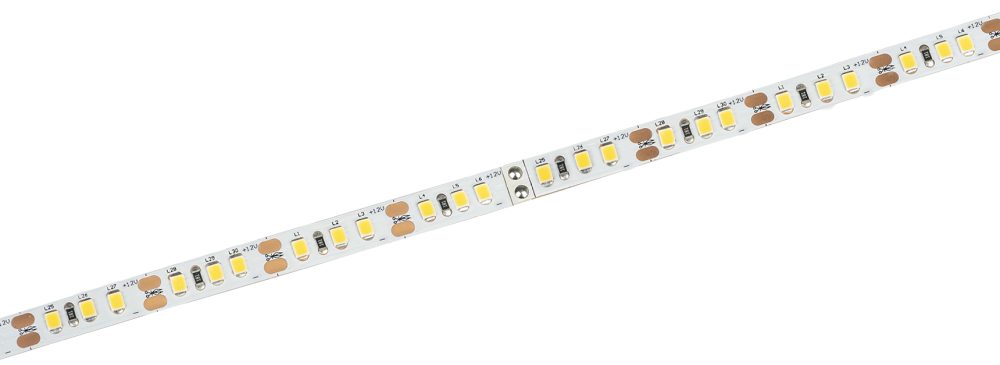

K470                                                                        K191



Application



Packaging



Certifications



Item No. Size Cutting Unit Input Voltage Input Current Typ-power Max. Power Bend Diameter Copper foil CRI CCT LM/m LM/W Efficiency Class
LD-2835XX60K190N1-12 5000×8×1.2mm 3LEDs/50mm DC12V 0.4A/m 4.8W/m 5.28W >60mm 2oz >80 2700K/3000K/4000K/5000K/6000K 504/528/557/557/528 105/110/116/116/110 F
LD-2835XX60K190N1-12 5000×8×1.2mm 3LEDs/50mm DC12V 0.4A/m 4.8W/m 5.28W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 403/422/445/445/422 84/88/93/93/88 F
LD-2835XX60K191N1-24 5000×8×1.2mm 6LEDs/100mm DC24V 0.2A/m 4.8W/m 5.28W >60mm 2oz >80 2700K/3000K/4000K/5000K/6000K 504/528/557/557/528 105/110/116/116/110 F
LD-2835XX60K191N1-24 5000×8×1.2mm 6LEDs/100mm DC24V 0.2A/m 4.8W/m 5.28W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 403/422/445/445/422 84/88/93/93/88 F
LD-2835XX120K470N1-12 5000×10×1.2mm 3LEDs/25mm DC12V 0.8A/m 9.6W/m 10.56W >60mm 2oz >80 2700K/3000K/4000K/5000K/6000K 1008/1056/1114/1114/1056 105/110/116/116/110 F
LD-2835XX60K190N1-12 5000×10×1.2mm 3LEDs/25mm DC12V 0.8A/m 9.6W/m 10.56W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 806/845/891/891/845 84/88/93/93/88 F
LD-2835XX120K342N1-24 5000×10×1.2mm 6LEDs/50mm DC24V 0.4A/m 9.6W/m 10.56W >60mm 2oz >80 2700K/3000K/4000K/5000K/6000K 1008/1056/1114/1114/1056 105/110/116/116/110 F
LD-2835XX60K191N1-24 5000×10×1.2mm 6LEDs/50mm DC24V 0.4A/m 9.6W/m 10.56W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 806/845/891/891/845 84/88/93/93/88 F
