Low Voltage Drop Series

Product Features

  • Maximum length up to 40 meters without voltage drop.
  • Efficacy: CRI80+ up to 110lm/w.
  • High Quality LM80 certified 2835 SMD.
  • Waterproof option: IP20, IP65, IP67, IP68.
  • Suitable for office, residential, retail and decorative lighting.
  • CRI80+,90+,95+optional.
  • Warranty:3 years.



Dimensions

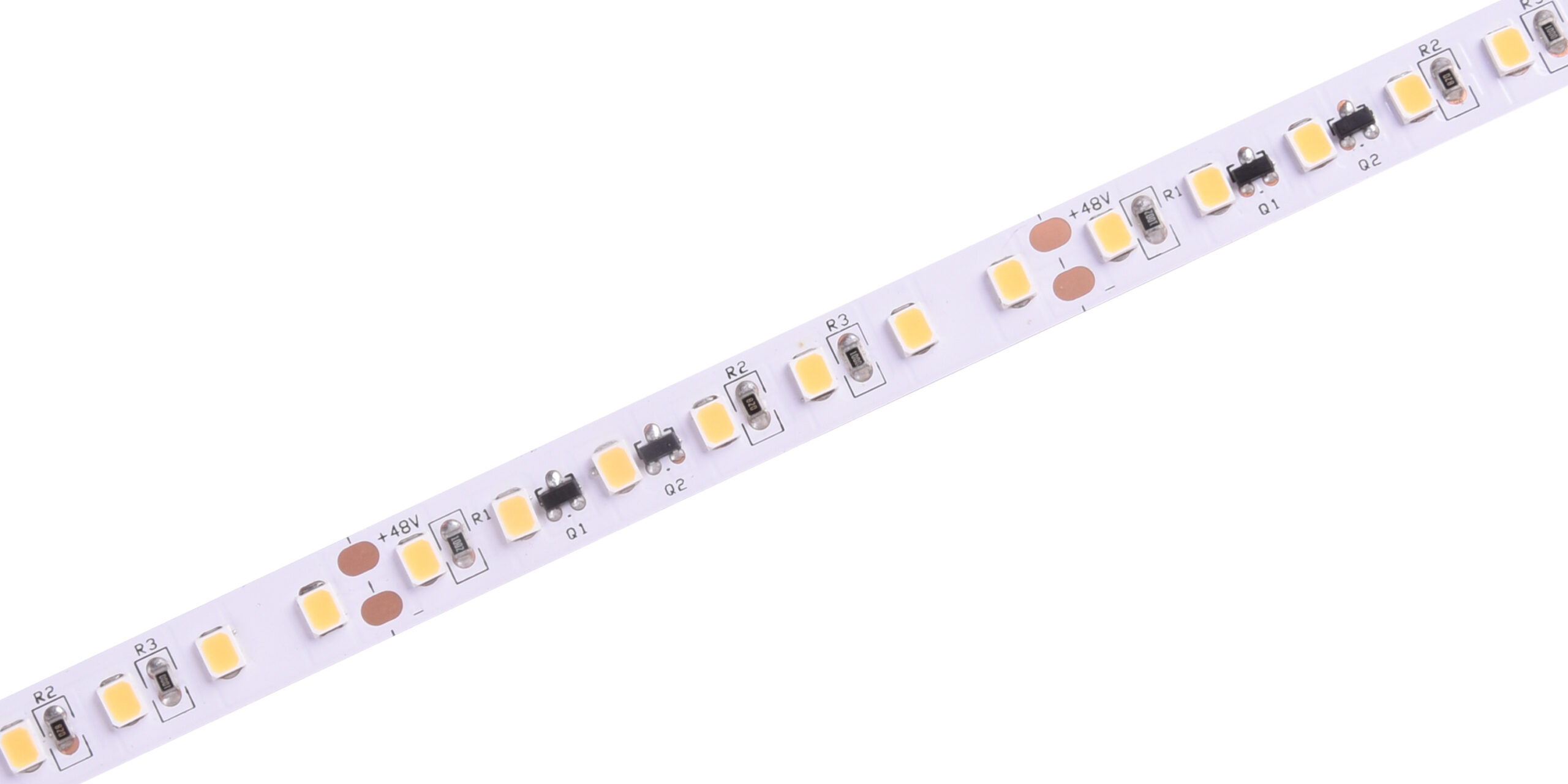

K1172                                                                      K978

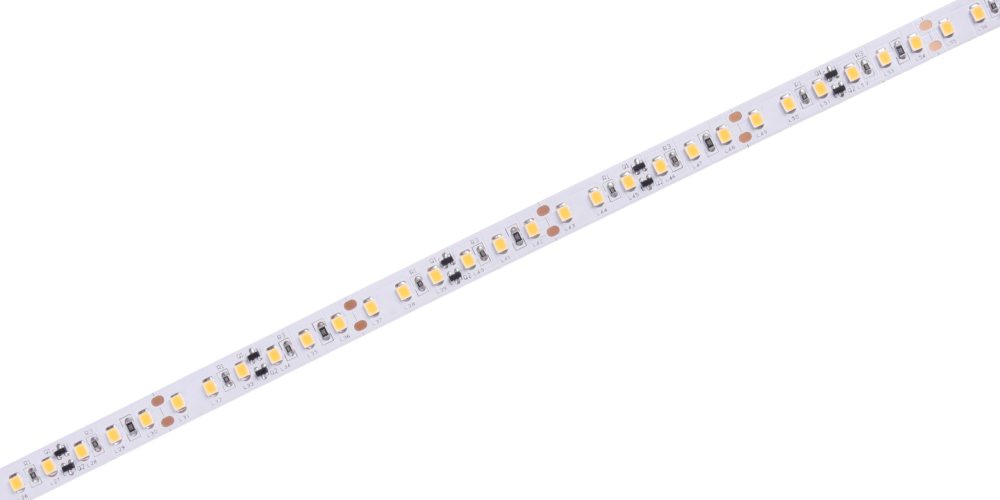

K953

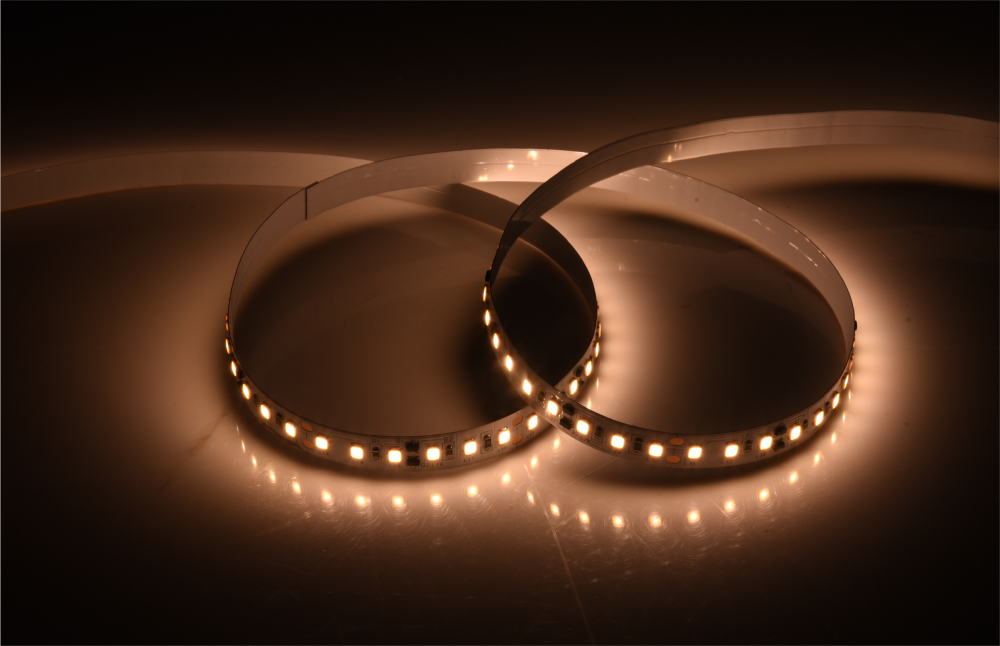

Application



Packaging



Certifications

Item No. Size Cutting Unit Input Voltage Input Current Typ-power Max. Power Bend Diameter Copper foil CRI CCT LM/m LM/W Efficiency Class
LD-2835XX60K978N1-24 40000×10×1.6mm 6LEDs/100MM DC24V 0.2A/m 4.8W/m 5.3W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 486/513/540/540/524 101/107/113/113/109 F
LD-2835XX120K953N1-24 15000×10×1.6mm 6LEDs/100MM DC24V 0.38A/m 9.1W/m 10W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 969/1023/1077/1077/1045 106/112/118/118/115 F
LD-2835XX120K1172N1-48 30000×10×1.6mm 6LEDs/100MM DC48V 0.13A/m 6W/m 6.6W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 562/593/624/624/605 94/99/104/104/101 F
