Features
Product Features
- CCT adjustable
- High Quality LM80 certified 2835 SMD.
- Waterproof option: IP20, IP65, IP67, IP68.
- Suitable for office, residential, retail and decorative lighting.
- CRI80+,90+optional.
- Warranty:3 years.
Dimensions

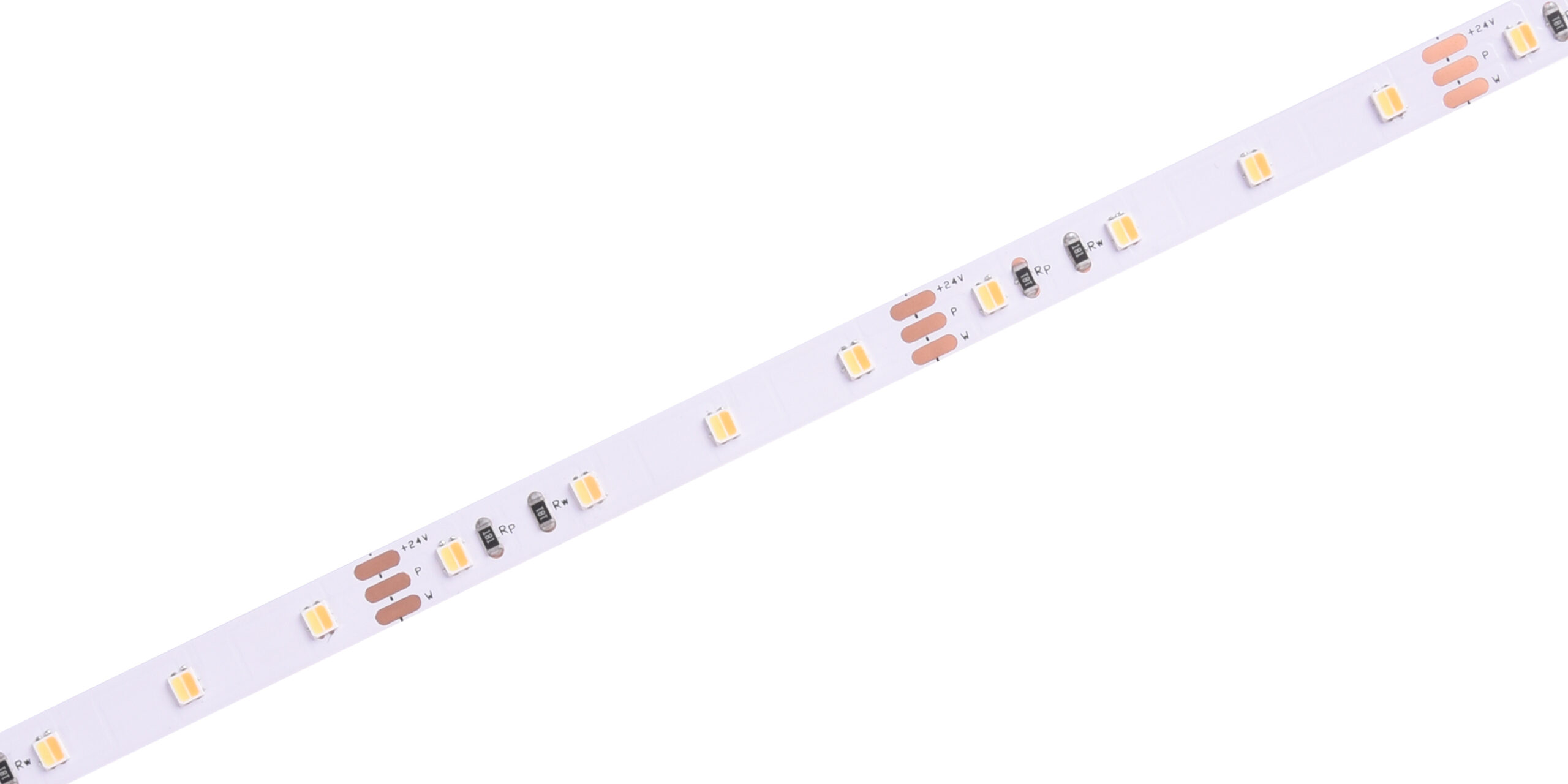

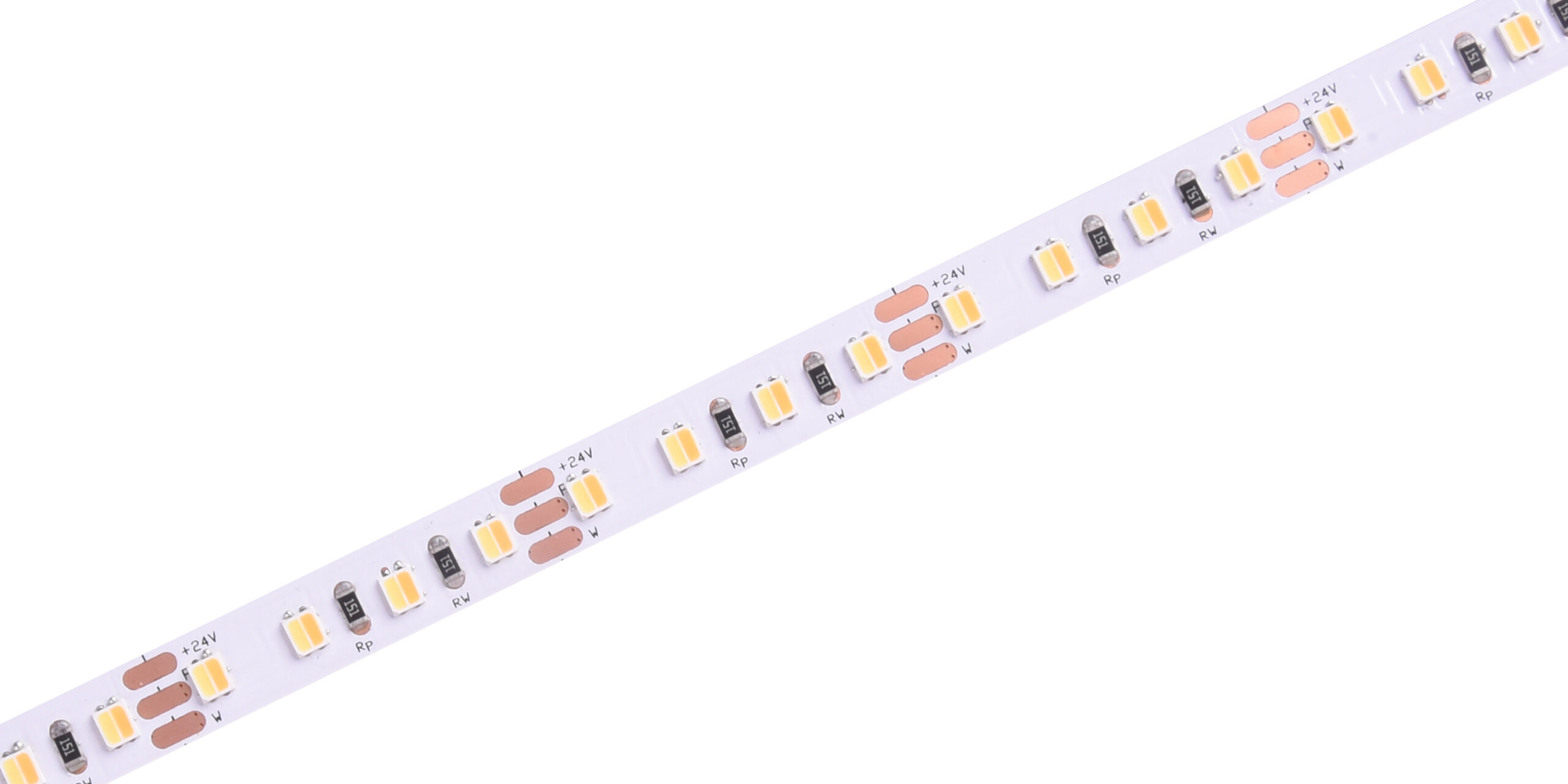

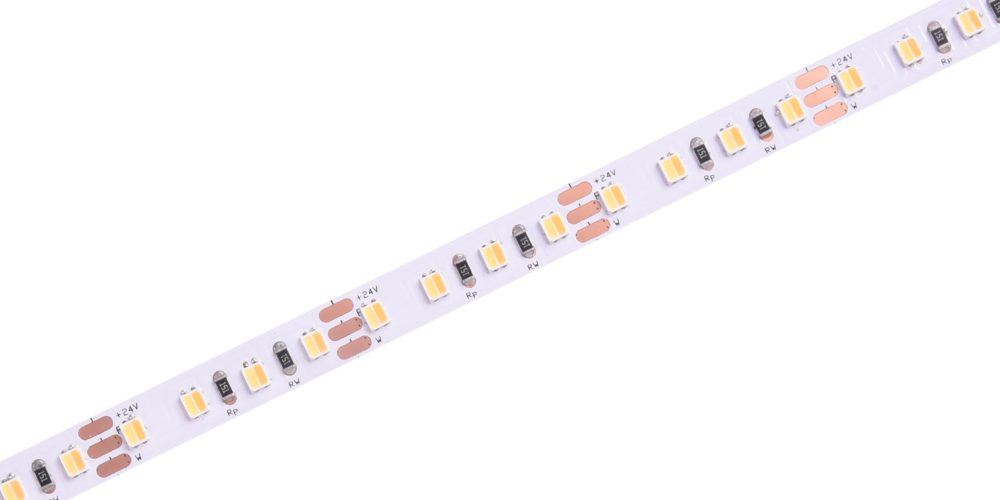

K1170 K1169 K1168

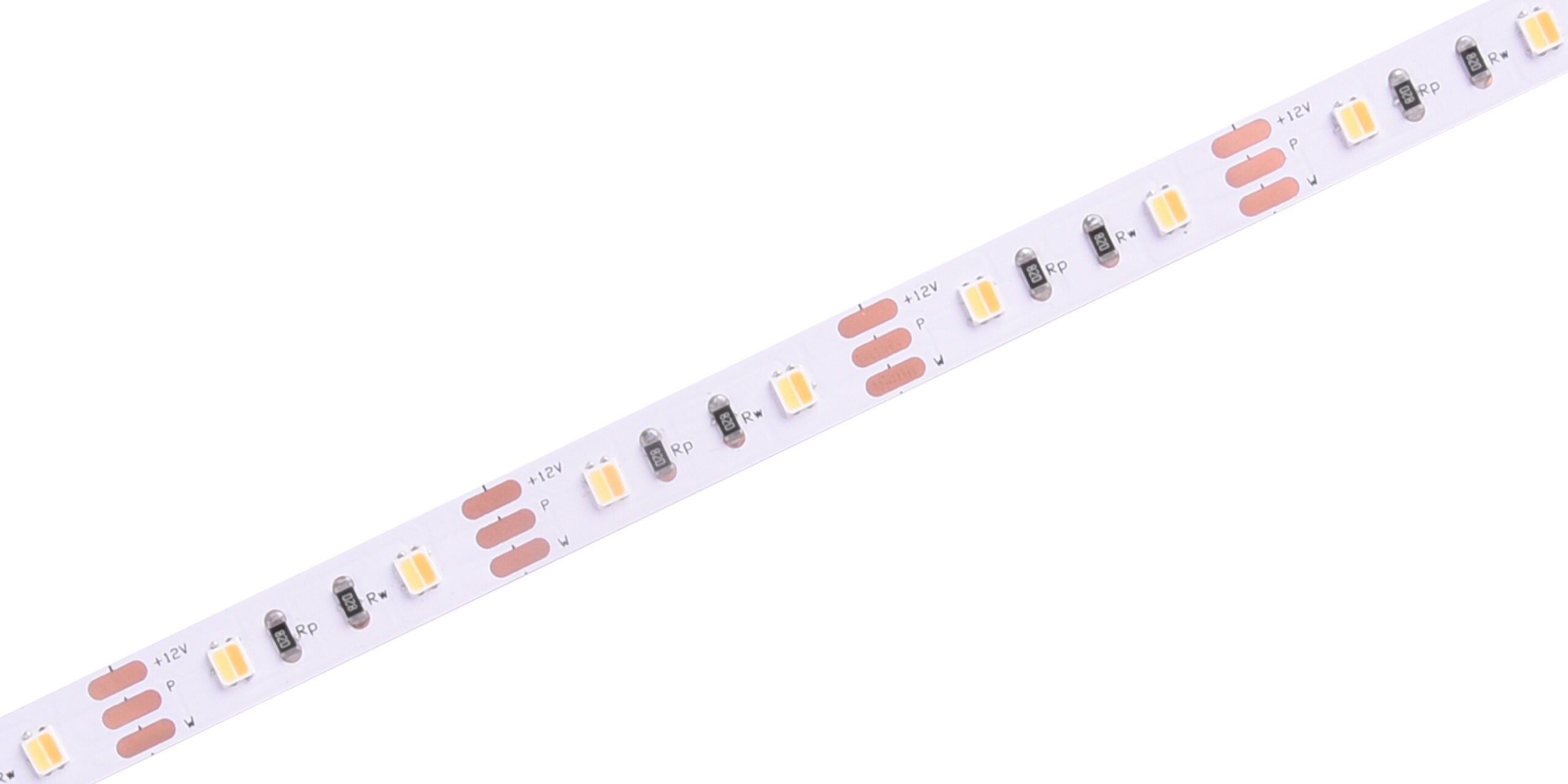

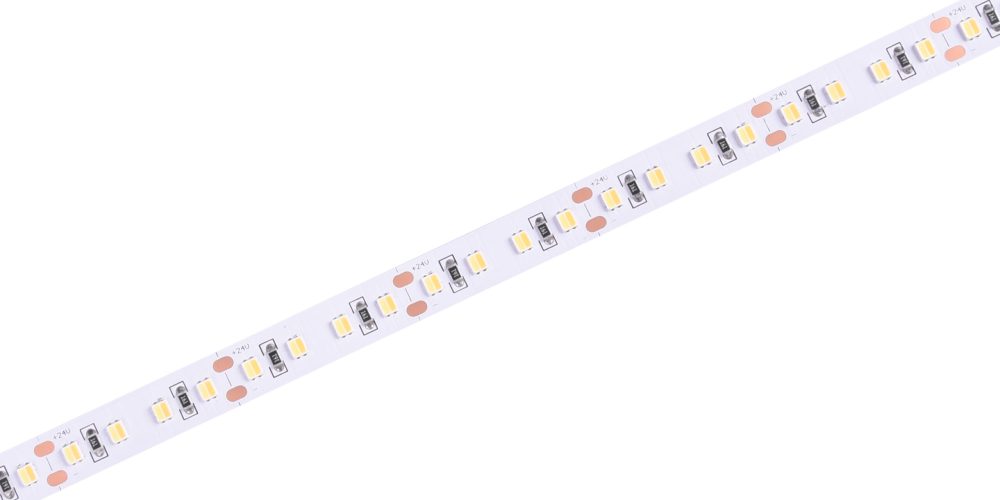

K1167 K1130 K610
Application
Packaging
Certifications
| Item No. | Size | Cutting Unit | Input Voltage | Input Current | Typ-power | Max. Power | Bend Diameter | Copper foil | CRI | CCT | LM/m | LM/W | Efficiency Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LD-2835WW30PW30K333N1-24 | 5000×10×1.2mm | 12LEDs/100mm | DC24V | 0.4A/m | 9.6W/m | 10.56W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6500K | 550/630/1170 | 114.5/95/78 | / |
| LD-2835WW60PW60K611N1-24 | 5000×12×1.2mm | 12LEDs/100mm | DC24V | 0.4A/m | 9.6W/m | 10.56W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6500K | 310/475/780 | 62/96/78 | / |
| LD-2835WW96PW96K664N1-24 | 5000×8×1.2mm | 12LEDs/62.5mm | DC24V | 0.8A/m | 19.2W/m | 21.12W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6000K | 310/475/780 | 62/96/78 | / |
| LD-2835WW120PW102K648N1-24 | 5000×12×1.2mm | 12LEDs/50mm | DC24V | 0.8A/m | 19.2W/m | 21.12W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6500K | 310/475/780 | 62/96/78 | / |
| LD-2835WW120PW102K610N1-24 | 5000×12×1.2mm | 12LEDs/50mm | DC24V | 0.8A/m | 19.2W/m | 21.12W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6500K | 310/475/780 | 62/96/78 | / |
| LD-2835CCT60K1167N1-12 | 5000×8×1.1mm | 2LEDs/33mm | DC12V | 0.8A/m | 10W/m | 11W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6500K | 600/640/1012 | 113/128/117 | / |
| LD-2835CCT120K1170N1-12 | 5000×8×1.1mm | 2LEDs/16.5mm | DC12V | 0.8A/m | 13W/m | 13.43W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6500K | 950/1013/1506 | 117/119/114 | / |
| LD-2835CCT60K1168N1-24 | 5000×8×1.1mm | 4LEDs/63mm | DC24V | 0.4A/m | 10W/m | 11W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6500K | 590/777/1124 | 116/152/119 | / |
| LD-2835CCT120K1169N1-24 | 5000×8×1.1mm | 4LEDs/33mm | DC24V | 0.8A/m | 20W/m | 22W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6500K | 1181/1256/2193 | 114/122/116 | / |
| LD-2835CCT120K1130N1-24 | 5000×10×1.2mm | 4LEDs/100MM | DC24V | 0.4A/m | 9.6W/m | 10.56W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6500K | 410/475/840 | 72/96/86 | / |
| LD_2835_WW300PW300_K333_N_1_24_20mA | 5000x10x1.2mm | 12LEDS/100mm | DC24V | 0.4A/m | 9.6W/m | 10.56W | >60mm | 3oz | >80 | 2700K+6500K | 950 | 100 | F |
| LD_2835_WW480PW480_K664_N_1_24_25mA | 5000x10x1.2mm | 12LEDS/62.5mm | DC24V | 0.8A/m | 19.2W/m | 21.12W | >60mm | 3oz | >80 | 2700K+6500K | 1600 | 83 | G |
| LD_2835_WW600PW600_K664_N_1_24_15mA | 5000x12x1.2mm | 12LEDS/50mm | DC24V | 0.6A/m | 14.4W/m | 15.84W | >60mm | 2oz | >80 | 2700K+6500K | 1200 | 83 | G |
| LD_2835_WWPW700_K1990_N_1_24_2.1mA | 5000x8x1.2mm | 1LED/7.142mm | DC24V | 0.3A/m | 7.2W/m | 7.92W | >60mm | 2oz | >80 | 2700K/6500K | 720 | 100 | F |
| LD_2121_WWPW1120_KXXXX_N_1_24_1.49mA | 5000x6x1.2mm | 1LED/4.46mm | DC24V | 0.333A/m | 8W/m | 8.8W | >60mm | 3oz | >90 | 2700K/6500K | 700 | 88 | F |
| LD_2835_MWWW920_K2139_N_1_24_9.8mA | 5000x8x1.2mm | 4LED/21.74mm | DC24V | 0.45A/m | 10.8W/m | 11.88W | >60mm | 2oz | >90 | 2700K/6500K | 900 | 83 | G |
