Features
Product Features
- Efficacy: CRI80+ up to 110lm/w, CRI90+ up to 90lm/w.
- High Quality 2835 and 5050 SMD LED.
- Waterproof option: IP20, IP65, IP67, IP68

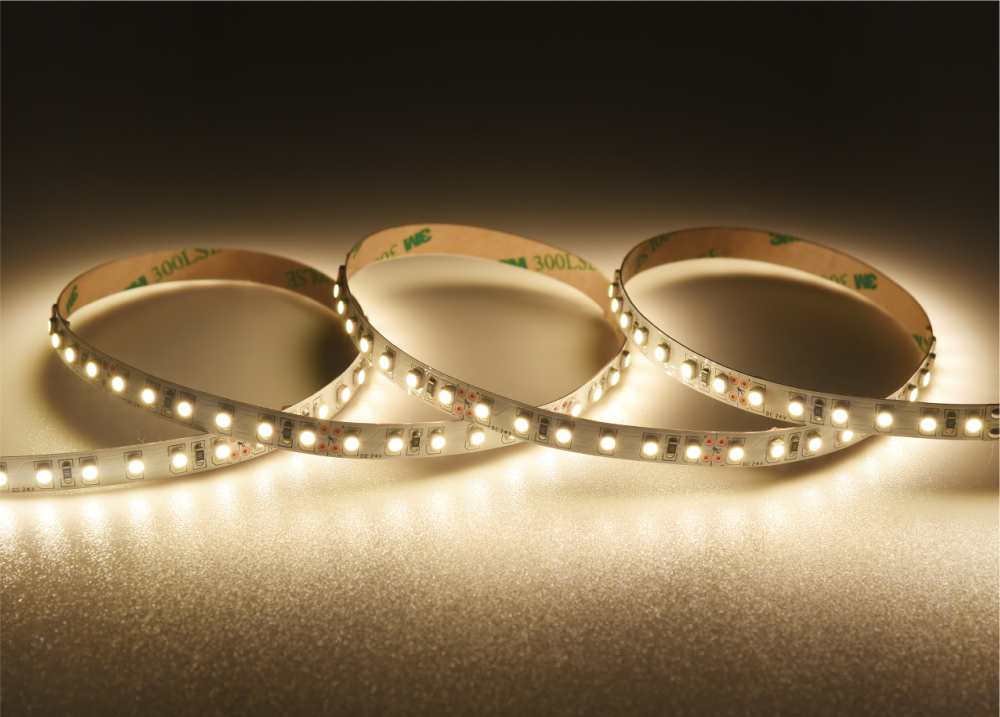

- Suitable for office, residential, retail and decorative lighting.
- CRI80+,90+,95+optional.
- Warranty:3 years
Dimensions

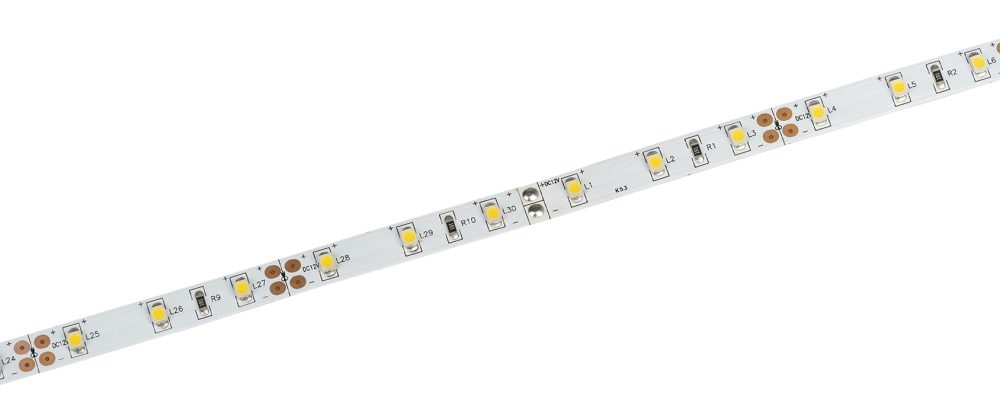

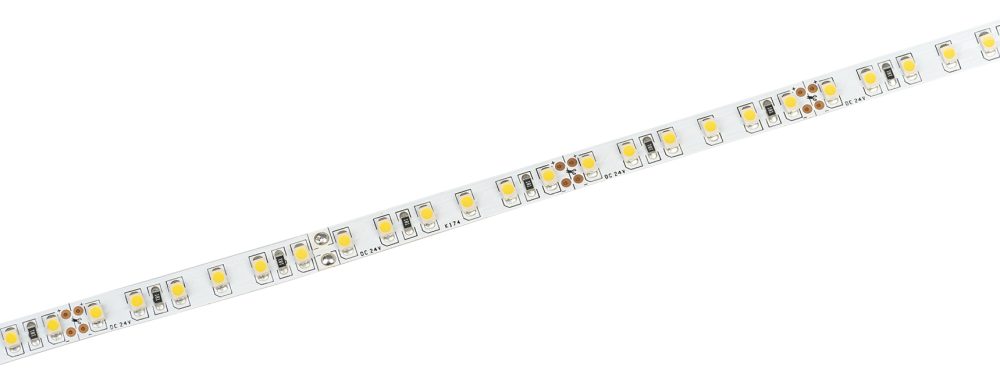

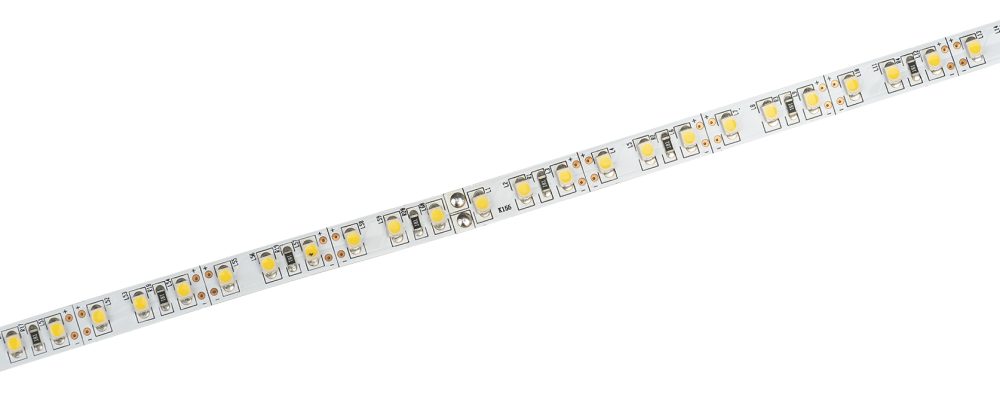

K174 K155 K53

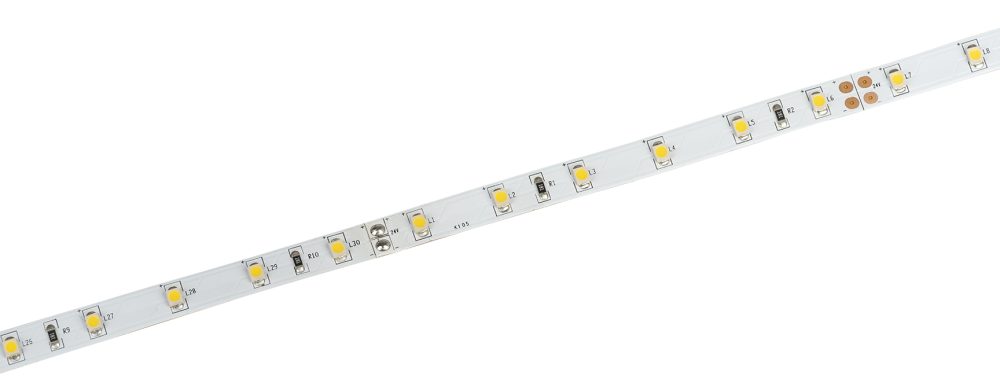

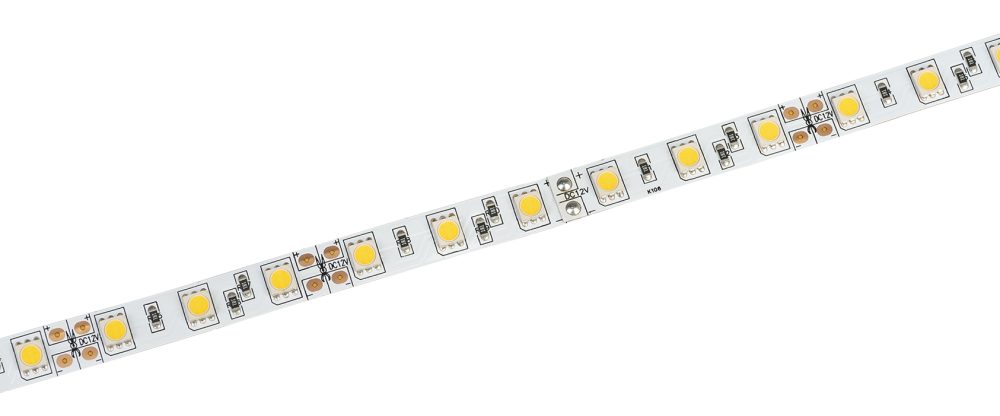

K163 K105 K106
Application
Packaging
Certifications
| Item No. | Size | Cutting Unit | Input Voltage | Input Current | Typ-power | Max. Power | Bend Diameter | Copper foil | CRI | CCT | LM/m | LM/W | Efficiency Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LD-3528XX60K53N1-12 | 5000×8×1.2mm | 3LEDs/50mm | DC12V | 0.4A/m | 4.8W/m | 5.28W | >60mm | 2oz | >80 | 2700K/3000K/4000K/5000K/6000K | 374/398/418/418/398 | 78/83/87/87/83 | G |
| LD-3528XX60K53N1-12 | 5000×8×1.2mm | 3LEDs/50mm | DC12V | 0.4A/m | 4.8W/m | 5.28W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6000K | 299/318/334/334/318 | 62/66/70/70/66 | G |
| LD-3528XX60K105N1-24 | 5000×8×1.2mm | 6LEDs/100mm | DC24V | 0.2A/m | 4.8W/m | 5.28W | >60mm | 2oz | >80 | 2700K/3000K/4000K/5000K/6000K | 374/398/418/418/398 | 78/83/87/87/83 | G |
| LD-3528XX60K105N1-24 | 5000×8×1.2mm | 6LEDs/100mm | DC24V | 0.2A/m | 4.8W/m | 5.28W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6000K | 299/318/334/334/318 | 62/66/70/70/66 | G |
| LD-3528XX120K155N1-12 | 5000×10×1.2mm | 3LEDs/25mm | DC12V | 0.8A/m | 9.6W/m | 10.56W | >60mm | 2oz | >80 | 2700K/3000K/4000K/5000K/6000K | 701/749/787/787/749 | 73/78/82/82/78 | G |
| LD-3528XX120K155N1-12 | 5000×10×1.2mm | 3LEDs/25mm | DC12V | 0.8A/m | 9.6W/m | 10.56W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6000K | 560/600/630/630/600 | 58/62/65/65/62 | G |
| LD-3528XX120K174N1-24 | 5000×10×1.2mm | 3LEDs/25mm | DC24V | 0.8A/m | 9.6W/m | 10.56W | >60mm | 2oz | >80 | 2700K/3000K/4000K/5000K/6000K | 701/749/787/787/749 | 73/78/82/82/78 | G |
| LD-3528XX120K155N1-12 | 5000×10×1.2mm | 3LEDs/25mm | DC124V | 0.8A/m | 9.6W/m | 10.56W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6000K | 560/600/630/630/600 | 58/62/65/65/62 | G |
| LD-5050XX60K106N1-12 | 5000×10×1.2mm | 3LEDs/25mm | DC12V | 1.2A/m | 14.4W/m | 15.84W | >60mm | 2oz | >80 | 2700K/3000K/4000K/5000K/6000K | 1037/1097/1152/1152/1097 | 72/76/80/80/76 | G |
| LD-5050XX60K106N1-12 | 5000×10×1.2mm | 3LEDs/25mm | DC12V | 1.2A/m | 14.4W/m | 15.84W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6000K | 830/878/922/922/878 | 58/61/64/64/61 | G |
| LD-5050XX60K163N1-24 | 5000×10×1.2mm | 6LEDs/100mm | DC24V | 0.6A/m | 14.4W/m | 15.84W | >60mm | 2oz | >80 | 2700K/3000K/4000K/5000K/6000K | 1037/1097/1152/1152/1097 | 72/76/80/80/76 | G |
| LD-5050XX60K163N1-24 | 5000×10×1.2mm | 6LEDs/100mm | DC24V | 0.6A/m | 14.4W/m | 15.84W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6000K | 830/878/922/922/878 | 58/61/64/64/61 | G |
