High Efficacy Series



Features

Product Features

  • Efficacy: CRI80+ up to 200lm/w, CRI90+ up to 155lm/w.
  • High Quality LM80 certified 2835 SMD.
  • Waterproof option: IP20, IP65, IP67, IP68.
  • Suitable for office, residential, retail and decorative lighting.
  • CRI80+,90+,95+optional.
  • Warranty:3 years.



Dimensions

K676                                                                       K678                                                                    K791

K677                                                                       K679                                                                   K792

K1118                                                                        K1165                                                                  K1166

K681                                                                        K683



Application



Packaging

Certifications







Item No.SizeCutting UnitInput VoltageInput CurrentTyp-powerMax. PowerBend DiameterCopper foilCRICCTLM/mLM/WEfficiency Class

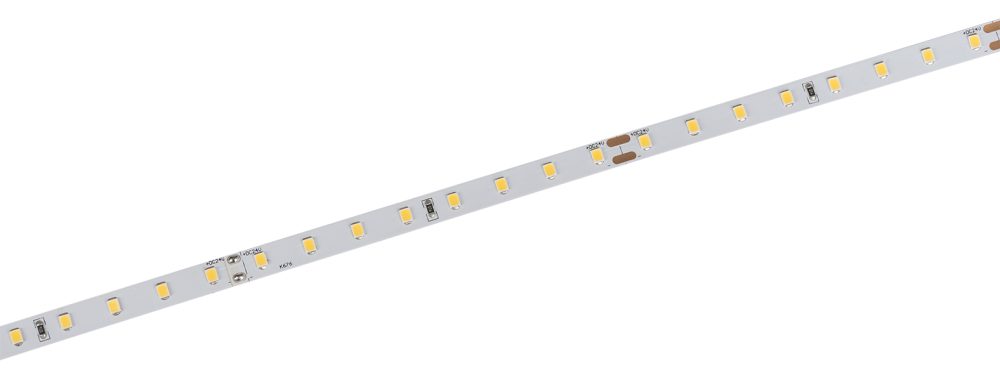

LD-2835XX80K676N1-245000×8×1.2mm8LEDs/100mmDC24V>0.3A/m7.2W/m7.92W>60mm2oz>802700K/3000K/4000K/5000K/6000K1058/1123/1181/1181/1123147/156/164/164/156D
LD-2835XX80K676N1-245000×8×1.2mm8LEDs/100mmDC24V0.3A/m7.2W/m7.92W>60mm2oz>902700K/3000K/4000K/5000K/6000K1693/1797/1889/1889/1797118/125/131/131/125E

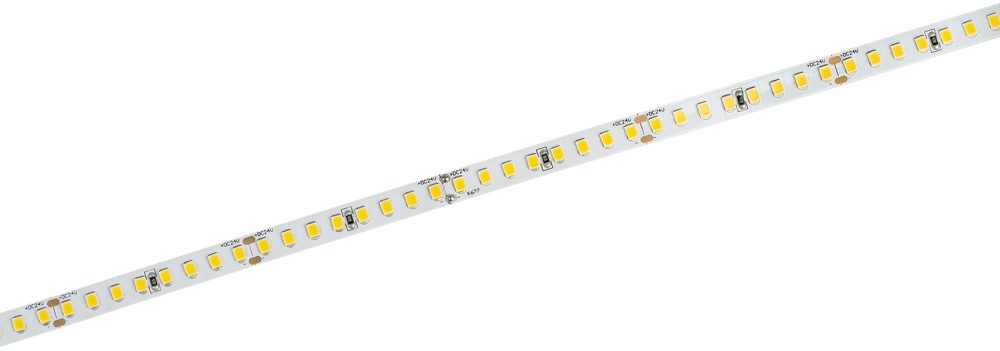

LD-2835XX160K677N1-245000×8×1.2mm8LEDs/50mmDC24V0.6A/m14.4W/m15.84W>60mm2oz>802700K/3000K/4000K/5000K/6000K2117/2246/2362/2362/2246147/149/156/164/156D
LD-2835XX160K677N1-245000×8×1.2mm8LEDs/50mmDC24V0.6A/m14.4W/m15.84W>60mm2oz>902700K/3000K/4000K/5000K/6000K1693/1797/1889/1889/1797118/125/131/131/125E

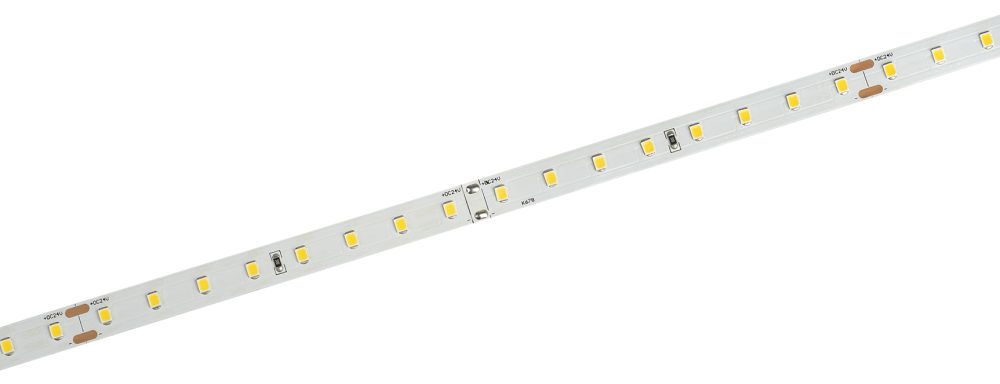

LD-2835XX80K678N1-245000×10×1.2mm8LEDs/100mmDC24V0.3A/m7.2W/m7.92W>60mm2oz>802700K/3000K/4000K/5000K/6000K1058/1123/1181/1181/1123147/156/164/164/156D
LD-2835XX80K678N1-245000×10×1.2mm8LEDs/100mmDC24V0.3A/m7.2W/m7.92W>60mm2oz>902700K/3000K/4000K/5000K/6000K1390/1460/1530/1530/1460118/125/131/131/125E

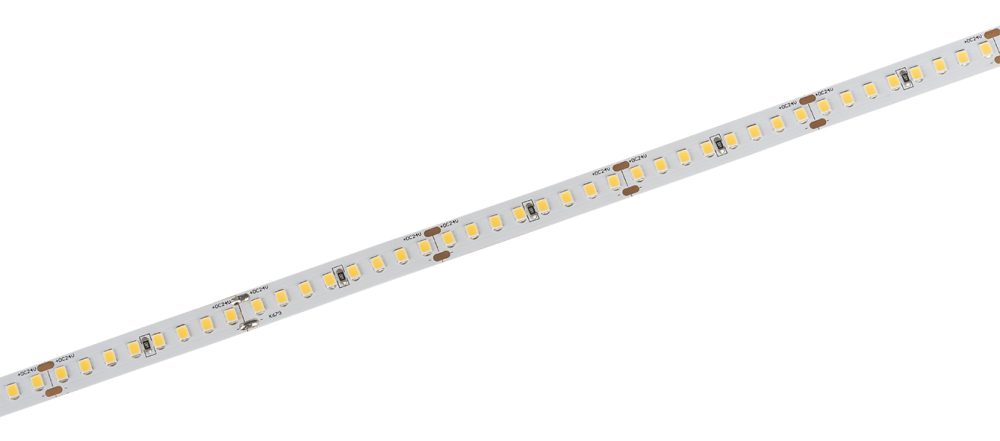

LD-2835XX160K679N1-245000×10×1.2mm8LEDs/50mmDC24V0.6A/m14.4W/m15.84W>60mm2oz>802700K/3000K/4000K/5000K/6000K2117/2246/2362/2362/2246147/156/164/164/156D
LD-2835XX160K679N1-245000×10×1.2mm8LEDs/50mmDC24V0.6A/m14.4W/m15.84W>60mm2oz>802700K/3000K/4000K/5000K/6000K1693/1797/1889/1889/1797118/125/131/131/125E
LD-2835XX192K683N1-245000×10×1.2mm8LEDs/41.66mmDC24V0.8A/m19.2W/m21.12W>60mm2oz>802700K/3000K/4000K/5000K/6000K2822/2995/3149/3149/2995147/156/164/164/156D
LD-2835XX192K683N1-245000×10×1.2mm8LEDs/41.66mmDC24V0.8A/m19.2W/m21.12W>60mm2oz>902700K/3000K/4000K/5000K/6000K2258/2396/2519/2519/2396118/125/131/131/125E

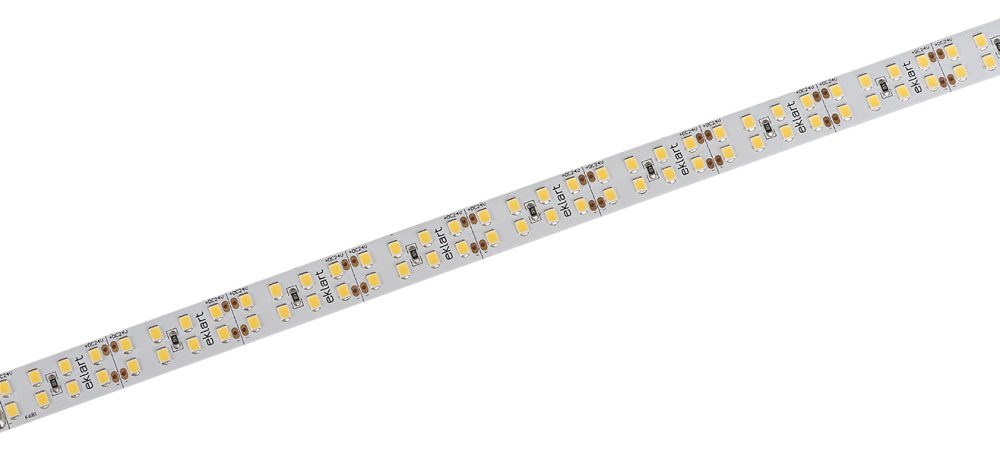

LD-2835XX256K681N1-245000×10×1.2mm8LEDs/31.25mmDC24V1.67A/m40.0W/m44.0W>60mm3oz>802700K/3000K/4000K/5000K/6000K5600/5880/6200/6200/5880140/147/155/155/147D
LD-2835XX256K681N1-245000×10×1.2mm8LEDs/31.25mmDC24V1.67A/m40.0W/m44.0W>60mm3oz>802700K/3000K/4000K/5000K/6000K4480/4704/4960/4960/4704112/118/124/124/118E
LD-2835XX90K791N1-245000×10×1.2mm9LEDs/100mmDC24V0.3A/m7.2W/m7.92W>60mm2oz>802700K/3000K/4000K/5000K/6000K1231/1303/1368/1368/1303171/181/190/190/181C
LD-2835XX90K791N1-245000×10×1.2mm9LEDs/100mmDC24V0.3A/m7.2W/m7.92W>60mm2oz>902700K/3000K/4000K/5000K/6000K985/1043/1094/1094/1043137/145/152/152/145D
LD-2835XX180K792N1-245000×10×1.2mm9LEDs/50mmDC24V0.6A/m14.4W/m15.84W>60mm2oz>802700K/3000K/4000K/5000K/6000K2462/2606/2736/2736/2606171/181/190/190/181C
LD-2835XX180K792N1-245000×10×1.2mm9LEDs/50mmDC24V0.6A/m14.4W/m15.84W>60mm2oz>902700K/3000K/4000K/5000K/6000K1970/2085/2189/2189/2085137/145/152/152/145D

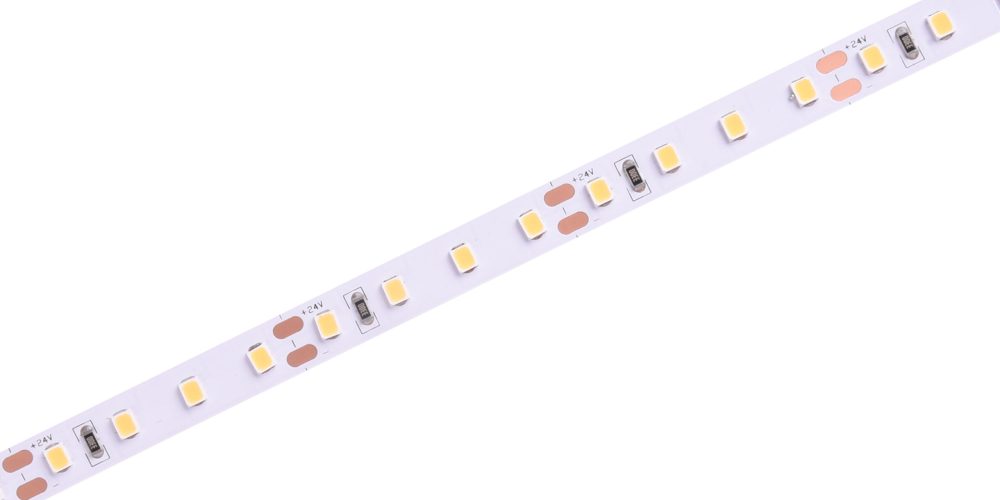

LD-2835XX104K1165N1-245000×8×1.2mm4LEDs/50mmDC24V0.2A/m4.8W/m5.3W>60mm2oz>802700K/3000K/4000K/5000K/6000K798/843/887/869/852160/169/177/174/170C
LD-2835XX104K1165N1-245000×8×1.2mm4LEDs/50mmDC24V0.2A/m4.8W/m5.3W>60mm2oz>902700K/3000K/4000K/5000K/6000K713/752/792/776/760143/150/158/155/152D
LD-2835XX160K1118N1-245000×8×1.2mm4LEDs/25mmDC24V0.3A/m7.2W/m8W>60mm2oz>802700K/3000K/4000K/5000K/6000K1111/1173/1234/1210/1185161/168/176/173/169C
LD-2835XX160K1118N1-245000×8×1.2mm4LEDs/25mmDC24V0.3A/m7.2W/m8W>60mm2oz>8902700K/3000K/4000K/5000K/6000K992/1047/1102/1080/1058142/150/157/154/151D
LD-2835XX200K1166N1-245000×8×1.2mm4LEDs/20mmDC24V0.4A/m10W/m11W>60mm2oz>802700K/3000K/4000K/5000K/6000K1531/1616/1701/1667/1633153/162/170/167/163C
LD-2835XX200K1166N1-245000×8×1.2mm4LEDs/20mmDC24V0.4A/m10W/m11W>60mm2oz>902700K/3000K/4000K/5000K/6000K1367/1443/1519/1489/1458137/144/152/149/146D
