Features
Product Features
- High brightness , high quality SPI / Digital / Magic LED Strip , Addressable , full color , programmable.
- High Quality 2835 and 5050 SMD LED.
- Support for multiple controllers.
- Widely applied in decoration lighting projects .
- Waterproof option: IP20, IP65, IP67.
- Warranty:3 years.
Dimensions

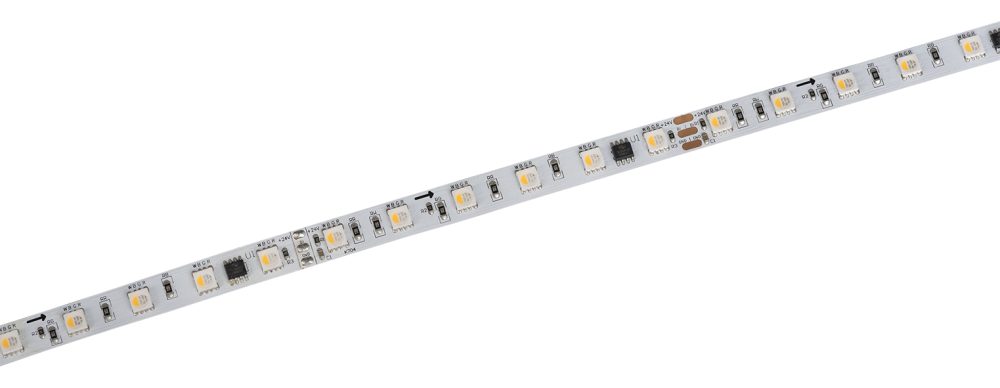

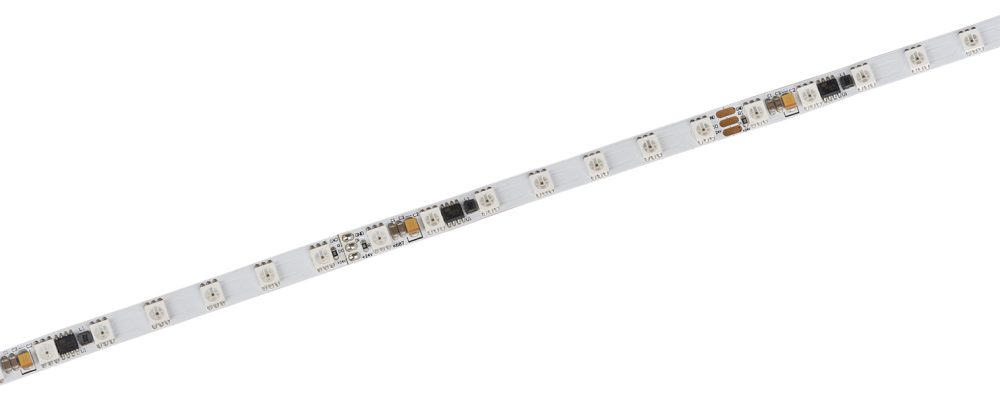

K704 K687

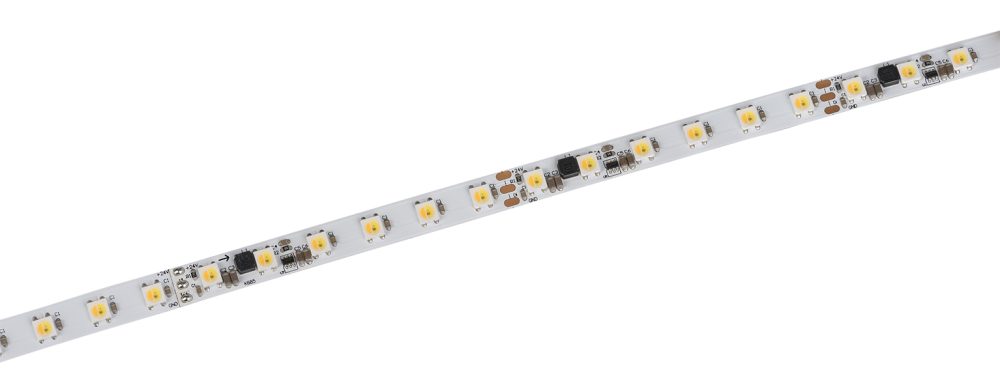

K685 K272
K265
Applications
Packaging
| Item No. | Size | Cutting Unit | Input Voltage | Input Current | Typ-power | Max. Power | Bend Diameter | Copper foil | CRI | CCT | LM/m | LM/W | Efficiency Class | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LD-5050RGB60K265N1-12 | 5000×10×1.5mm | 3LEDs/50mm | DC12V | 1.2A/m | 14.4W/m | 15.84W | >60mm | 2oz | / | RGB | / | / | / | |
| LD-5050RGB60K272N1-24 | 5000×10×1.5mm | 6LEDs/100mm | DC24V | 0.6A/m | 14.4W/m | 15.84W | >60mm | 2oz | / | RGB | / | / | / | |
| LD-5050CCT72K685N1-24 | 5000×10×1.5mm | 6LEDs/83.3mm | DC24V | 1.2A/m | 14.4W/m | 15.84W | >60mm | 2oz | / | 1800K/3000K/6000K/Mix | 72/300/350/520 | / | / | |
| LD-5050RGB70K687N1-24 | 5000×8×1.5mm | 7LEDs/100mm | DC24V | 0.625A/m | 15W/m | 16.5W | >60mm | 2oz | / | RGB | / | / | / | |
| LD-5050RGBW60K704N1-24 | 5000×10×1.5mm | 6LEDs/100mm | DC24V | 1.08A/m | 26W/m | 28.6W | >60mm | 2oz | / | RGBW | / | / | / | |
| LD_5060_RGB300_K2345_N_1_12 | 5000x8x1.8mm | 1LED/16.7mm | DC12V | 0.717A/m | 8.6W/m | 9.46W | >60mm | 2oz | / | / | / | / | / | |
| LD_5060_RGB400_K2345_N_1_12 | 5000x8x1.8mm | 1LED/12.5mm | DC24V | 0.5A/m | 12W/m | 13.2W | >60mm | 3oz | / | / | / | / | / |
