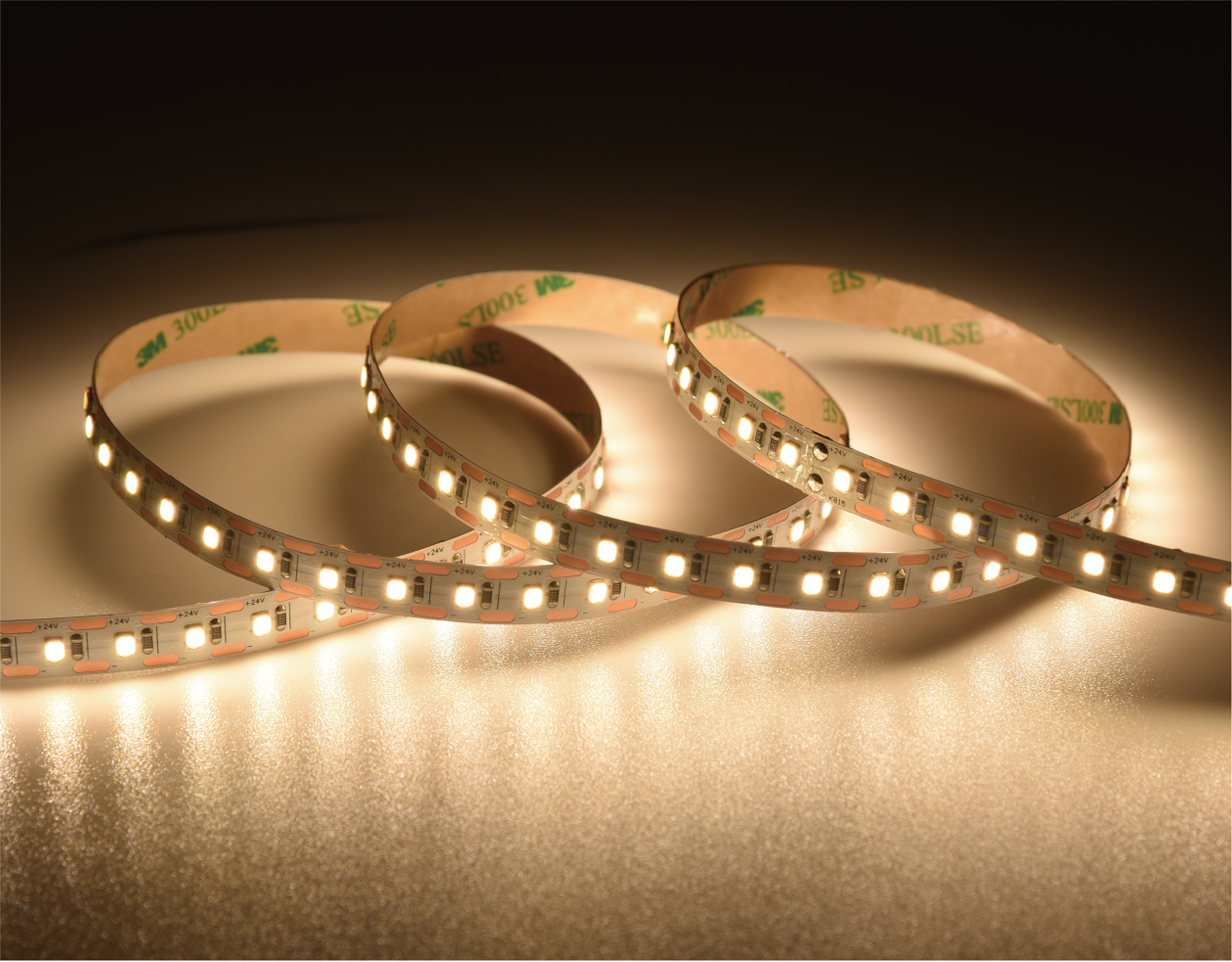

Short Cut Series

Product Features

  • Efficacy: CRI80+ up to 130lm/w.
  • Shorter cuttable interval
  • High Quality LM80 certified 2835 SMD.
  • Waterproof option: IP20, IP65, IP67, IP68.
  • Suitable for office, residential, retail and decorative lighting.
  • CRI80+,90+,95+optional.
  • Warranty:3 years.



Dimensions

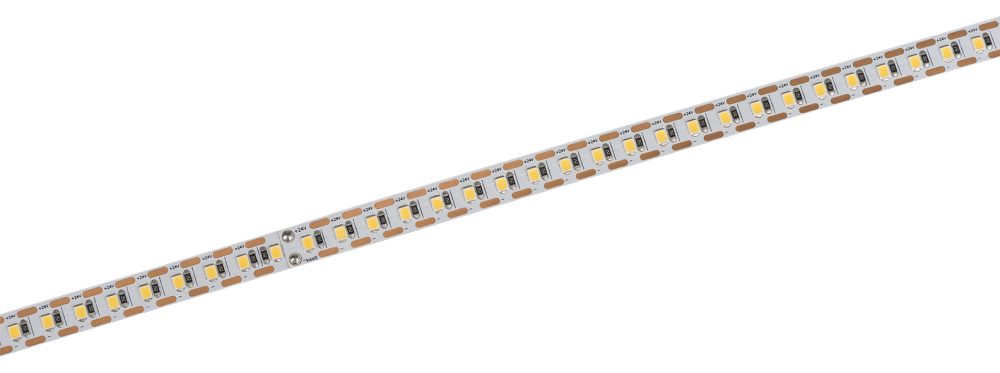

K663                                                                      K665

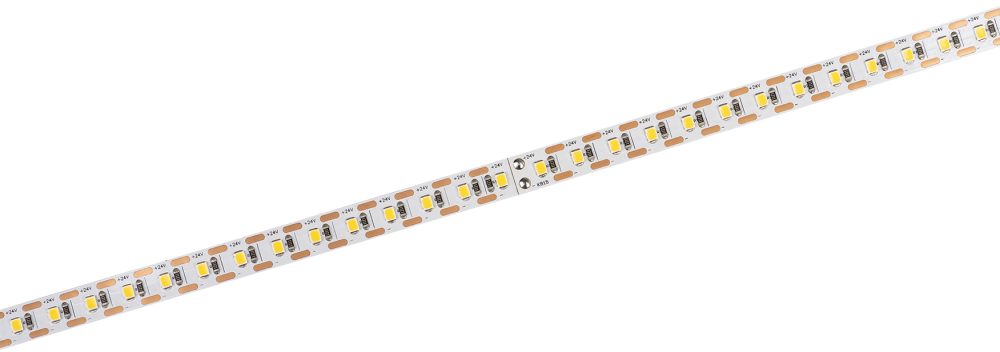

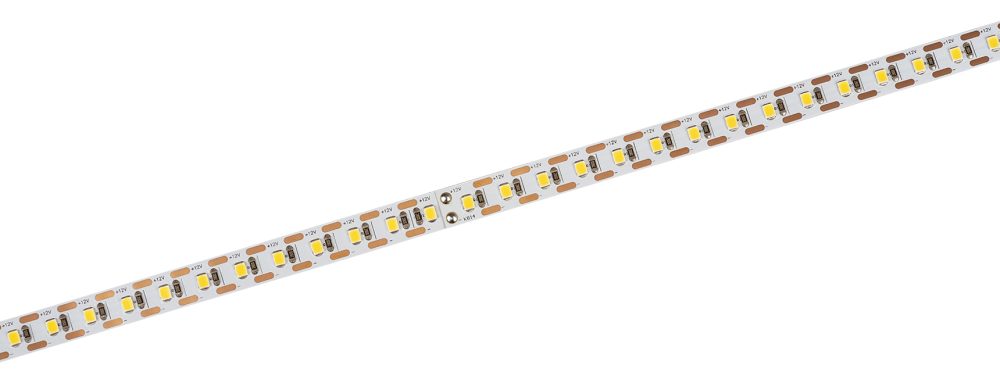

K814                                                                    K815

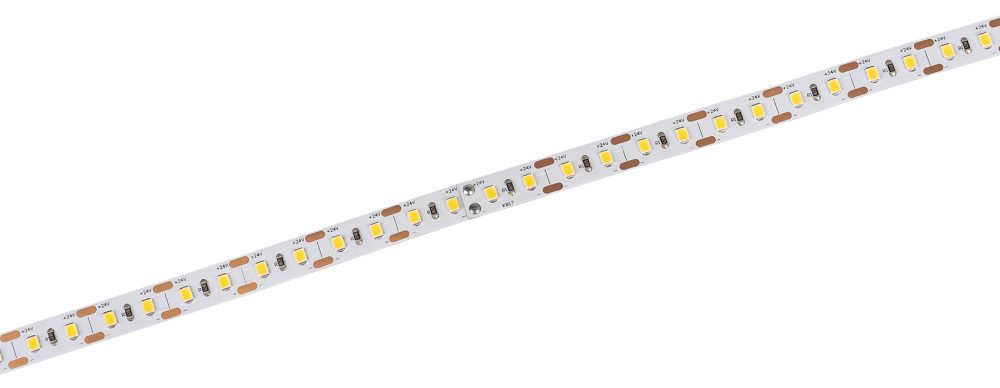

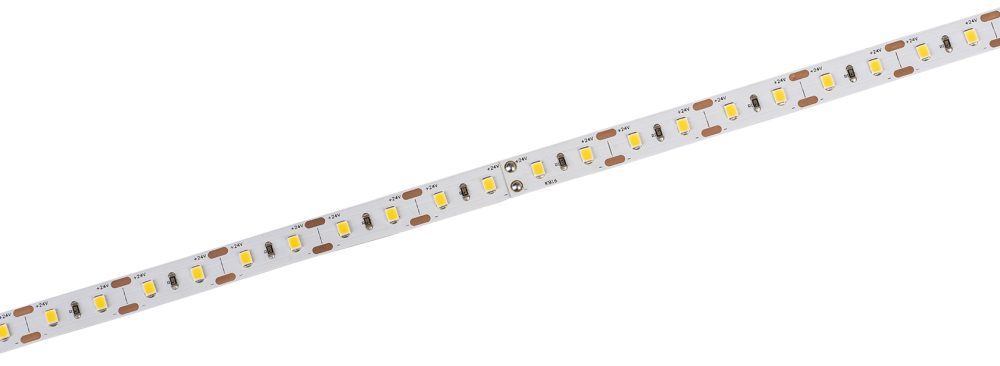

K816                                                                  K817

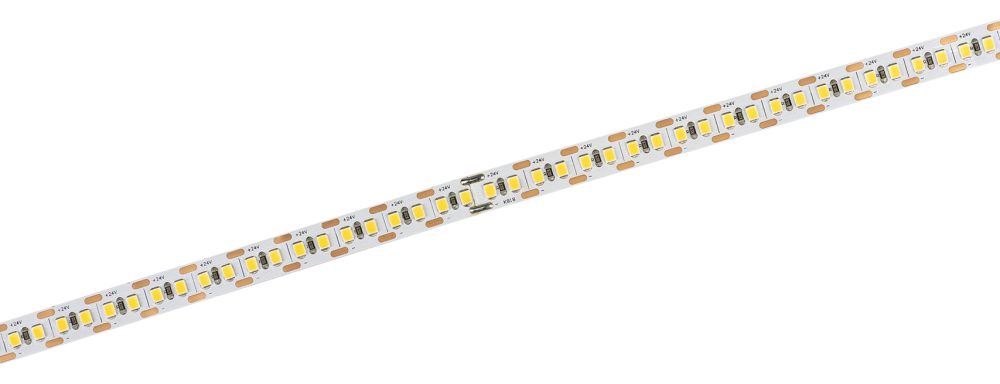

K818



Application



Packaging



Certifications

Item No. Size Cutting Unit Input Voltage Input Current Typ-power Max. Power Bend Diameter Copper foil CRI CCT LM/m LM/W Efficiency Class
LD-2835XX100K815N1-24 5000×10×1.2mm 1LEDs/10.0mm DC24V 0.6A/m 14.4W/m 15.84W >60mm 2oz >80 2700K/3000K/4000K/5000K/6000K 1440/1512/1584/1584/1512 100/105/110/110/105 F
LD-2835XX100K815N1-24 5000×10×1.2mm 1LEDs/10.0mm DC24V 0.6A/m 14.4W/m 15.84W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 1296/1361/1426/1426/1361 90/95/99/99/95 F
LD-2835XX100K815N1-24 5000×10×1.2mm 1LEDs/8.33mm DC24V 0.6A/m 14.4W/m 15.84W >60mm 2oz >80 2700K/3000K/4000K/5000K/6000K 1627/1714/1800/1800/1714 113/119/125/125/119 F
LD-2835XX100K815N1-24 5000×10×1.2mm 1LEDs/8.33mm DC24V 0.6A/m 14.4W/m 15.84W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 1464/1543/1620/1620/1543 102/107/113/113/107 F
LD-2835XX80K816N1-24 5000×10×1.2mm 2LEDs/25mm DC24V 0.4A/m 9.6W/m 10.56W >60mm 2oz >80 2700K/3000K/4000K/5000K/6000K 998/1056/1104/1104/1056 104/110/115/115/110 F
LD-2835XX80K816N1-24 5000×10×1.2mm 2LEDs/25mm DC24V 0.4A/m 9.6W/m 10.56W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 898/950/994/994/950 94/99/104/104/99 F
LD-2835XX100K817N1-24 5000×10×1.2mm 2LEDs/20mm DC24V 0.6A/m 14.4W/m 15.84W >60mm 2oz >80 2700K/3000K/4000K/5000K/6000K 1440/1512/1584/1584/1512 100/105/110/110/105 F
LD-2835XX100K817N1-24 5000×10×1.2mm 2LEDs/20mm DC24V 0.6A/m 14.4W/m 15.84W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 1296/1361/1426/1426/1361 90/95/99/99/95 F
LD-2835XX100K814N1-12 5000×10×1.2mm 1LEDs/10mm DC12V 1.2A/m 14.4W/m 15.84W >60mm 2oz >80 2700K/3000K/4000K/5000K/6000K 1366/1440/1512/1512/1440 95/100/105/105/100 F
LD-2835XX100K814N1-12 5000×10×1.2mm 1LEDs/10mm DC12V 1.2A/m 14.4W/m 15.84W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 1231/1296/1361/1361/1296 86/90/95/95/90 F
LD-2835XX120K663N1-12 5000×8×1.2mm 1LEDs/8.33mm DC12V 1.2A/m 14.4W/m 15.84W >60mm 2oz >80 2700K/3000K/4000K/5000K/6000K 1627/1714/1800/1800/1714 113/119/125/125/119 F
LD-2835XX120K663N1-12 5000×8×1.2mm 1LEDs/8.33mm DC12V 1.2A/m 14.4W/m 15.84W >60mm 2oz >90 2700K/3000K/4000K/5000K/6000K 1464/1543/1620/1620/1543 102/107/113/113/107 F
