RGB Series

Features

Product Features

  • RGB, RGBW and RGBCCT strip have a variety of color variations.
  • Support for multiple controllers.
  • High Quality 2835 and 5050 SMD with LM80 certified.
  • Support for multiple controllers.
  • Widely applied in decoration lighting projects .
  • Waterproof option: IP20, IP65, IP67.
  • Warranty:3 years.



Dimensions

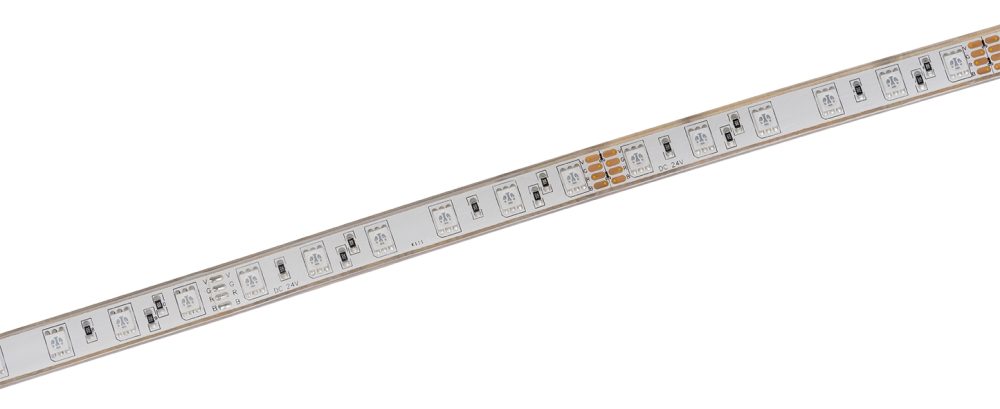

K111                                                                         K226

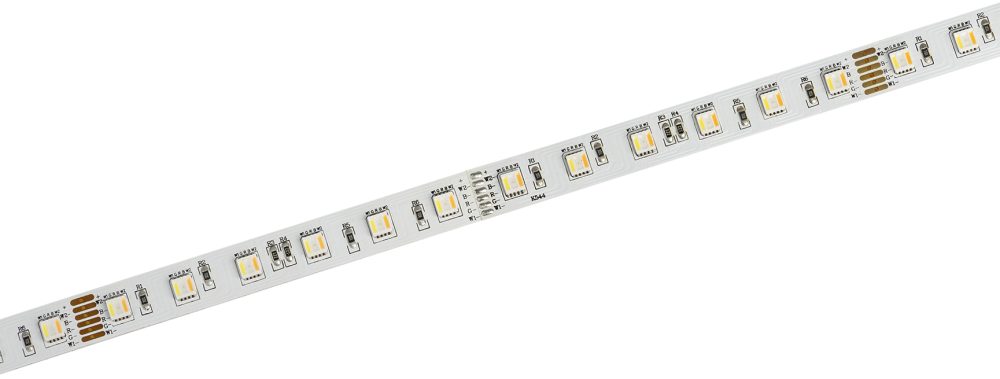

K536                                                                       K544

K624                                                                      K684

K756                                                                      K757

For more dimensions, please feel free to contact us.



Application



Packaging



Certifications



Item No. Size Cutting Unit Input Voltage Input Current Typ-power Max. Power Bend Diameter Copper foil CRI CCT

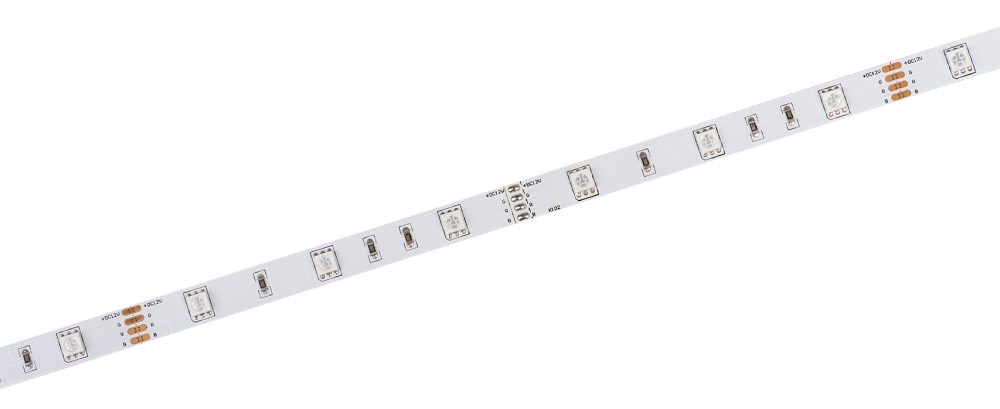

LD-5050RGB30K102N1-12 5000x10x2.1mm 3LEDs/100mm DC12V 0.6A/m 7.2W/m 7.92W >60mm 2oz – RGB

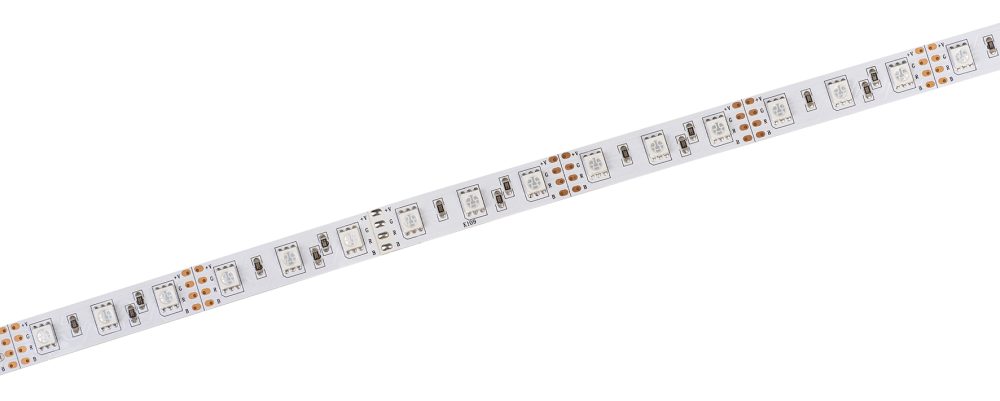

LD-5050RGB60K109N1-12 5000x12x2.1mm 3LEDs/50mm DC12V 1.2A/m 14.4W/m 15.84W >60mm 2oz – RGB
LD-5050RGB60K111N1-24 5000x10x2.1mm 6LEDs/100mm DC24V 0.6A/m 14.4W/m 15.84W >60mm 2oz – RGB
LD-5050RGB120K833N1-24 5000x10x2.1mm 6LEDs/50mm DC24V 0.6A/m 14.4W/m 15.84W >60mm 3oz – RGB
LD-5050RGB60K808N1-24 5000x8x1.4mm 6LEDs/100mm DC24V 0.3A/m 7.2W/m 7.92W >60mm 2oz – RGB
LD-5050RGB96K757N1-12 5000x8x1.4mm 6LEDs/62.5mm DC12V 0.6A/m 14.4W/m 15.84W >60mm 2oz – RGB
LD-5050RGB120K756N1-24 5000x10x2.1mm 6LEDs/50mm DC24V 0.6A/m 14.4W/m 15.84W >60mm 2oz – RGB
LD-5050RGB962835XX96K684N1-24 5000x10x2.1mm 12LEDs/62.5mm DC24V 0.8A/m 19.2W/m 21.12W >60mm 2oz – RGBW
LD-5050RGBW60K536N1-24 5000x12x2.1mm 12LEDs/100mm DC24V 0.8A/m 19.2W/m 21.12W >60mm 2oz – RGBW
LD-5050RGB482835XX48K226N1-24 5000x12x2.1mm 12LEDs/125mm DC24V 0.64A/m 15.34W/m 16.87W >60mm 2oz – RGBW
LD-5050RGBCCT60K544N1-24 5000x13x2.1mm 6LEDs/100mm DC24V 1.0A/m 24W/m 26.4W >60mm 2oz – RGBCCT
LD-5050RGB48CCT48K624N1-24 5000x15x2.1mm 12LEDs/125mm DC24V 0.6A/m 14.4W/m 15.84W >60mm 2oz – RGBCCT
