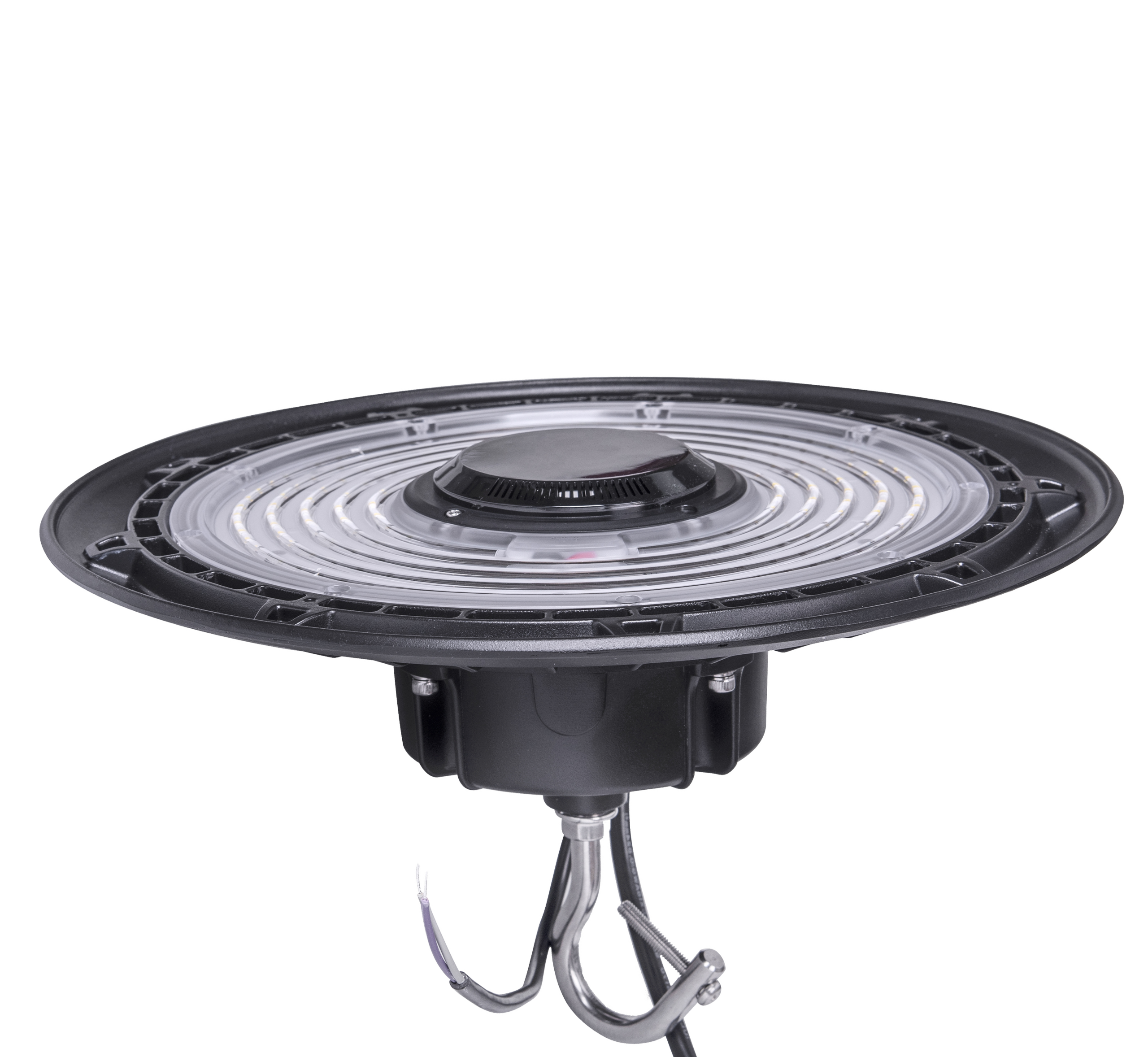

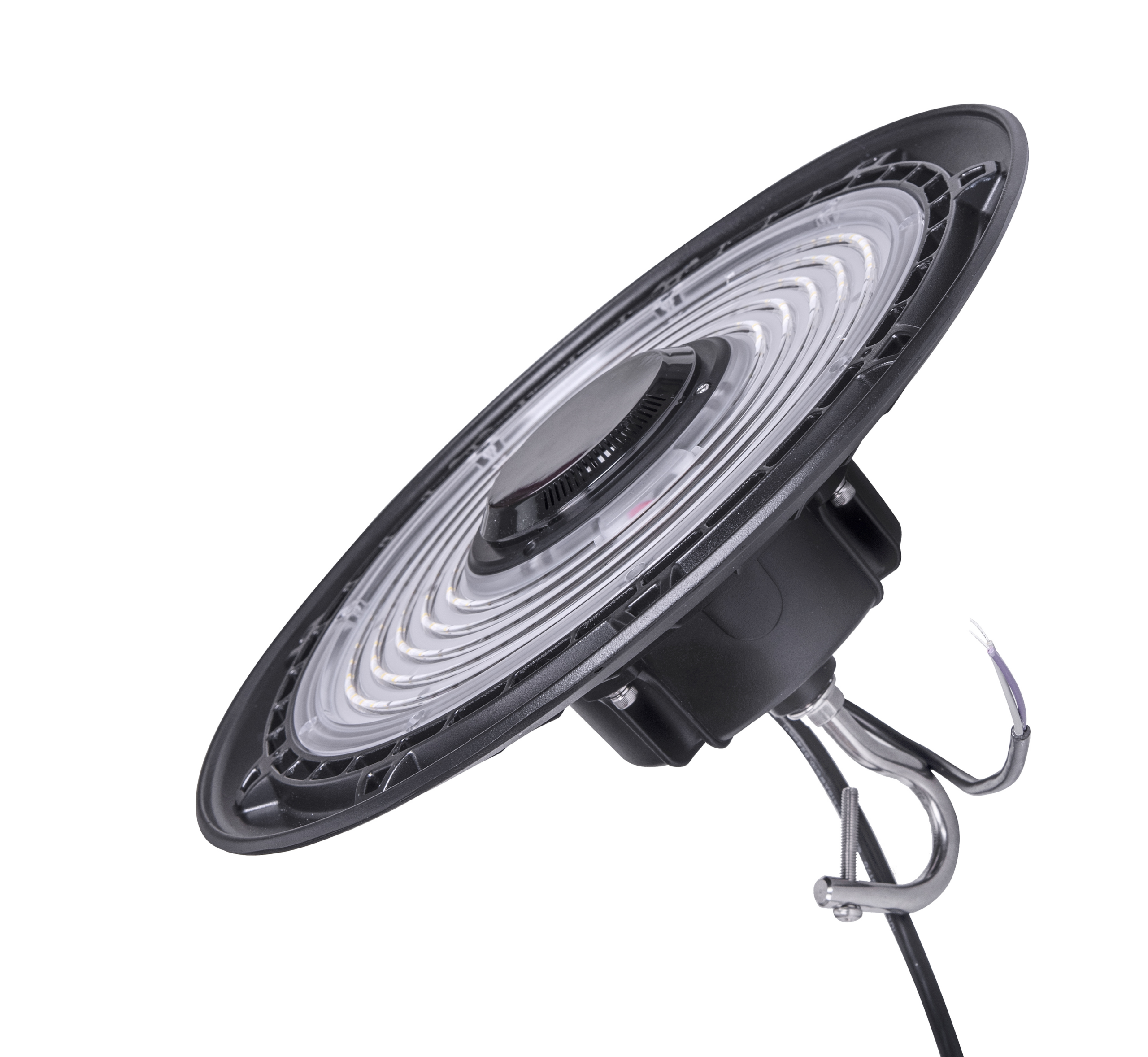

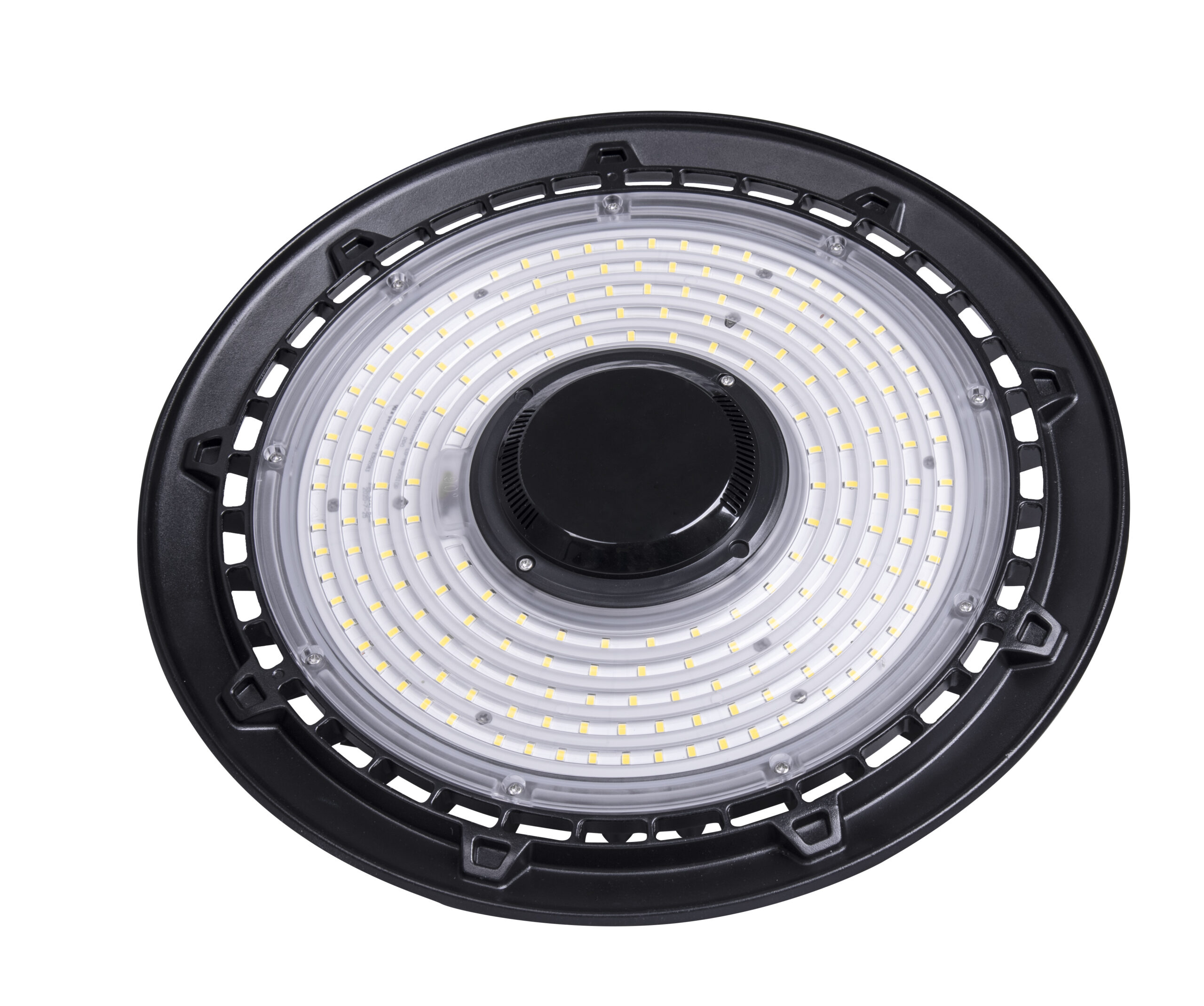

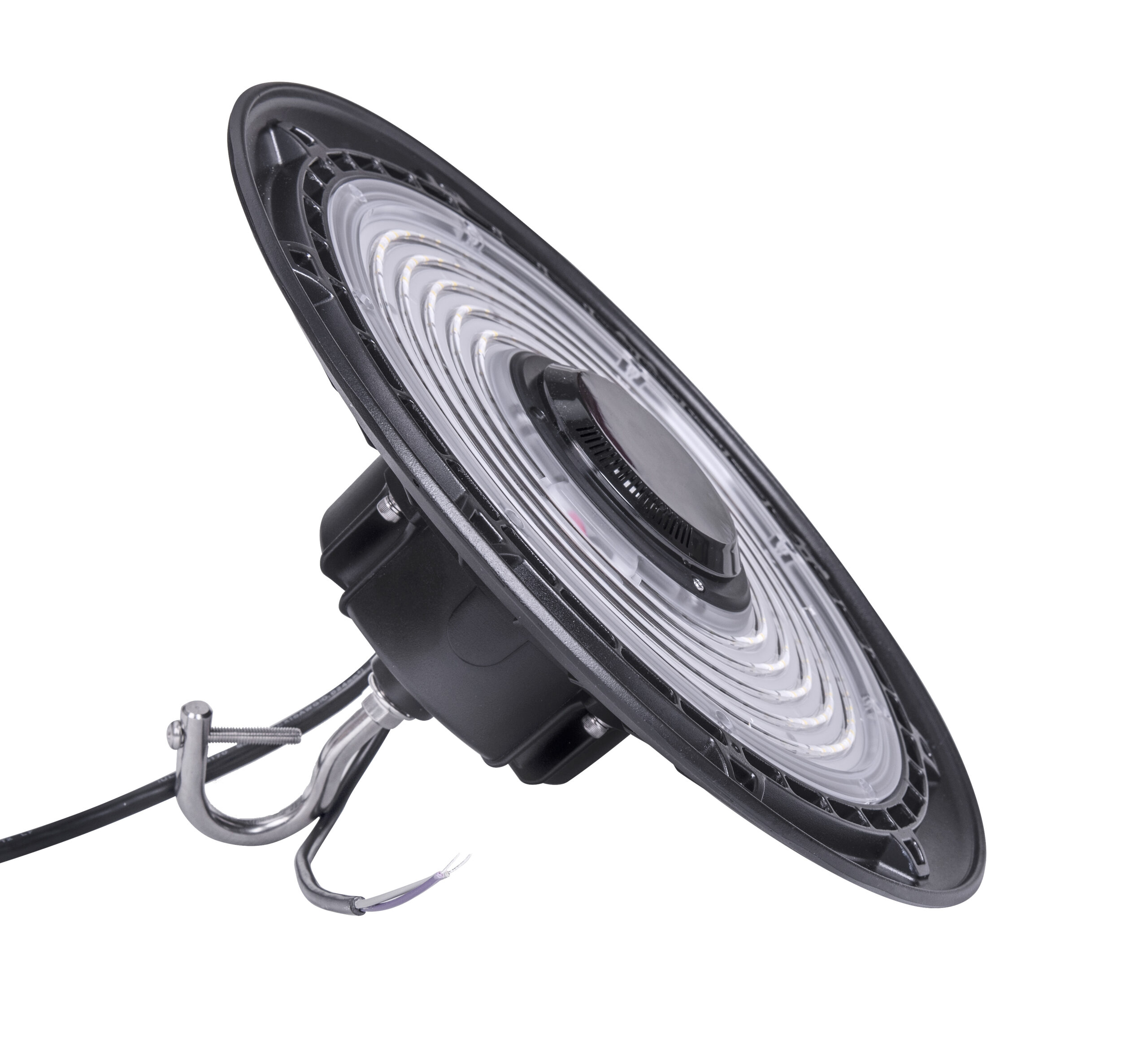

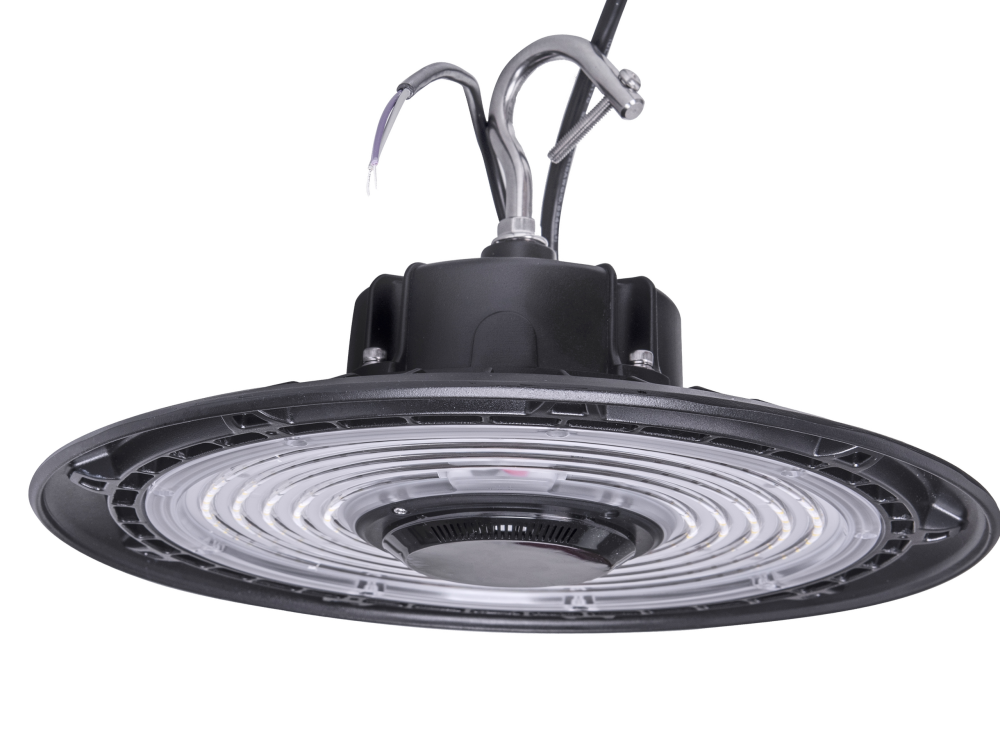

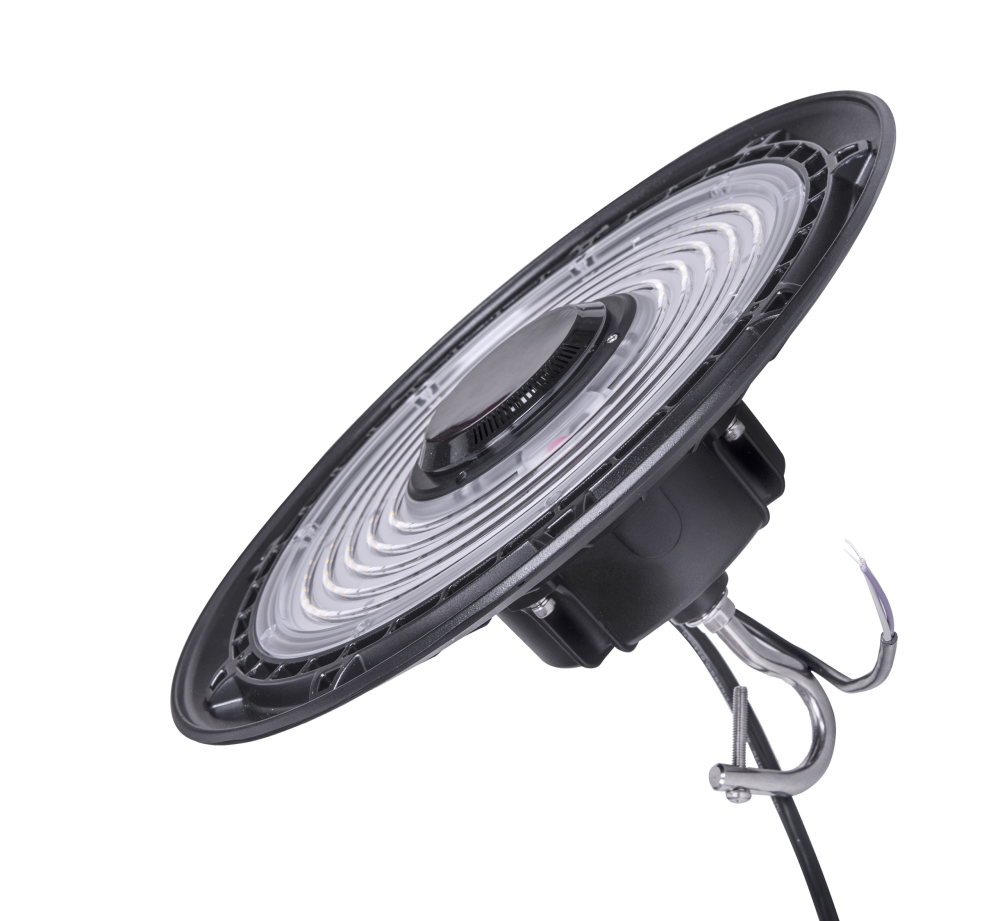

J Series LED UFO High Bay

Intelligent design,motion sensor,PIR sensor and daylight sensor pluggable.

Features

Features

  • Die-casting ADC12 aluminum with high quality powder coating finish
  • 3 wattage selectable,80/100/150W and 160/200/240W
  • 3 CCT selectable,3500/4000/5000K
  • High efficiency 140/160lm/w
  • Intelligent design,motion sensor,PIR sensor and daylight sensor pluggable
  • Beam angle 30/60/90/120 °with fresnel lens
  • Available with emergency back-up battery,emergency power 20/30W

Light Distribution Curve

Dimension


Application


1.Dual Selectable

Model No. Power Efficiency Input CCT CRI Beam Angle IP Ambient Temperature(Ta) Dimension(C*B*A)
LD-HB-J80/100/150-CX-XX 80/100/150W 140/160lm/w AC120-277/120-347 3500&4000&5000 changeable 70/80 30/60/90/120° 65 -20°C – +40°C Φ345*H109mm
LD-HB-J160/200/240-CX-XX 160/200/240W 140/160lm/w AC120-277/120-347 3500&4000&5000 changeable 70/80 30/60/90/120° 65 -20°C – +40°C Φ398*H119mm

2.Wattage Selectable

Model No. Power Efficiency Input CCT CRI Beam Angle IP Ambient Temperature(Ta) Dimension(C*B*A)
LD-HB-J80/100/150-CX-XX 80/100/150W 140/160lm/w AC120-277/120-347 3500/4000/5000 70/80 30/60/90/120° 65 -20°C – +40°C Φ345*H109mm
LD-HB-J160/200/240-CX-XX 160/200/240W 140/160lm/w AC120-277/120-347 3500/4000/5000 70/80 30/60/90/120° 65 -20°C – +40°C Φ398*H119mm

3.Standard

Model No. Power Efficiency Input CCT CRI Beam Angle IP Ambient Temperature(Ta) Dimension(C*B*A)
LD-HB-J100-XX-YY 100W 140/180lm/w AC120-277/120-347 2700-6500 70/80 30/60/90/120° 65 -20°C – +40°C Φ282*H109mm
LD-HB-J150-XX-YY 150W 140/180lm/w AC120-277/120-347 2700-6500 70/80 30/60/90/120° 65 -20°C – +40°C Φ345*H109mm
LD-HB-J200-XX-YY 200W 140/180lm/w AC120-277/120-347 2700-6500 70/80 30/60/90/120° 65 -20°C – +40°C Φ398*H119mm
LD-HB-J240-XX-YY 200W 140/180lm/w AC120-277/120-347 2700-6500 70/80 30/60/90/120° 65 -20°C – +40°C Φ398*H119mm
