Office Linear Light-Kyros Series
LEDIA new Kyros Series office linear light with innovative design and superior performance aims to provide a professional lighting solution for offices and relevant public scenarios. Various sizes and wattages, with 4 optional lens optics (PC/PMMA diffuser, Lens, Honeycomb & Grille), and multiple installation ways (Suspension, Surface-mounted, Recessed & Trimless) can meet different project demands. CCT is changeable to meet different lighting requests. The optics and LED module can be knocked down easily with a unique design. Various power supplies (On/Off, 0~10V Dimming, DALI Dimming) can be compatible with different systems. This linear light is perfect and widely applied for office, gallery, library, classroom etc.
Features
Slider Switch
Two Slide switches to adjust the Up & Down color temperature sepatatly.
Various Optics
PC/PMMA diffuser, Grille & Reflector, meet different light requirements.
3 CCT
3CCT changeable to create different ambiance
Aluminum Housing
Good heat dissipation, Long life-span for fixture
High CRI
Human-centric, CRI＞Ra90, good for eye protection.
Various Power Supply
On/off, 0-10V Dimming, DALI Dimming, compatible to different system
Multi Installation Way
Surface-mounted, recessed & Suspension, meet different scenarios
High Efficacy
High efficacy over 110lm/W, energy saving
Up & Down Light
Up & Down light to create comfortable environment
Linkable
Linkable up to 400W with multi-connectors

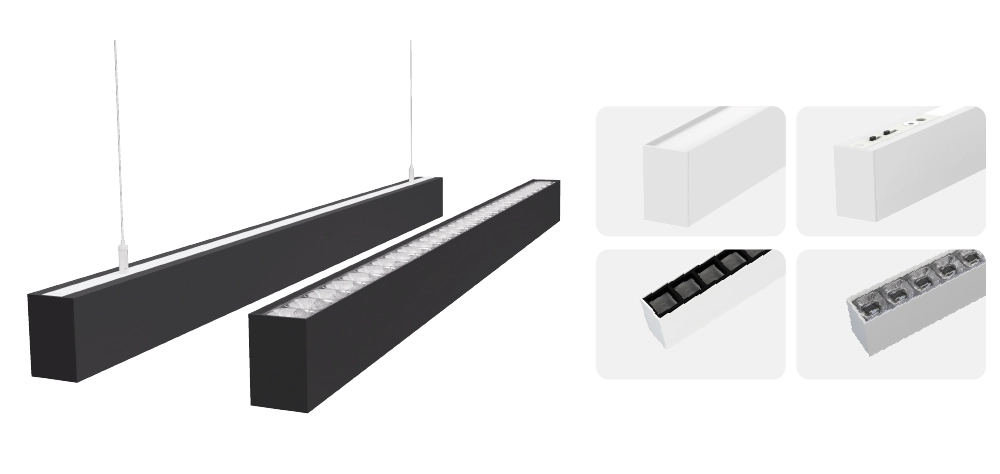

Detailed Product Picture

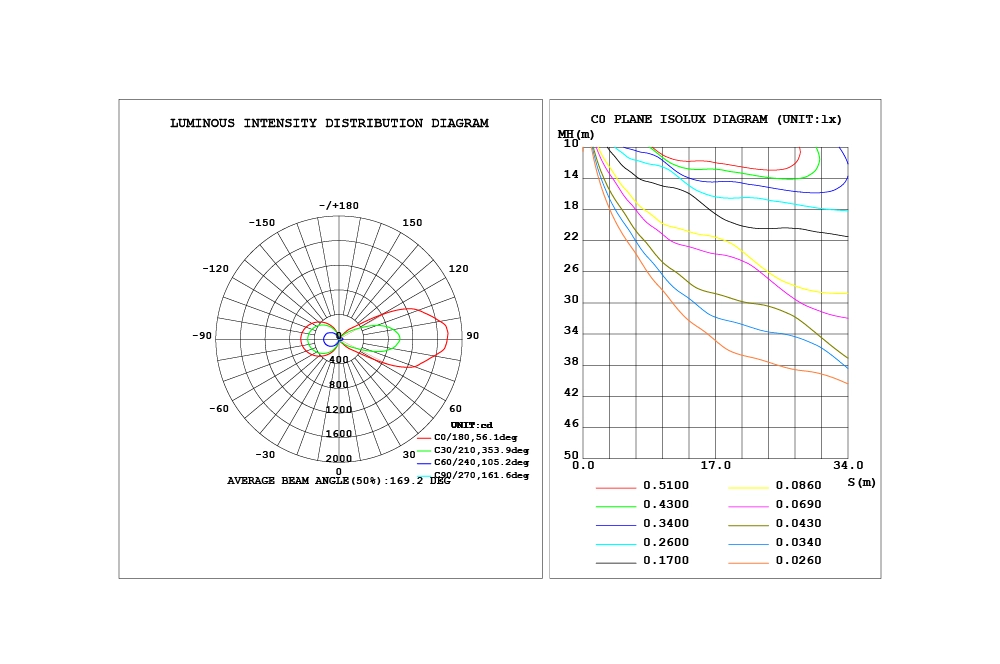

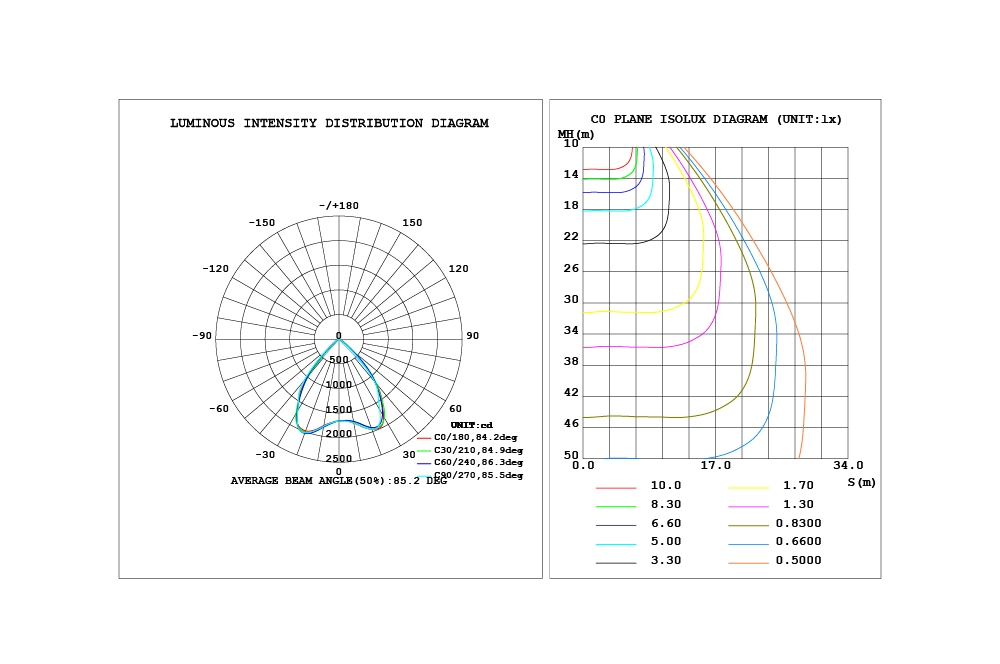

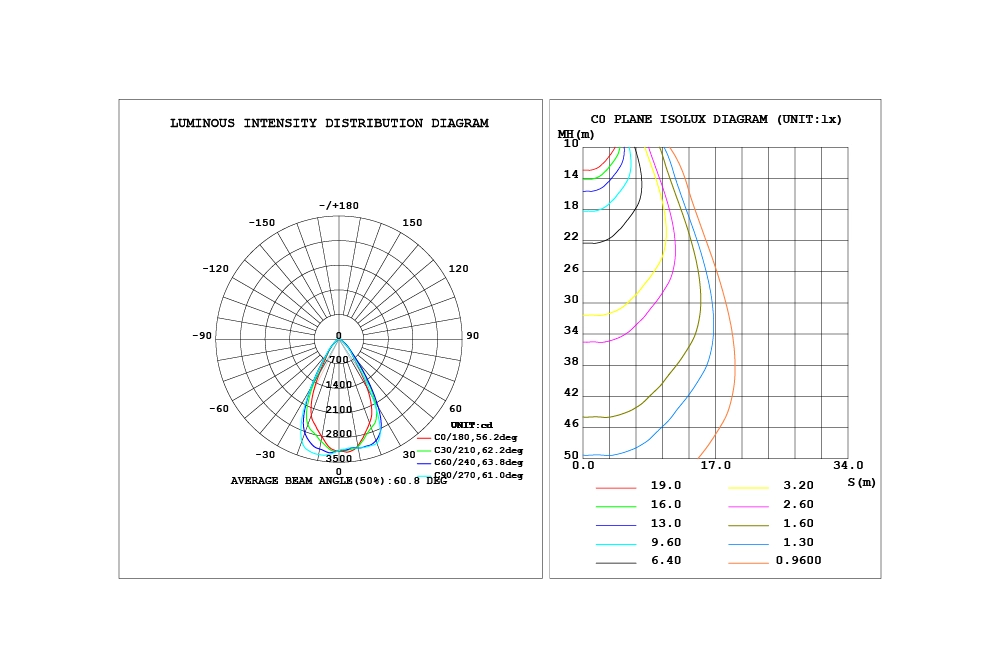

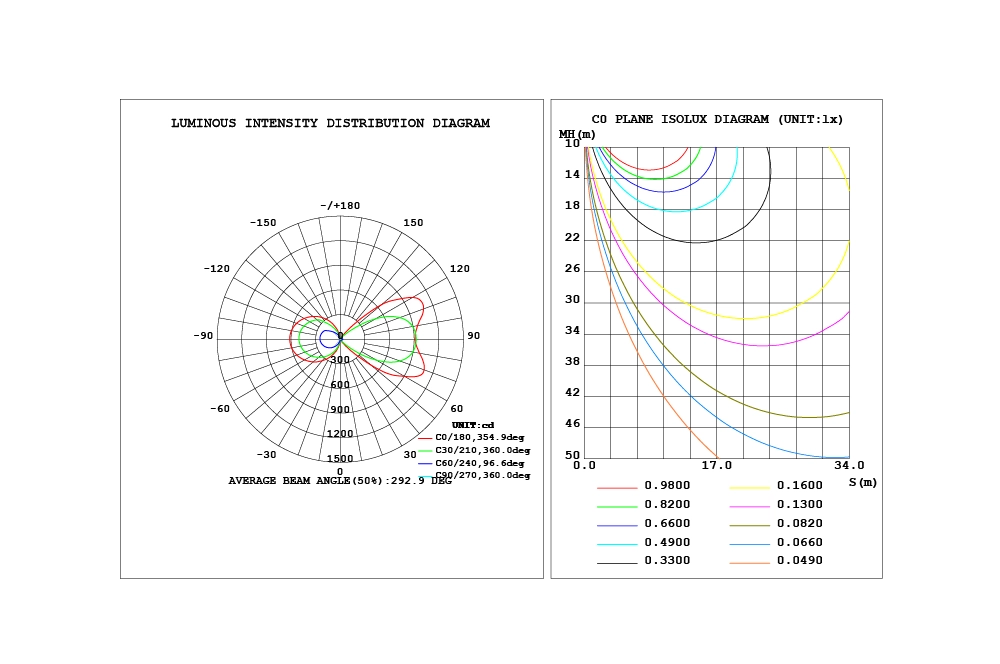

Photometric
Application
Certificates
| Model | Dimension (L*W*H) |
Wattage | CCT | CRI | Luminous Flux |
color |
|---|---|---|---|---|---|---|
| LDOL-K01-12-y-9n0-LD-z-xx | 1126*52*76mm | 30W | 3000K/4000K/5000K | ＞Ra90 | 3000lm | White/Black |
| LDOL-K01-15-y-9n0-LD-z-xx | 1406*52*76mm | 37.5W | 3000K/4000K/5000K | ＞Ra90 | 3750lm | White/Black |
| LDOL-K01-18-y-9n0-LD-z-xx | 1706*52*76mm | 45W | 3000K/4000K/5000K | ＞Ra90 | 4500lm | White/Black |
| LDOL-K01-24-y-9n0-LD-z-xx | 2248*52*76mm | 60W | 3000K/4000K/5000K | >Ra90 | 6000lm | White/Black |
| LDOL-K01-12-y-9n0-LU-z-xx | 1126*52*76mm | 30W | 3000K/4000K/5000K | >Ra90 | 3000lm | White/Black |
| LDOL-K01-15-y-9n0-LU-z-xx | 1406*52*76mm | 37.5W | 3000K/4000K/5000K | >Ra90 | 3750lm | White/Black |
| LDOL-K01-18-y-9n0-LU-z-xx | 1706*52*76mm | 45W | 3000K/4000K/5000K | >Ra90 | 4500lm | White/Black |
| LDOL-K01-24-y-9n0-LU-z-xx | 2248*52*76mm | 60W | 3000K/4000K/5000K | >Ra90 | 6000lm | White/Black |
| LDOL-K01-12-y-CCT-LD-z-xx | 1126*52*76mm | 30W | 3CCT, 3000K-5000K | >Ra90 | 3000lm | White/Black |
| LDOL-K01-15-y-CCT-LD-z-xx | 1406*52*76mm | 37.5W | 3CCT, 3000K-5000K | >Ra90 | 3750lm | White/Black |
| LDOL-K01-18-y-CCT-LD-z-xx | 1706*52*76mm | 45W | 3CCT, 3000K-5000K | >Ra90 | 4500lm | White/Black |
| LDOL-K01-24-y-CCT-LD-z-xx | 2248*52*76mm | 60W | 3CCT, 3000K-5000K | >Ra90 | 6000lm | White/Black |
| LDOL-K01-12-y-CCT-LU-z-xx | 1126*52*76mm | 30W | 3CCT, 3000K-5000K | >Ra90 | 3000lm | White/Black |
| LDOL-K01-15-y-CCT-LU-z-xx | 1406*52*76mm | 37.5W | 3CCT, 3000K-5000K | >Ra90 | 3750lm | White/Black |
| LDOL-K01-18-y-CCT-LU-z-xx | 1706*52*76mm | 45W | 3CCT, 3000K-5000K | >Ra90 | 4500lm | White/Black |
| LDOL-K01-24-y-CCT-LU-z-xx | 2248*52*76mm | 60W | 3CCT, 3000K-5000K | >Ra90 | 6000lm | White/Black |
