Office Linear Light-Orbit Series
LEDIA Orbit Series linear light with innovative design and superior performance aims to provide a professional lighting solution for residential and public scenarios. The main feature is the light tube can be rotated 360° to create different light affect; Unique design for a replaceable LED module can add more light ambient freely. Various sizes and wattages, multiple installation ways (Surface-mounted & suspension) can meet different project demands. 2-wire CCT technology can change the CCT to meet different light request. With different connectors, this linear light can be linked freely. Various power supply (On/Off, 0~10V Dimming, DALI Dimming) can be compatible with different systems. This linear light is perfect and widely applied for home, office, gallery, library, classroom etc.
Features
Slider Switch
Two Slide switches to adjust the Up & Down color temperature sepatatly.
Various Optics
PC/PMMA diffuser, Grille & Reflector, meet different light requirements.
3 CCT
3CCT changeable to create different ambiance
Aluminum Housing
Good heat dissipation, Long life-span for fixture
High CRI
Human-centric, CRI＞Ra90, good for eye protection.
Various Power Supply
On/off, 0-10V Dimming, DALI Dimming, compatible to different system
Multi Installation Way
Surface-mounted, recessed & Suspension, meet different scenarios
High Efficacy
High efficacy over 110lm/W, energy saving
Up & Down Light
Up & Down light to create comfortable environment

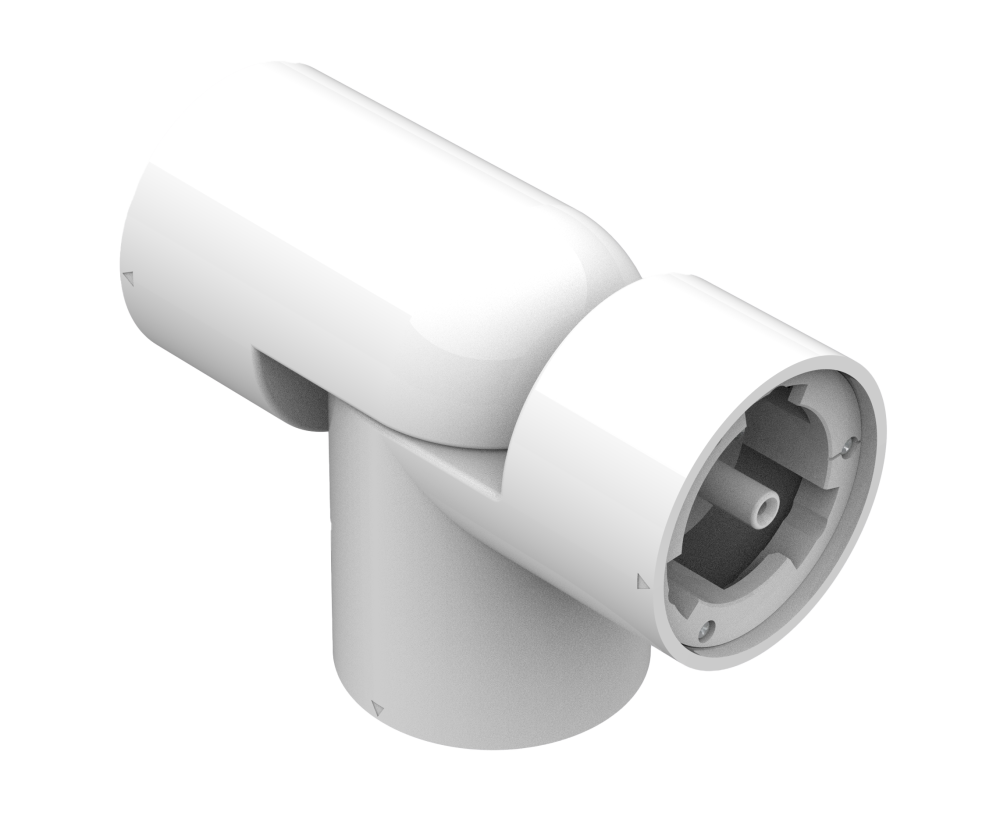

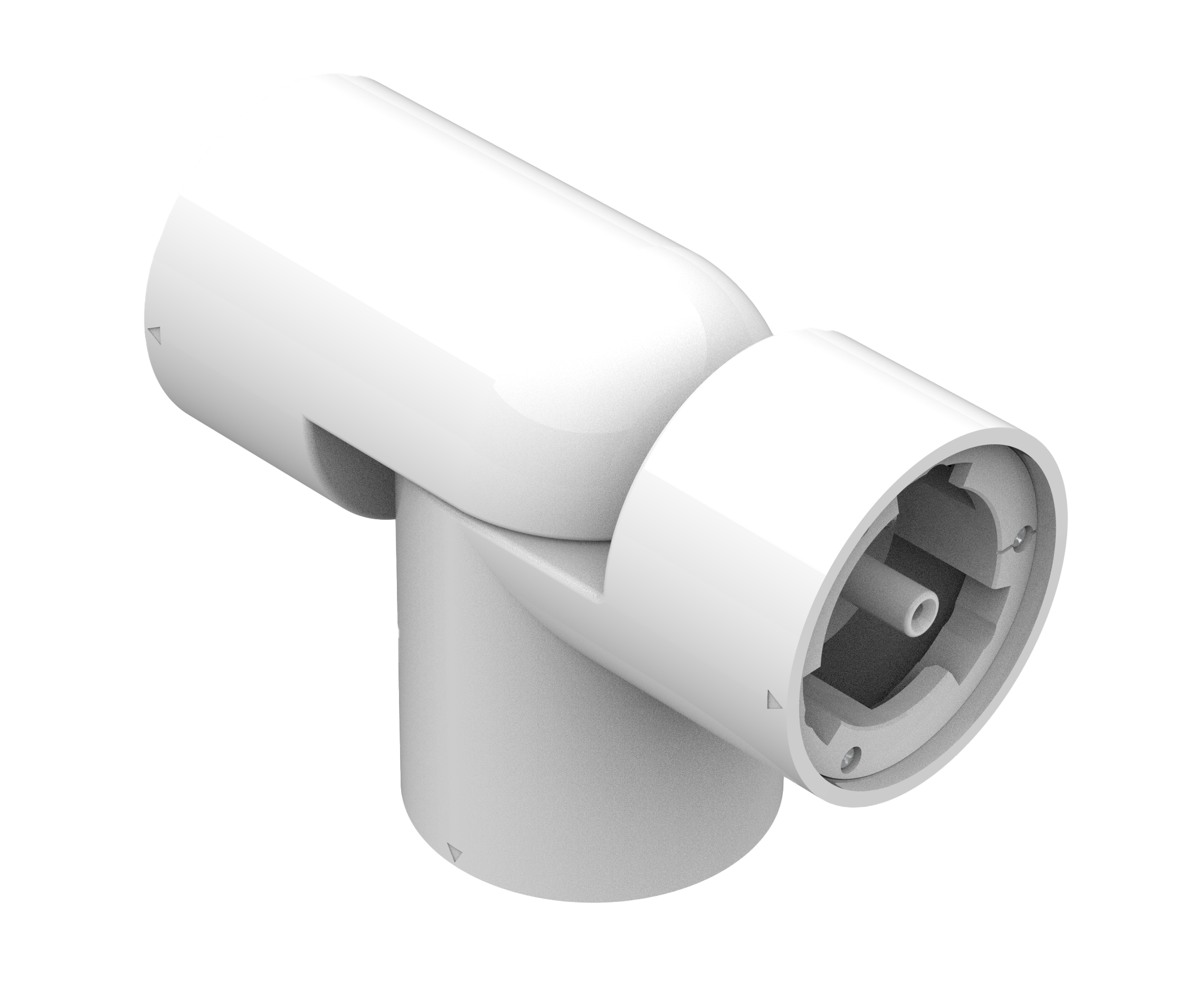

Linkable
Linkable up to 400W with multi-connectors

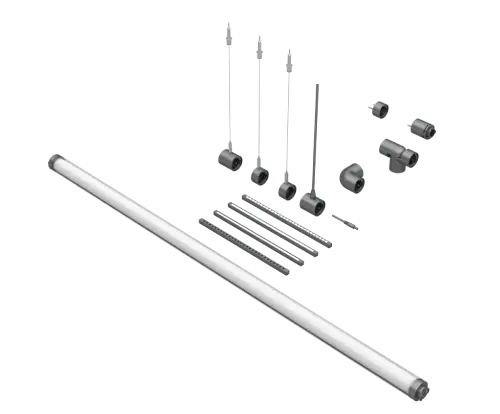

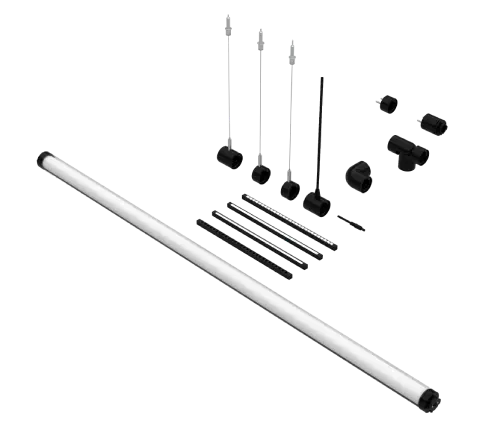

Detailed Prodcut Picture

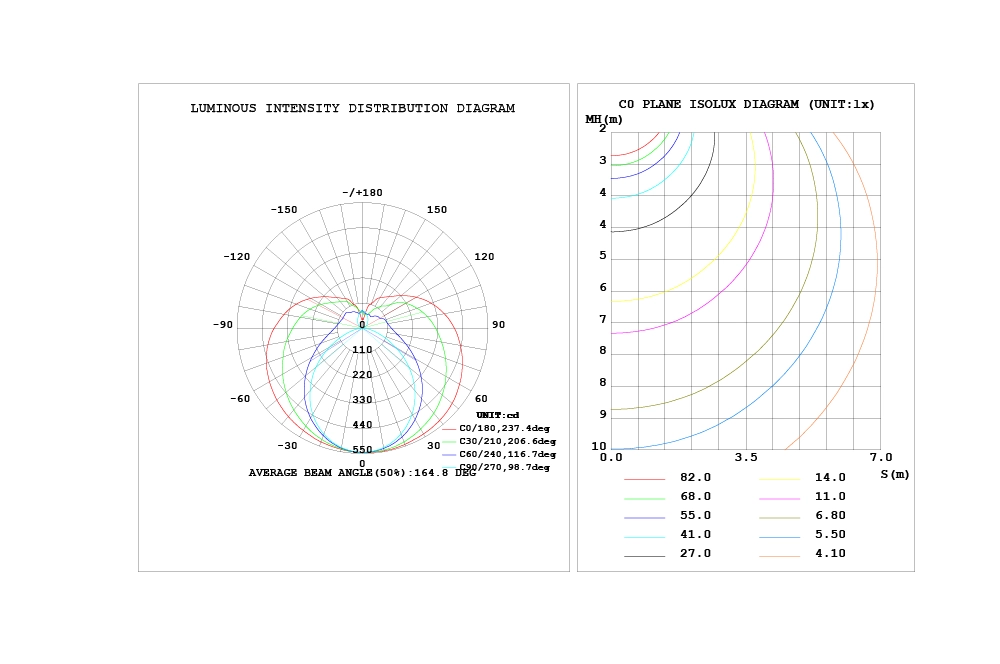

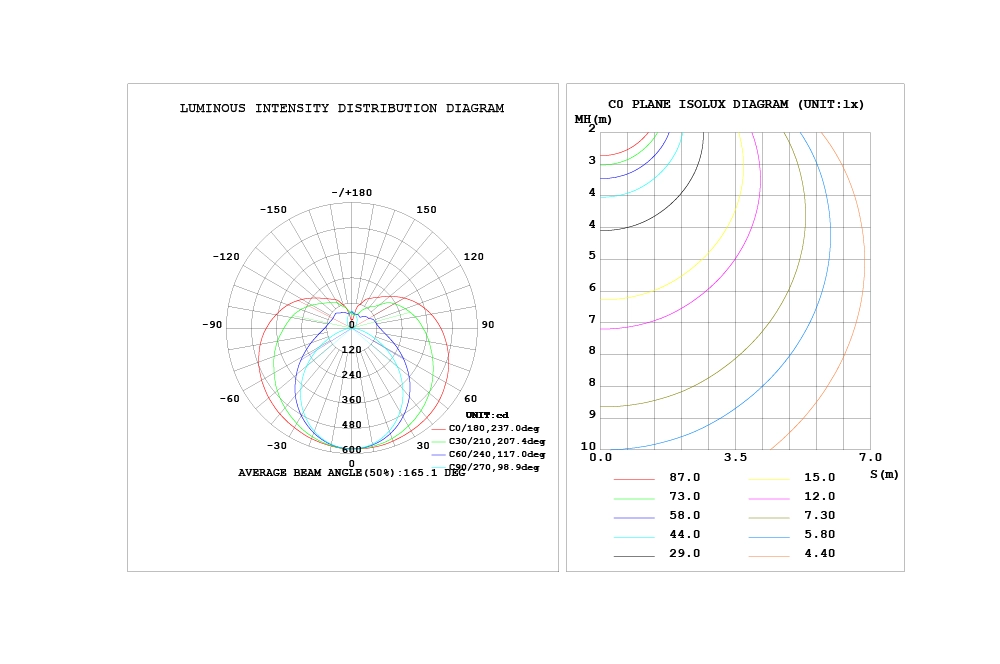

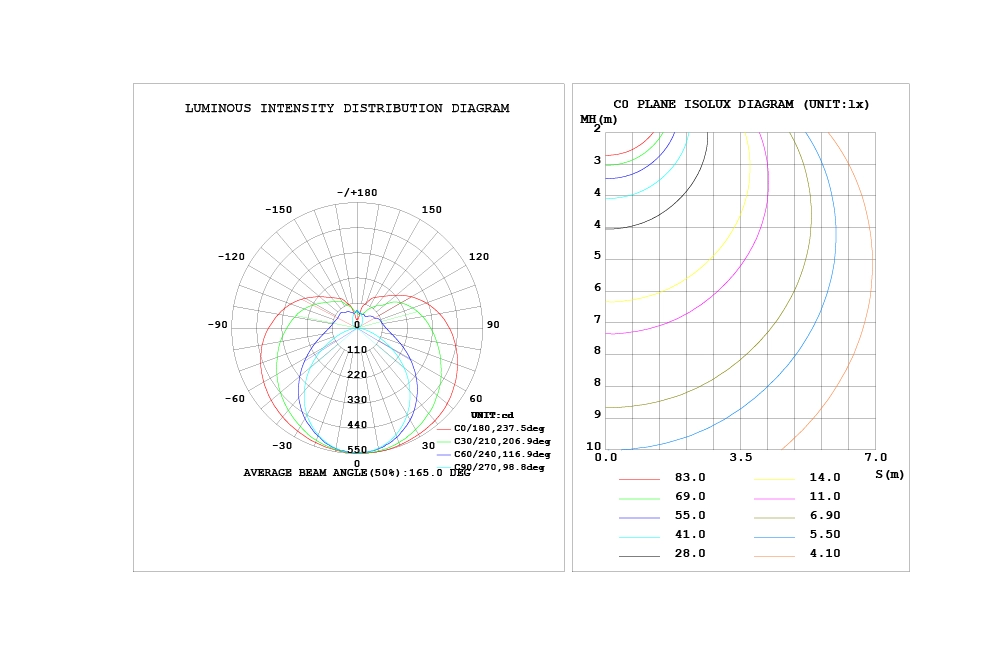

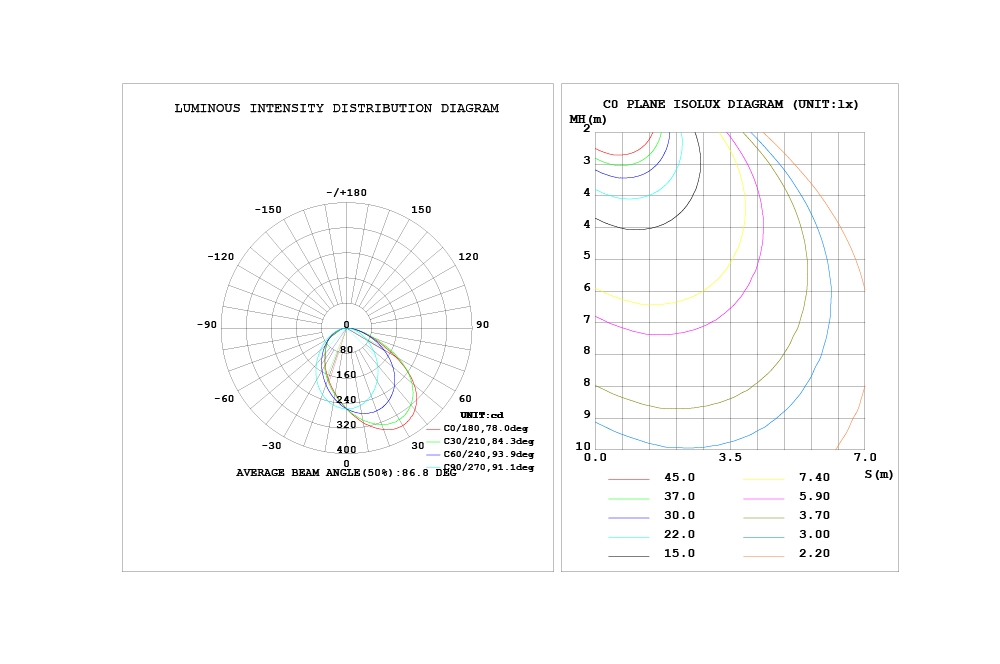

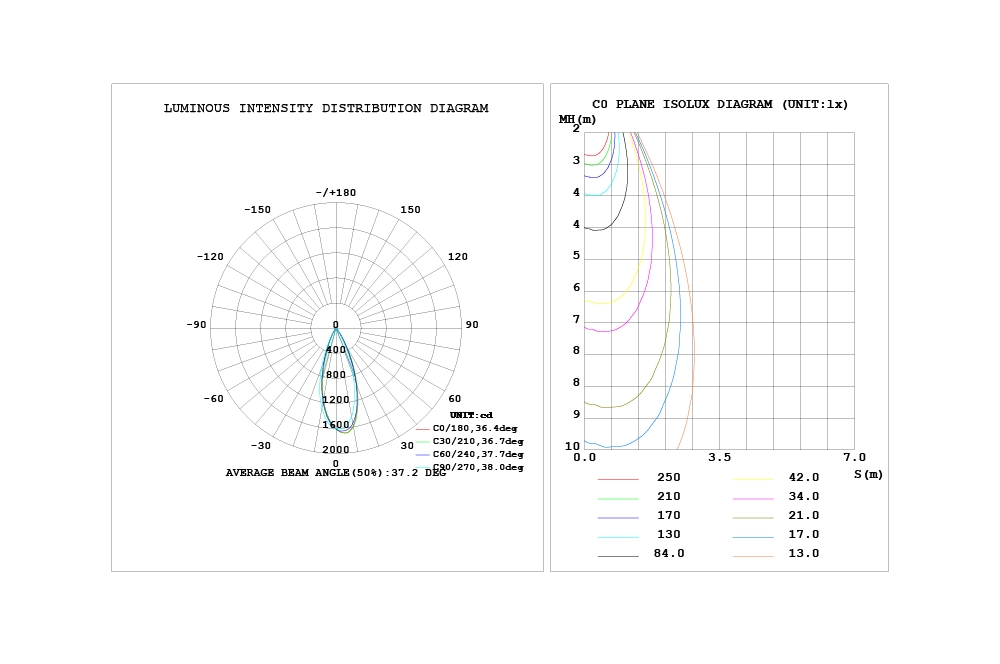

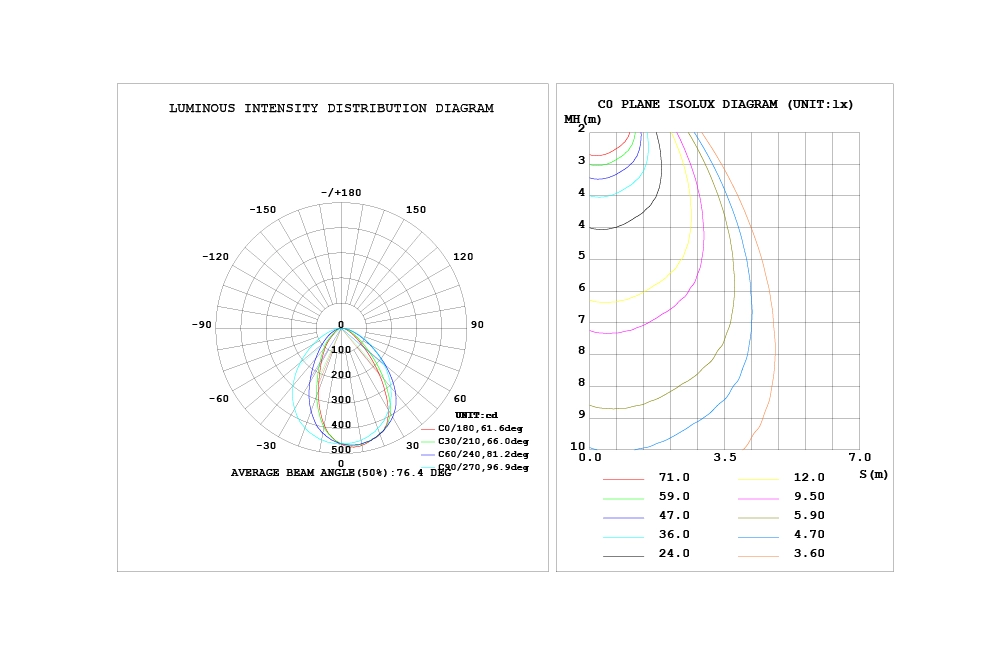

Photometric
Application
Certificates
| Model | Dimension (L*W*H) |
Wattage | CCT | CRI | Luminous Flux |
color |
|---|---|---|---|---|---|---|
| LDOL-O01-06-y-9n0-SD-z-PM | Φ45*600mm | 15W | 3000K/4000K/5000K | ＞Ra90 | 1500lm | White/Black/Silver |
| LDOL-O01-09-y-9n0-SD-z-PM | Φ45*900mm | 22.5W | 3000K/4000K/5000K | ＞Ra90 | 2250lm | White/Black/Silver |
| LDOL-O01-12-y-9n0-SD-z-PM | Φ45*1200mm | 30W | 3000K/4000K/5000K | ＞Ra90 | 3000lm | White/Black/Silver |
| LDOL-O01-15-y-9n0-SD-z-PM | Φ45*1500mm | 37.5W | 3000K/4000K/5000K | >Ra90 | 3750lm | White/Black/Silver |
| LDOL-O01-06-y-CCT-SD-z-PM | Φ45*600mm | 15W | 2CCT, 3000K-5000K | >Ra90 | 1500lm | White/Black/Silver |
| LDOL-O01-09-y-CCT-SD-z-PM | Φ45*900mm | 22.5W | 2CCT, 3000K-5000K | >Ra90 | 2250lm | White/Black/Silver |
| LDOL-O01-12-y-CCT-SD-z-PM | Φ45*1200mm | 30W | 2CCT, 3000K-5000K | >Ra90 | 3000lm | White/Black/Silver |
| LDOL-O01-15-y-CCT-SD-z-PM | Φ45*1500mm | 37.5W | 2CCT, 3000K-5000K | >Ra90 | 3750lm | White/Black/Silver |
| LDOL-O01-06-y-9n0-LD-z-PM | Φ45*600mm | 15W | 3000K/4000K/5000K | >Ra90 | 1500lm | White/Black/Silver |
| LDOL-O01-09-y-9n0-LD-z-PM | Φ45*900mm | 22.5W | 3000K/4000K/5000K | >Ra90 | 2250lm | White/Black/Silver |
| LDOL-O01-12-y-9n0-LD-z-PM | Φ45*1200mm | 30W | 3000K/4000K/5000K | >Ra90 | 3000lm | White/Black/Silver |
| LDOL-O01-15-y-9n0-LD-z-PM | Φ45*1500mm | 37.5W | 3000K/4000K/5000K | >Ra90 | 3750lm | White/Black/Silver |
| LDOL-O01-06-y-CCT-LD-z-PM | Φ45*600mm | 15W | 2CCT, 3000K-5000K | >Ra90 | 1500lm | White/Black/Silver |
| LDOL-O01-09-y-CCT-LD-z-PM | Φ45*900mm | 22.5W | 2CCT, 3000K-5000K | >Ra90 | 2250lm | White/Black/Silver |
| LDOL-O01-12-y-CCT-LD-z-PM | Φ45*1200mm | 30W | 2CCT, 3000K-5000K | >Ra90 | 3000lm | White/Black/Silver |
| LDOL-O01-15-y-CCT-LD-z-PM | Φ45*1500mm | 37.5W | 2CCT, 3000K-5000K | >Ra90 | 3750lm | White/Black/Silver |
| LDOL-O01-03-y-9n0-SD-z-P4 | 300*12*10mm | 6W | 3000K/4000K/5000K | >Ra90 | 540lm | White/Black/Silver |
| LDOL-O01-03-y-9n0-SD-z-P6 | 300*12*10mm | 6W | 3000K/4000K/5000K | >Ra90 | 540lm | White/Black/Silver |
| LDOL-O01-03-y-9n0-SD-z-L1 | 300*12*10mm | 6W | 3000K/4000K/5000K | >Ra90 | 540lm | White/Black/Silver |
| LDOL-O01-03-y-9n0-SD-z-L2 | 300*13*10mm | 6W | 3000K/4000K/5000K | >Ra90 | 540lm | White/Black/Silver |
| LDOL-O01-03-y-CCT-SD-z-P4 | 300*12*10mm | 6W | 2CCT, 3000K-5000K | >Ra90 | 540lm | White/Black/Silver |
| LDOL-O01-03-y-CCT-SD-z-P6 | 300*12*10mm | 6W | 2CCT, 3000K-5000K | >Ra90 | 540lm | White/Black/Silver |
| LDOL-O01-03-y-CCT-SD-z-L1 | 300*12*10mm | 6W | 2CCT, 3000K-5000K | >Ra90 | 540lm | White/Black/Silver |
| LDOL-O01-03-y-CCT-SD-z-L2 | 300*13*10mm | 6W | 2CCT, 3000K-5000K | >Ra90 | 540lm | White/Black/Silver |
