Office Linear Light-Lyra Series
LEDIA Lyra Series linear light with innovative design and superior performance, aims to provide a professional lighting solution for offices and relevant commercial & residential scenarios. The unique feature of free connection with different sizes of straight and curved light bars can create different combinations and fit different spaces. Various sizes (3 straight ones and 4 diameters curved ones) and wa�ages (from 12W to 40W) with PMMA lens can meet different project demands. Up & Down light to create a comfortable light environment, CCT changeable to meet different light requests, slider switch to change the CCT and separately change for Up or Down light. Various power supply (On/Off, 0~10V Dimming, DALI Dimming can be compatible with different systems. This linear light is perfect and widely applied for office, gallery, library, classroom etc.
Features

Slider Switch
Two Slide switches to adjust the Up & Down color temperature sepatatly.

Various Optics
PC/PMMA diffuser, Grille & Reflector, meet different light requirements.

3 CCT
3CCT changeable to create different ambiance

Aluminum Housing
Good heat dissipation, Long life-span for fixture

High CRI
Human-centric, CRI>Ra90, good for eye protection.

Various Power Supply
On/off, 0-10V Dimming, DALI Dimming, compatible to different system

Multi Installation Way
Surface-mounted, recessed & Suspension, meet different scenarios

High Efficacy
High efficacy over 110lm/W, energy saving

Up & Down Light
Up & Down light to create comfortable environment

Linkable
Linkable up to 400W with multi-connectors

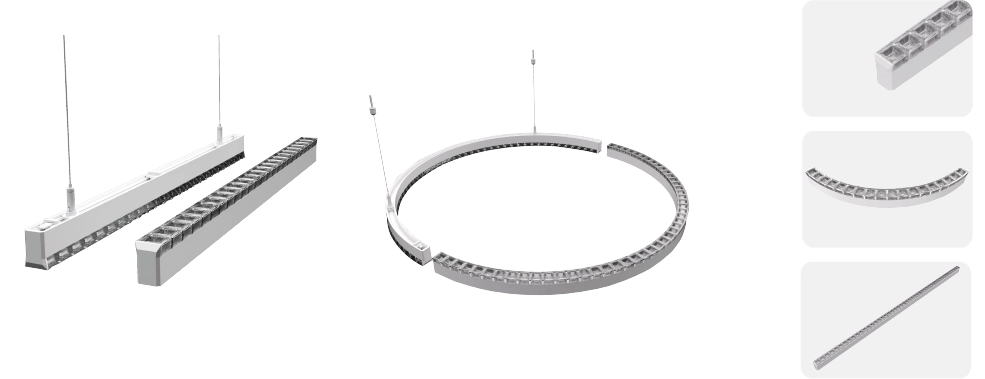

Multi optics

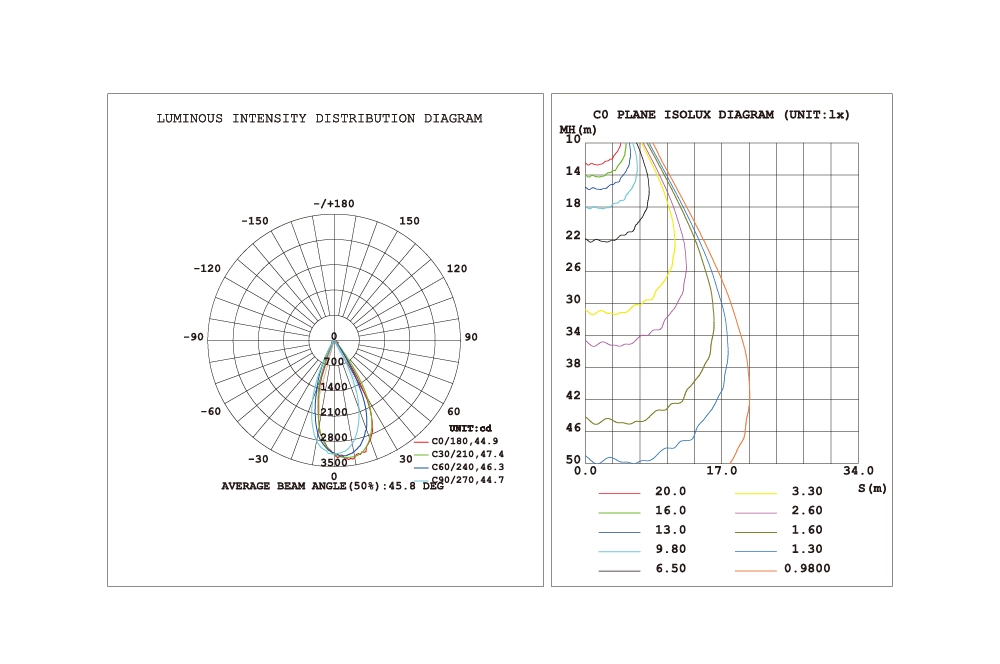

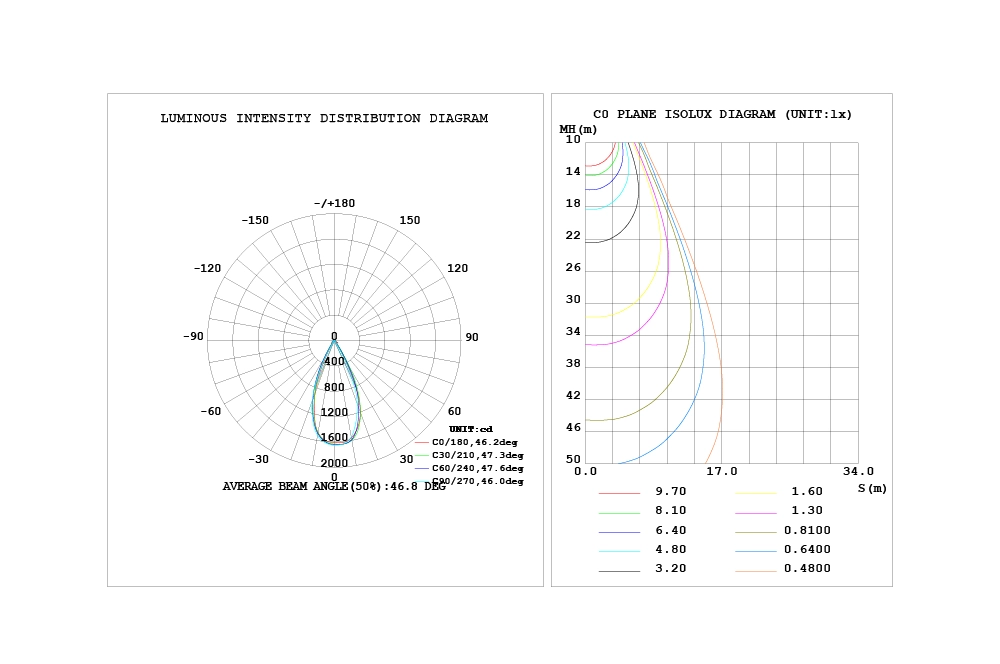

Photometric

Application

Certificates

| Model | Dimension (L*W*H) |
Wattage | CCT | CRI | Luminous Flux |
color |
|---|---|---|---|---|---|---|
| LDOL-L10-06-y-9n0-LD-z-xx | 638*30*43mm | 16w | 3000K/4000K/5000K | >Ra90 | 1440lm | White/Black/Silver/Golden |
| LDOL-L10-12-y-9n0-LD-z-xx | 1265*30*43mm | 32w | 3000K/4000K/5000K | >Ra90 | 2880lm | White/Black/Silver/Golden |
| LDOL-L10-15-y-9n0-LD-z-xx | 1579*30*43mm | 40w | 3000K/4000K/5000K | >Ra90 | 3600lm | White/Black/Silver/Golden |
| LDOL-L10-06-y-CCT-LD-z-xx | 638*30*43mm | 16w | 3CCT, 3000K-5000K | >Ra90 | 1280lm | White/Black/Silver/Golden |
| LDOL-L10-12-y-CCT-LD-z-xx | 1265*30*43mm | 32w | 3CCT, 3000K-5000K | >Ra90 | 2560lm | White/Black/Silver/Golden |
| LDOL-L10-15-y-CCT-LD-z-xx | 1579*30*43mm | 40W | 3CCT, 3000K-5000K | >Ra90 | 3200lm | White/Black/Silver/Golden |
| LDOL-L10-06-y-9n0-LU-z-xx | 638*30*43mm | 16w | 3000K/4000K/5000K | >Ra90 | 1440lm | White/Black/Silver/Golden |
| LDOL-L10-12-y-9n0-LU-z-xx | 1265*30*43mm | 32w | 3000K/4000K/5000K | >Ra90 | 2880lm | White/Black/Silver/Golden |
| LDOL-L10-15-y-9n0-LU-z-xx | 1579*30*43mm | 40w | 3000K/4000K/5000K | >Ra90 | 3600lm | White/Black/Silver/Golden |
| LDOL-L10-06-y-CCT-LU-z-xx | 638*30*43mm | 16w | 3CCT, 3000K-5000K | >Ra90 | 1280lm | White/Black/Silver/Golden |
| LDOL-L10-12-y-CCT-LU-z-xx | 1265*30*43mm | 32w | 3CCT,3000K-5000K | >Ra90 | 2560lm | White/Black/Silver/Golden |
| LDOL-L10-15-y-CCT-LU-z-xx | 1579*30*43mm | 40w | 3CCT,3000K-5000K | >Ra90 | 3200lm | White/Black/Silver/Golden |
| LDOL-L01-06-y-9n0-LD-z-xx | φ620*43mm | 12W*4 | 3000K/4000K/5000K | >Ra90 | 1080lm*4 | White/Black/Silver/Golden |
| LDOL-L01-08-y-9n0-LD-z-xx | φ820*43mm | 16W*4 | 3000K/4000K/5000K | >Ra90 | 1440lm*4 | White/Black/Silver/Golden |
| LDOL-L01-10-y-9n0-LD-z-xx | φ1020*43mm | 20W*4 | 3000K/4000K/5000K | >Ra90 | 1800lm*4 | White/Black/Silver/Golden |
| LDOL-L01-12-y-9n0-LD-z-xx | φ1220*43mm | 24W*4 | 3000K/4000K/5000K | >Ra90 | 2160lm*4 | White/Black/Silver/Golden |
| LDOL-L01-06-y-CCT-LD-z-xx | φ620*43mm | 12W*4 | 3CCT, 3000K-5000K | >Ra90 | 960lm*4 | White/Black/Silver/Golden |
| LDOL-L01-08-y-CCT-LD-z-xx | φ820*43mm | 16W*4 | 3CCT, 3000K-5000K | >Ra90 | 1280lm*4 | White/Black/Silver/Golden |
| LDOL-L01-10-y-CCT-LD-z-xx | φ1020*43mm | 20W*4 | 3CCT, 3000K-5000K | >Ra90 | 1600lm*4 | White/Black/Silver/Golden |
| LDOL-L01-12-y-CCT-LD-z-xx | φ1220*43mm | 24W*4 | 3CCT, 3000K-5000K | >Ra90 | 1920lm*4 | White/Black/Silver/Golden |
| LDOL-L01-06-y-9n0-LU-z-xx | φ620*43mm | 12W*4 | 3000K/4000K/5000K | >Ra90 | 1080lm*4 | White/Black/Silver/Golden |
| LDOL-L01-08-y-9n0-LU-z-xx | φ820*43mm | 16W*4 | 3000K/4000K/5000K | >Ra90 | 1440lm*4 | White/Black/Silver/Golden |
| LDOL-L01-10-y-9n0-LU-z-xx | φ1020*43mm | 20W*4 | 3000K/4000K/5000K | >Ra90 | 1800lm*4 | White/Black/Silver/Golden |
| LDOL-L01-12-y-9n0-LU-z-xx | φ1220*43mm | 24W*4 | 3000K/4000K/5000K | >Ra90 | 2160lm*4 | White/Black/Silver/Golden |
| LDOL-L01-06-y-CCT-LU-z-xx | φ620*43mm | 12W*4 | 3CCT, 3000K-5000K | >Ra90 | 960lm*4 | White/Black/Silver/Golden |
| LDOL-L01-08-y-CCT-LU-z-xx | φ820*43mm | 16W*4 | 3CCT, 3000K-5000K | >Ra90 | 1280lm*4 | White/Black/Silver/Golden |
| LDOL-L01-10-y-CCT-LU-z-xx | φ1020*43mm | 20W*4 | 3CCT, 3000K-5000K | >Ra90 | 1600lm*4 | White/Black/Silver/Golden |
| LDOL-L01-12-y-CCT-LU-z-xx | φ1220*43mm | 24W*4 | 3CCT, 3000K-5000K | >Ra90 | 1920lm*4 | White/Black/Silver/Golden |
