Tri-proof Light-B Series
LEDIA B Series Linear Tri-proof with innovative design and superior performance aims to provide a professional lighting solution for parking lots, garages, warehouses, underground passages and relevant scenarios. Various sizes (3 sizes) and wattages(from 24W to 60W) can meet different project demands. Simple and beautiful product design with its own patents brings excellent performance, making the efficacy up to 130lm/W. Various voltages 220~240V, 120~277/347V to meet global requirements, diverse power supply (On/Off, 0~10V Dimming, DALI Dimming) can be compatible with different systems. Full plastic design brings perfect tri-proof effect. This Linear Tri-proof is perfectly and widely applied for the garage, warehouse, underground passages, etc.
Features
High Efficacy
High efficacy over 130lm/W, energy saving
Various Power Supply
On/off, 0-10V Dimming, DALI Dimming, compatible to different system

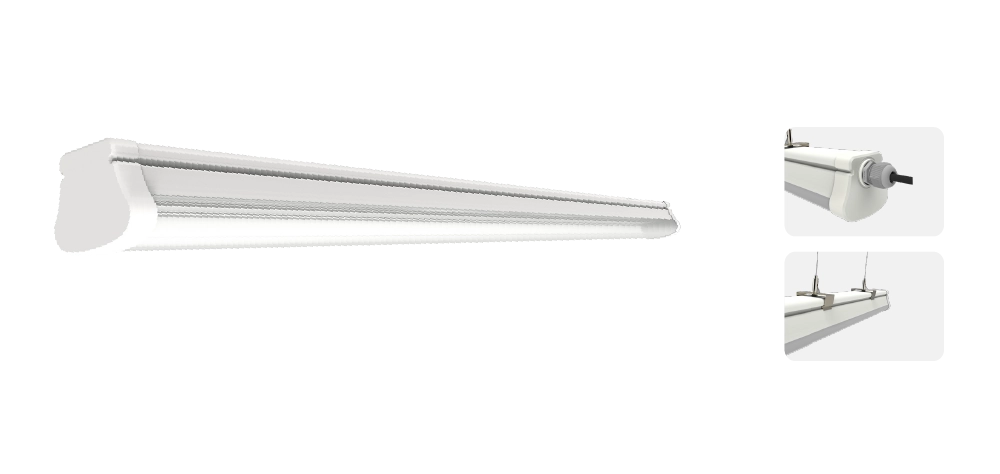

Detailed Prodcut Picture

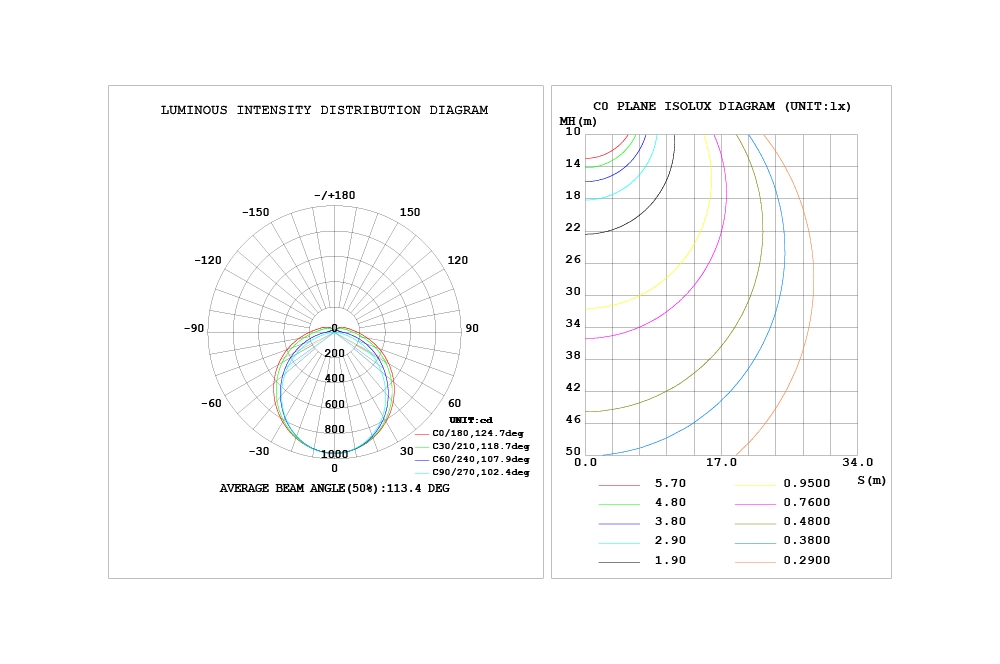

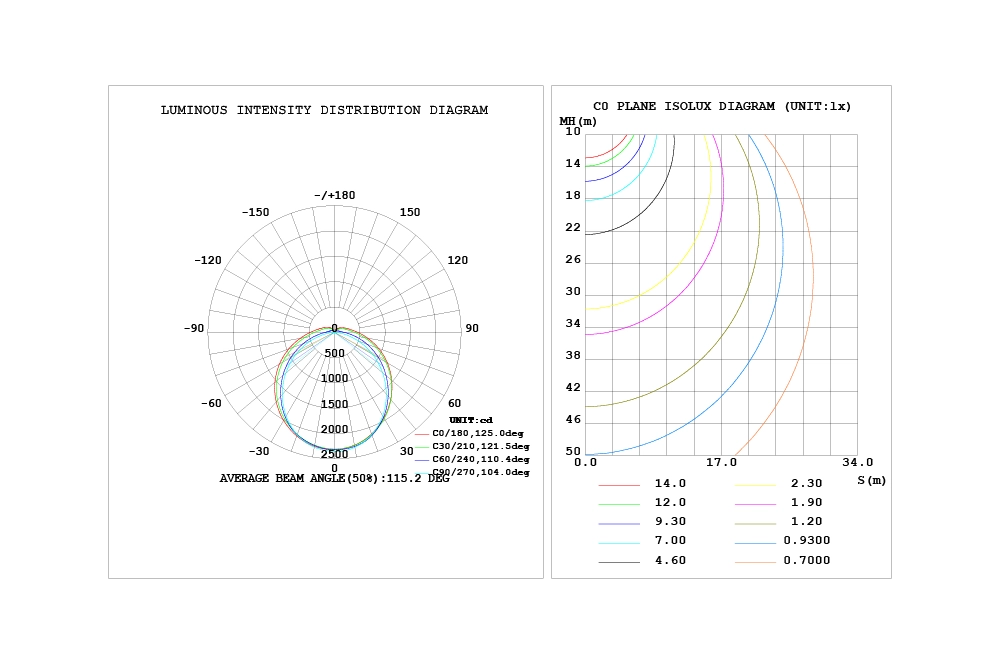

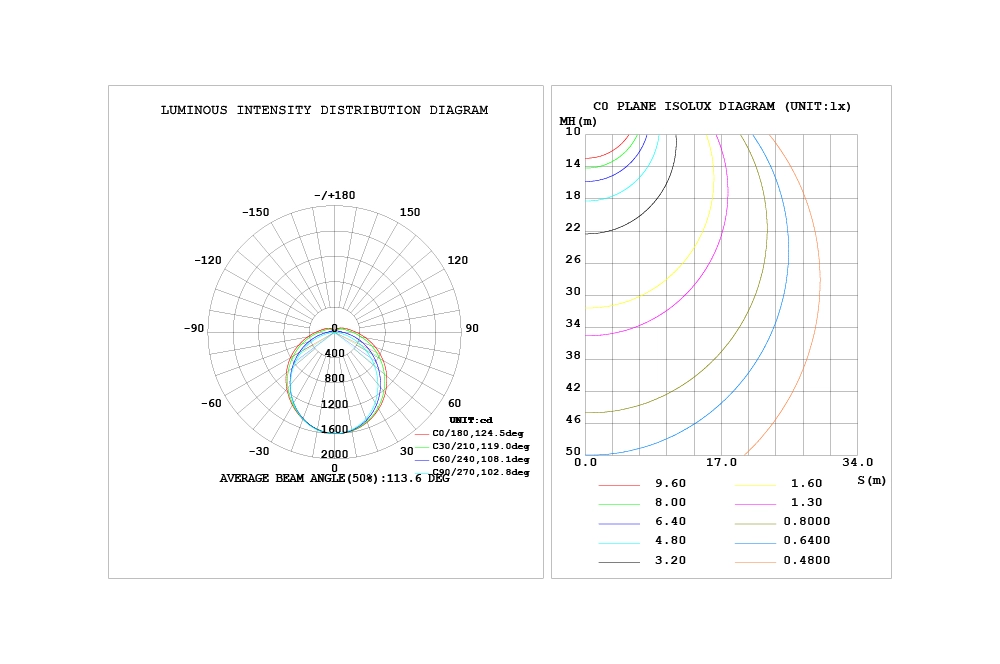

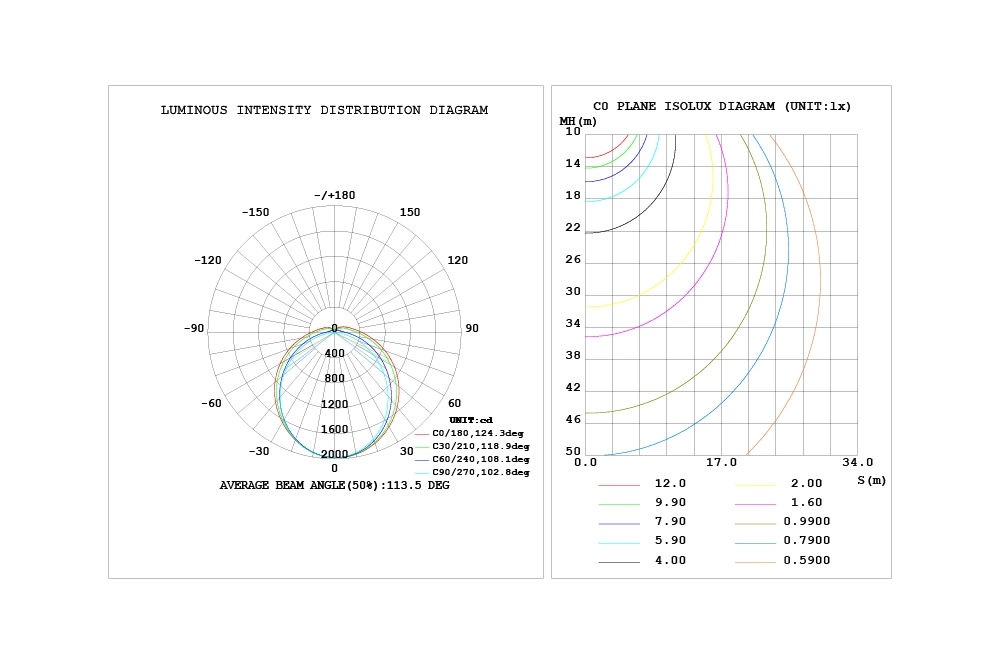

Photometric
Application
Certificates
| Model | Dimension (L*W*H) |
Wattage | CCT | CRI | Luminous Flux |
color |
|---|---|---|---|---|---|---|
| LDTL-B01-06-y-8n0-SD-z-xx | 600*66.5*58mm | 24W | 3000K/4000K/5000K/6000K | >Ra80 | 3120lm | White/Silver Gray |
| LDTL-B01-06-y-8n0-SD-z-xx | 600*66.5*58mm | 30W | 3000K/4000K/5000K/6000K | ＞Ra80 | 3900lm | White/Silver Gray |
| LDTL-B01-12-y-8n0-SD-z-xx | 1200*66.5*58mm | 40W | 3000K/4000K/5000K/6000K | ＞Ra80 | 5200lm | White/Silver Gray |
| LDTL-B01-12-y-8n0-SD-z-xx | 1200*66.5*58mm | 50W | 3000K/4000K/5000K/6000K | >Ra80 | 6500lm | White/Silver Gray |
| LDTL-B01-15-y-8n0-SD-z-xx | 1500*66.5*58mm | 50W | 3000K/4000K/5000K/6000K | >Ra80 | 6500lm | White/Silver Gray |
| LDTL-B01-15-y-8n0-SD-z-xx | 1500*66.5*58mm | 60W | 3000K/4000K/5000K/6000K | >Ra80 | 7800lm | White/Silver Gray |
