Office Linear Light-Edge Series
LEDIA Edge Series linear light with innovative design and superior performance aims to provide a professional & comfortable lighting solution for offices, dining rooms, and relevant commercial & residential scenarios. Super narrow design with width only 24mm, elegant appearance brings users wonderful enjoyment. Diverse optics (a total of 16 different reflectors) can meet different project demands. Up & Down light to create a comfortable light environment, CCT changeable to meet different light requests, slider switch to change the CCT and separately change for Up or Down light, hand-waving controlling is also available. Various power supplies (On/Off, 0~10V Dimming, DALI Dimming) can be compatible with different systems. This linear light is perfect and widely applied for office, dining room, gallery, library, classroom etc.
Features
Slider Switch
Two Slide switches to adjust the Up & Down color temperature sepatatly.
Various Optics
PC/PMMA diffuser, Grille & Reflector, meet different light requirements.
3 CCT
3CCT changeable to create different ambiance
Aluminum Housing
Good heat dissipation, Long life-span for fixture
High CRI
Human-centric, CRI＞Ra90, good for eye protection.
Various Power Supply
On/off, 0-10V Dimming, DALI Dimming, compatible to different system
Multi Installation Way
Surface-mounted, recessed & Suspension, meet different scenarios
High Efficacy
High efficacy over 110lm/W, energy saving
Up & Down Light
Up & Down light to create comfortable environment
Hand-waving Sensor
Touchless, Multy application scenarios

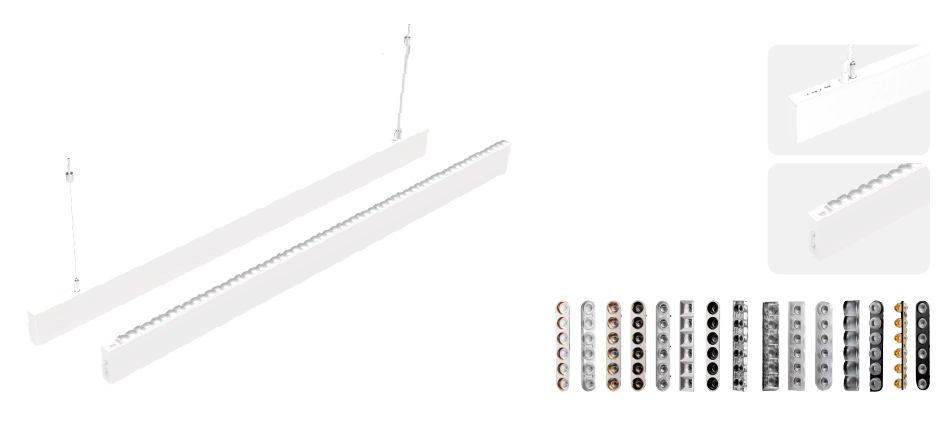

Multi optics

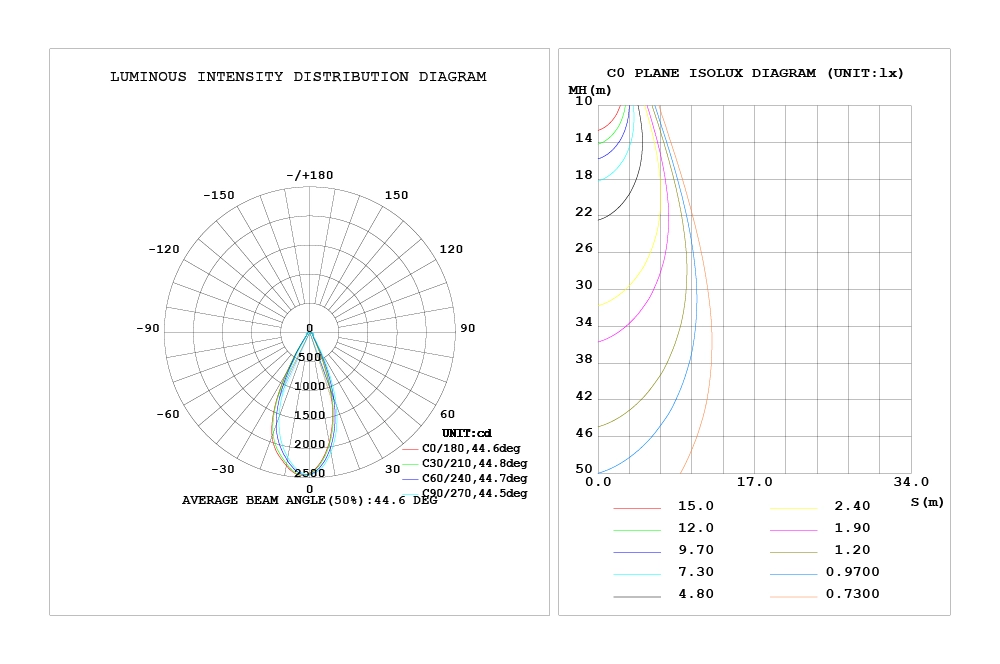

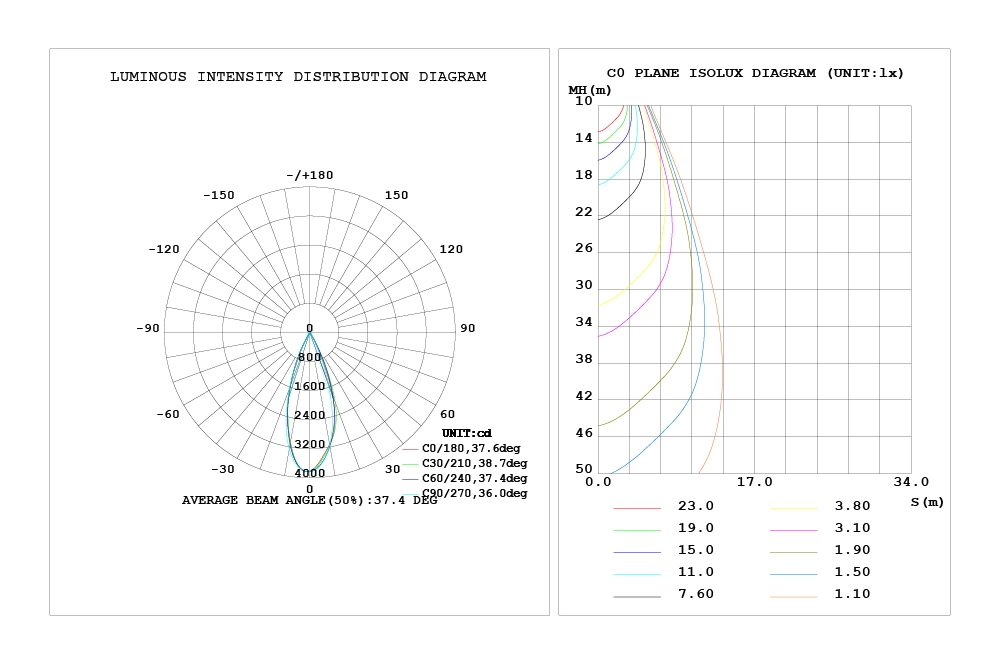

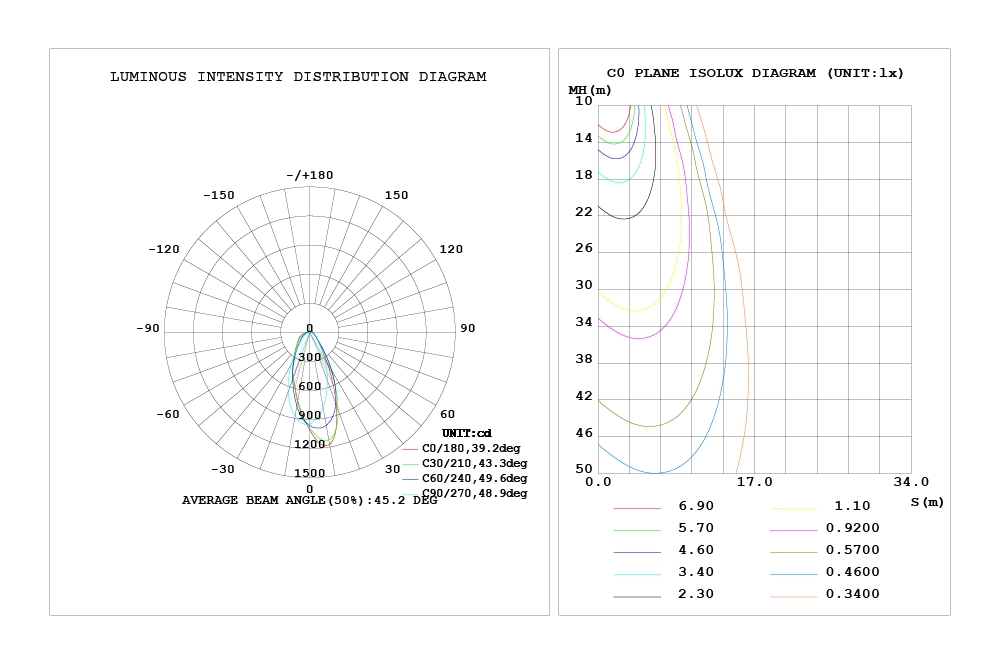

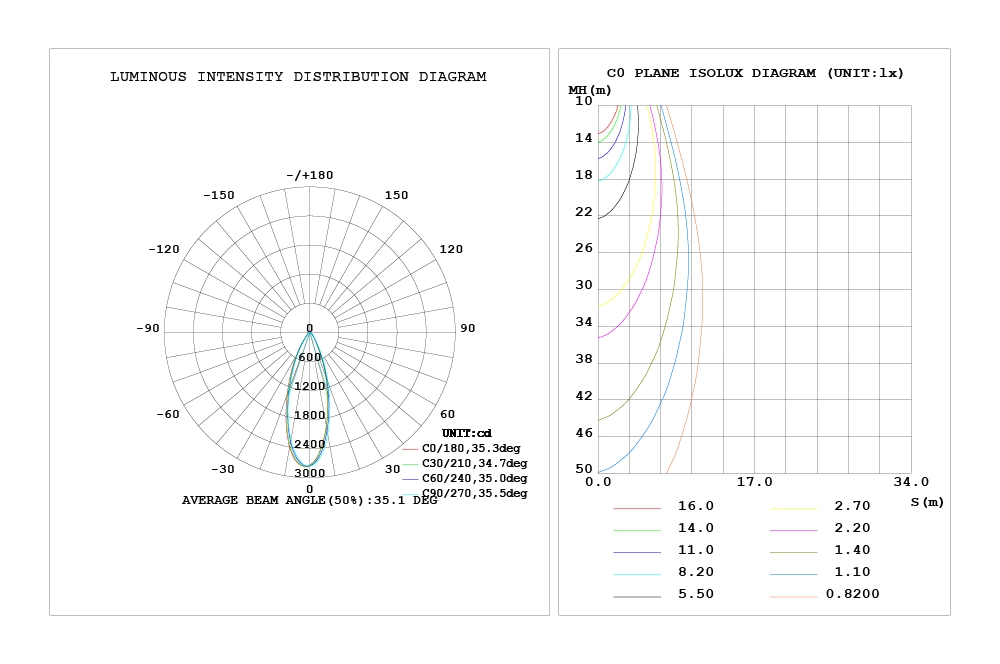

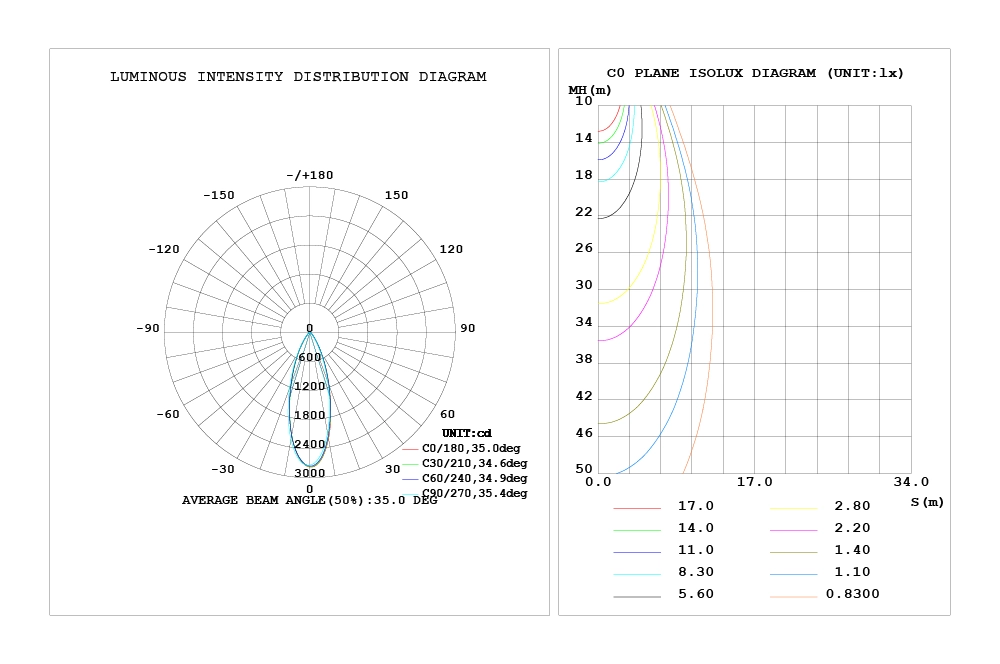

Photometric
Application
Certificates
| Model | Dimension (L*W*H) |
Wattage | CCT | CRI | Luminous Flux |
color |
|---|---|---|---|---|---|---|
| LDOL-lxx-12-y-9n0-SD–z-xx | 1167*25.4*80mm | 32W | 3000K/4000K/5000K | ＞Ra90 | 2700lm | White/Black/Silver |
| LDOL-lxx-15-y-9n0-SD–z-xx | 1400*25.4*80mm | 42W | 3000K/4000K/5000K | ＞Ra90 | 3600lm | White/Black/Silver |
| LDOL-Ixx-12-y-9n0-SU-z-xx | 1167*25.4*80mm | 32W | 3000K/4000K/5000K | ＞Ra90 | 2700lm | White/Black/Silver |
| LDOL-Ixx-15-y-9n0-SU-z-xx | 1400*25.4*80mm | 42W | 3000K/4000K/5000K | >Ra90 | 3600lm | White/Black/Silver |
| LDOL-Ixx-12-y-9n0-SD-H-xx | 1197*25.4*80mm | 32W | 3000K/4000K/5000K | >Ra90 | 2400lm | White/Black/Silver |
| LDOL-Ixx-15-y-9n0-SD-H-xx | 1430*25.4*80mm | 42W | 3000K/4000K/5000K | >Ra90 | 3200lm | White/Black/Silver |
| LDOL-Ixx-12-y-9n0-SU-H-xx | 1197*25.4*80mm | 32W | 3000K/4000K/5000K | >Ra90 | 2400lm | White/Black/Silver |
| LDOL-Ixx-15-y-9n0-SU-H-xx | 1430*25.4*80mm | 42W | 3000K/4000K/5000K | >Ra90 | 3200lm | White/Black/Silver |
| LDOL-Ixx-12-y-CCT-SD-z-xx | 1167*25.4*80mm | 32W | 3CCT,3000K-5000K | >Ra90 | 2700lm | White/Black/Silver |
| LDOL-Ixx-15-y-CCT-SD-z-xx | 1400*25.4*80mm | 42W | 3CCT,3000K-5000K | >Ra90 | 3600lm | White/Black/Silver |
| LDOL-Ixx-12-y-CCT-SU-z-xx | 1167*25.4*80mm | 32W | 3CCT,3000K-5000K | >Ra90 | 2700lm | White/Black/Silver |
| LDOL-Ixx-15-y-CCT-SU-z-xx | 1400*25.4*80mm | 42W | 3CCT,3000K-5000K | >Ra90 | 3600lm | White/Black/Silver |
| LDOL-Ixx-12-y-CCT-SD-H-xx | 1197*25.4*80mm | 32W | 3CCT,3000K-5000K | >Ra90 | 2400lm | White/Black/Silver |
| LDOL-Ixx-15-y-CCT-SD-H-xx | 1430*25.4*80mm | 42W | 3CCT,3000K-5000K | >Ra90 | 3200lm | White/Black/Silver |
| LDOL-Ixx-12-y-CCT-SU-H-xx | 1197*25.4*80mm | 32W | 3CCT,3000K-5000K | >Ra90 | 2400lm | White/Black/Silver |
| LDOL-Ixx-15-y-CCT-SU-H-xx | 1430*25.4*80mm | 42W | 3CCT,3000K-5000K | >Ra90 | 3200lm | White/Black/Silver |
