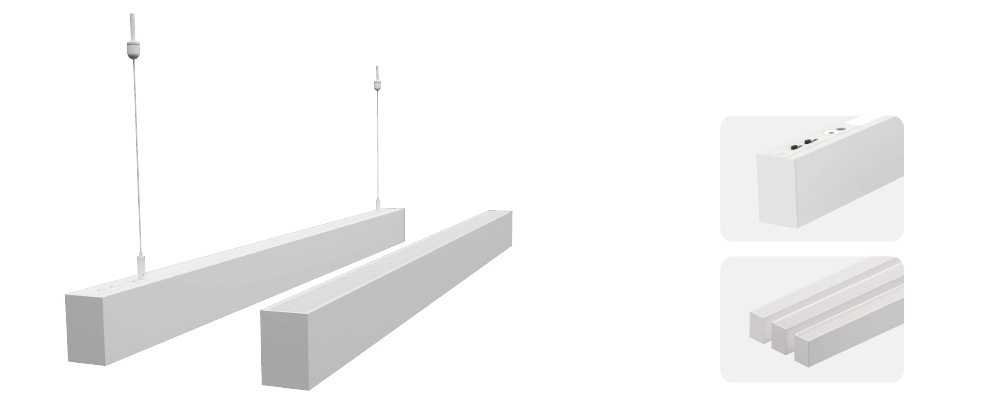

Office Linear Light-Juno Series
LEDIA Juno Series office linear light with innovative design and superior performance aims to provide a professional lighting solution for offices and relevant public scenarios. Various sizes (4sizes) and wattages(from 30W to 60W) with diverse optics (PC diffuser, PMMA-Microprism, Grille, Honeycomb, etc.), multiple installation ways (Surface-mounted & suspension) can meet different project demands. Up & Down light to create a comfortable lighting environment, CCT changeable to meet different lighting requests, slider switch to change the CCT, and separate controls for Up or Down light. With different connectors, this linear light can be linked freely. Various power supplies (On/Off, 0~10V Dimming, DALI Dimming) can be compatible with different systems. This linear light is perfect and widely applied for offices, galleries, libraries, classroom, etc.
Features
Slider Switch
Two Slide switches to adjust the Up & Down color temperature sepatatly.
Various Optics
PC/PMMA diffuser, Grille & Reflector, meet different light requirements.
3 CCT
3CCT changeable to create different ambiance
Aluminum Housing
Good heat dissipation, Long life-span for fixture
High CRI
Human-centric, CRI＞Ra90, good for eye protection.
Various Power Supply
On/off, 0-10V Dimming, DALI Dimming, compatible to different system
Multi Installation Way
Surface-mounted, recessed & Suspension, meet different scenarios
High Efficacy
High efficacy over 110lm/W, energy saving
Up & Down Light
Up & Down light to create comfortable environment
Linkable
Linkable up to 400W with multi-connectors
Multi optics

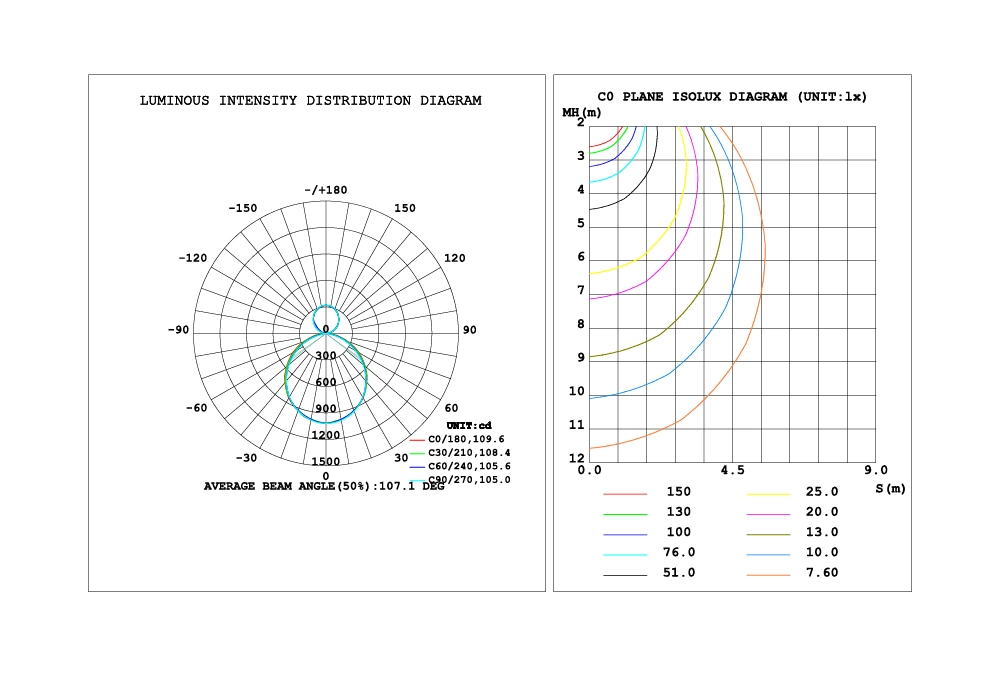

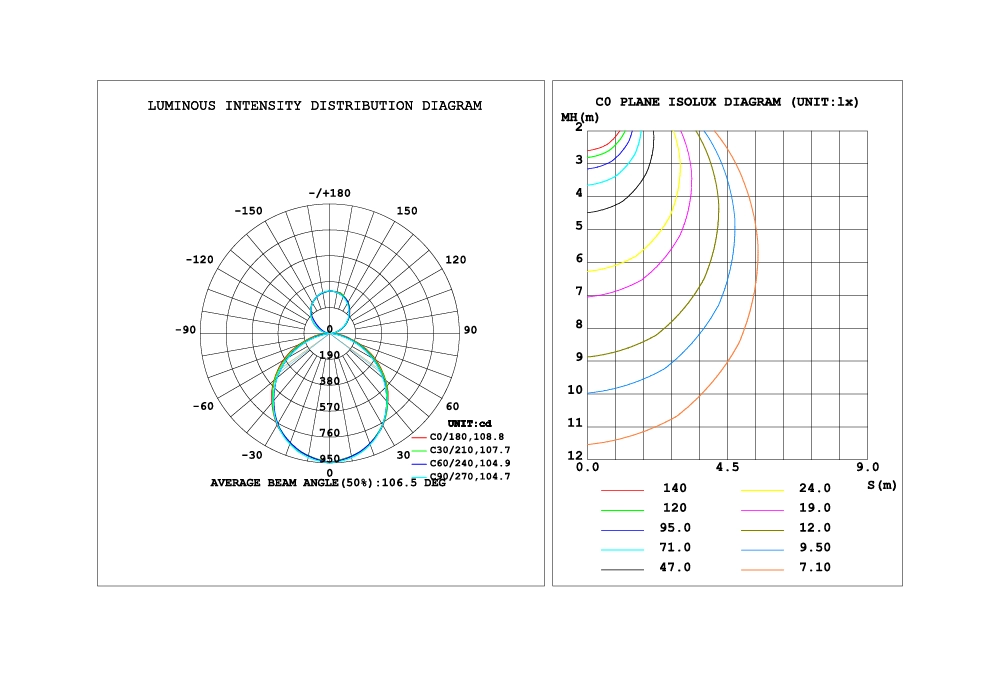

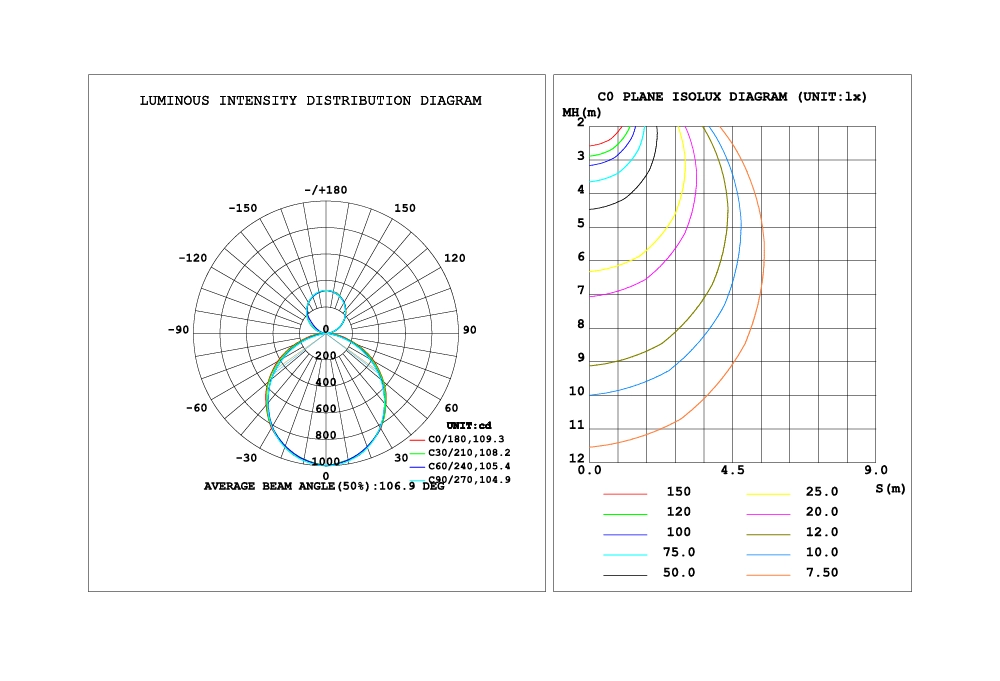

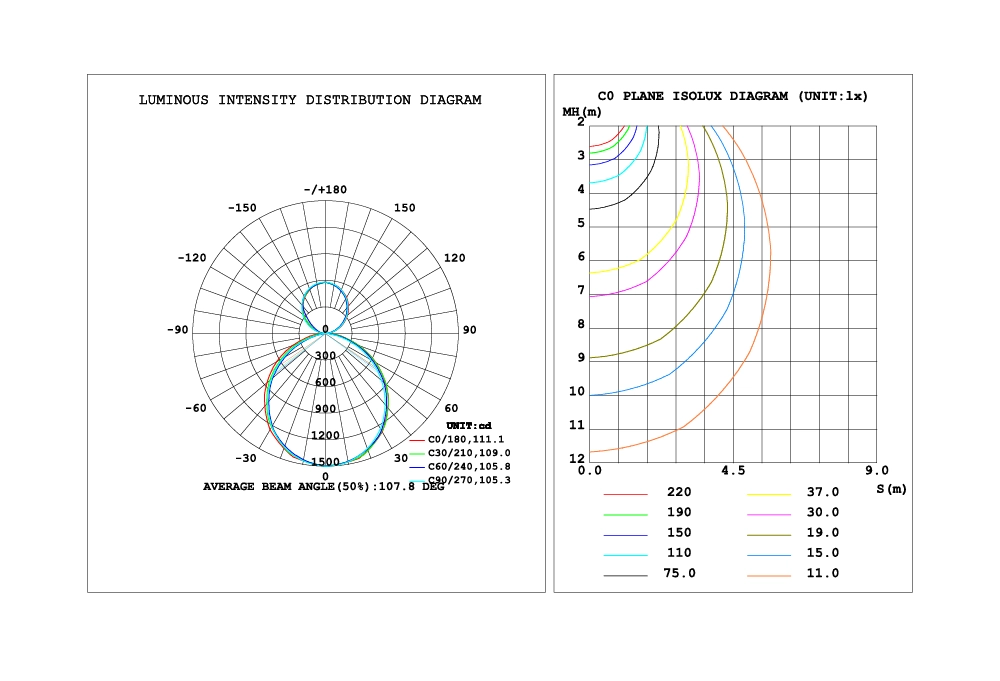

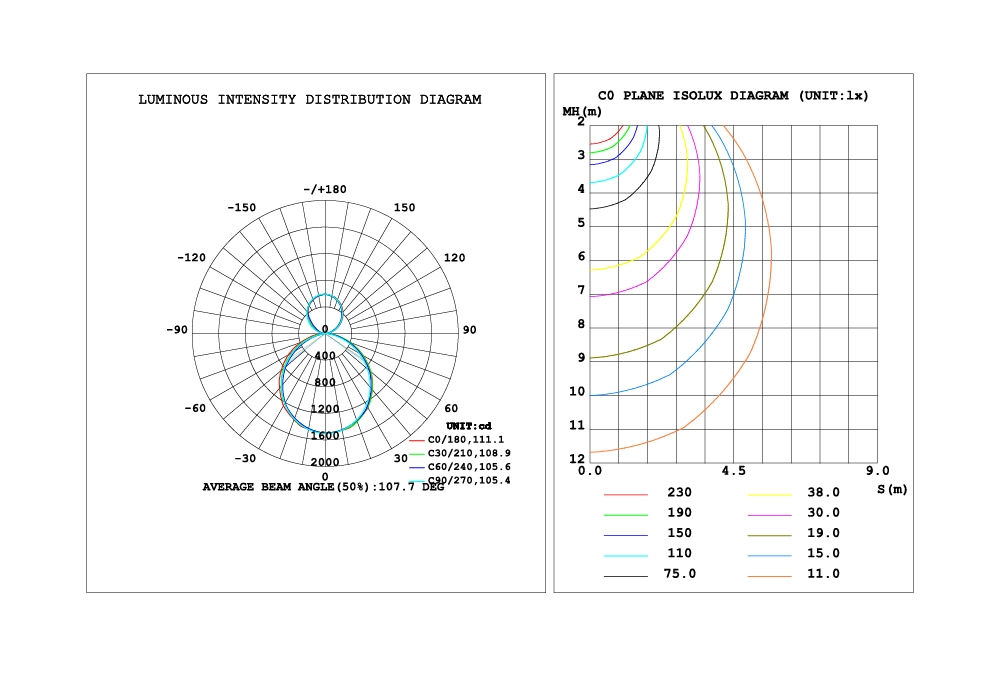

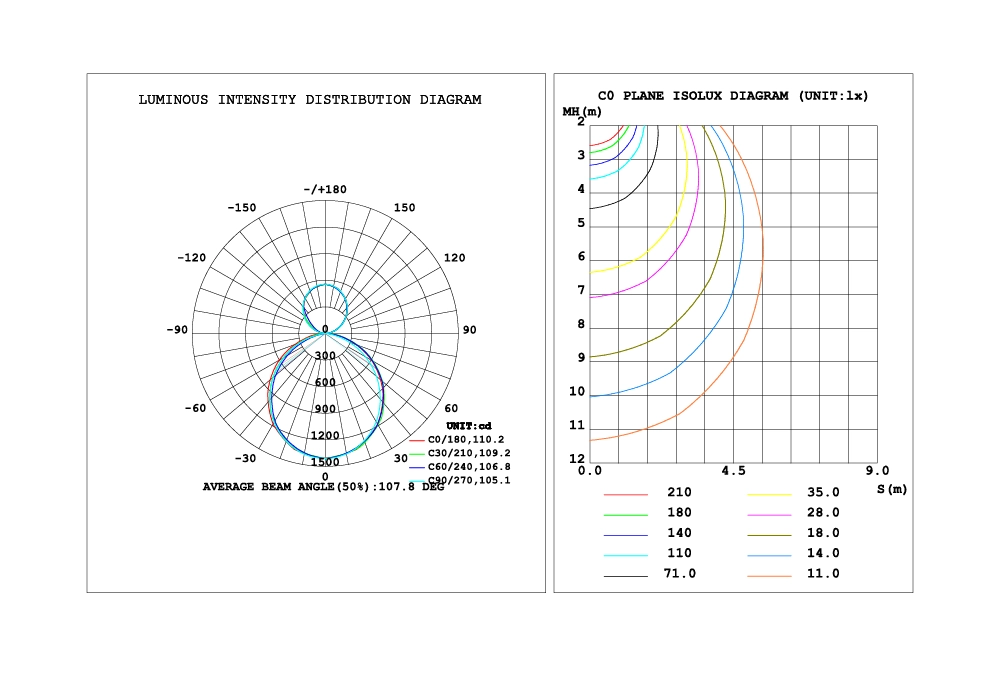

Photometric
Application
Certificates
| Model | Dimension (L*W*H) |
Wattage | CCT | CRI | Luminous Flux |
color |
|---|---|---|---|---|---|---|
| LDOL-Jxx-12-y-9n0-SD-z-xx | 1126*52*76mm | 30W | 3000K/4000K/5000K | ＞Ra90 | 3000lm | White/Black |
| LDOL-Jxx-15-y-9n0-SD-z-xx | 1406*52*76mm | 37.5W | 3000K/4000K/5000K | ＞Ra90 | 3750lm | White/Black |
| LDOL-Jxx-18-y-9n0-SD-z-xx | 1706*52*76mm | 45W | 3000K/4000K/5000K | ＞Ra90 | 4500lm | White/Black |
| LDOL-Jxx-24-y-9n0-SD-z-xx | 2248*52*76mm | 60W | 3000K/4000K/5000K | >Ra90 | 6000lm | White/Black |
| LDOL-Jxx-12-y-9n0-SU-z-xx | 1126*52*76mm | 30W | 3000K/4000K/5000K | >Ra90 | 3000lm | White/Black |
| LDOL-Jxx-15-y-9n0-SU-z-xx | 1406*52*76mm | 40W | 3000K/4000K/5000K | >Ra90 | 3750lm | White/Black |
| LDOL-Jxx-18-y-9n0-SU-z-xx | 1706*52*76mm | 50W | 3000K/4000K/5000K | >Ra90 | 4500lm | White/Black |
| LDOL-Jxx-24-y-9n0-SU-z-xx | 2248*52*76mm | 60W | 3000K/4000K/5000K | >Ra90 | 6000lm | White/Black |
| LDOL-Jxx-12-y-CCT-SD-z-xx | 1126*52*76mm | 30W | 3CCT,3000K-5000K | >Ra90 | 3000lm | White/Black |
| LDOL-Jxx-15-y-CCT-SD-z-xx | 1406*52*76mm | 37.5W | 3CCT,3000K-5000K | >Ra90 | 3750lm | White/Black |
| LDOL-Jxx-18-y-CCT-SD-z-xx | 1706*52*76mm | 45W | 3CCT,3000K-5000K | >Ra90 | 4500lm | White/Black |
| LDOL-Jxx-24-y-CCT-SD-z-xx | 2248*52*70mm | 60W | 3CCT,3000K-5000K | >Ra90 | 6000lm | White/Black |
| LDOL-Jxx-12-y-CCT-SU-z-xx | 1126*52*76mm | 30W | 3CCT,3000K-5000K | >Ra90 | 3000lm | White/Black |
| LDOL-Jxx-15-y-CCT-SU-z-xx | 1406*52*76mm | 37.5W | 3CCT,3000K-5000K | >Ra90 | 3750lm | White/Black |
| LDOL-Jxx-18-y-CCT-SU-z-xx | 1706*52*76mm | 45W | 3CCT,3000K-5000K | >Ra90 | 4500lm | White/Black |
| LDOL-Jxx-24-y-CCT-SU-z-xx | 2248*52*76mm | 60W | 3CCT,3000K-5000K | >Ra90 | 6000lm | White/Black |
