Built-in & Free cutting Alu Strip Light F01
LEDIA Built-in Aluminum Strip Light F series aims to provide a very convenient overall solution for whole-house furniture lighting & retail applications. Unique patented design with quick plug-in terminal, this product is free-cutting, soldering-free, and very easy to install. Delivery in lengths up to 3 meters reduces waste and saves labor costs. The key feature is cut at any length to meet different installation requests. 2-wire CCT can create more lighting ambiance and meet different scenarios and personalized needs. This light is perfect and widely used for wardrobe, closet, kitchen cabinet, and other Built-in Furniture, and retail scenarios, etc.
Features
Unique Housing Design
Patented design with quick plug-in terminal, welding-free and no Aluminum profiles required, easy for installation.
High CRI
Human-centric, CRI＞Ra90, Good for eye protection
Aluminum Housing
Good heat dissipation, Long life-span for LED PCB.
Free Cutting
Cut at any length, meet different scenario requests
45° Asymmetric
45° glows inward, even light with low glare
2 wire CCT
2 CCT changeable to create different ambiance
Soldering-free
Quick connector, Plug and Play, Save labor costs
Various Optics
PMMA diffusers meet different light requirements
Explosvie View

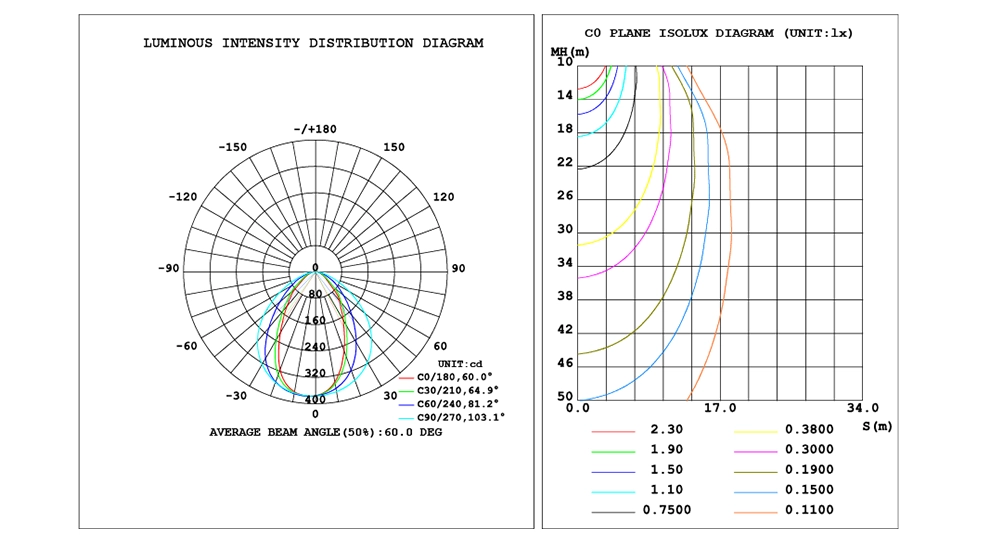

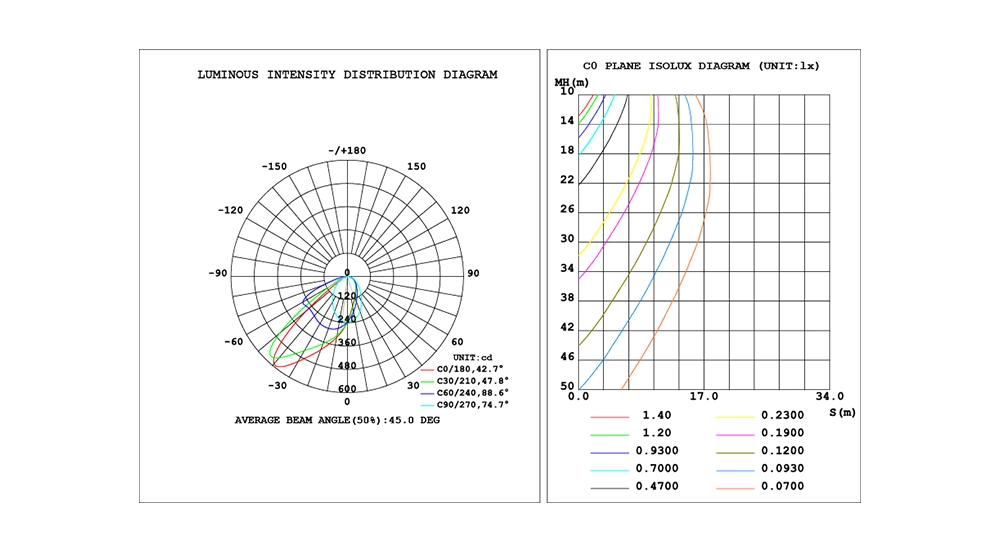

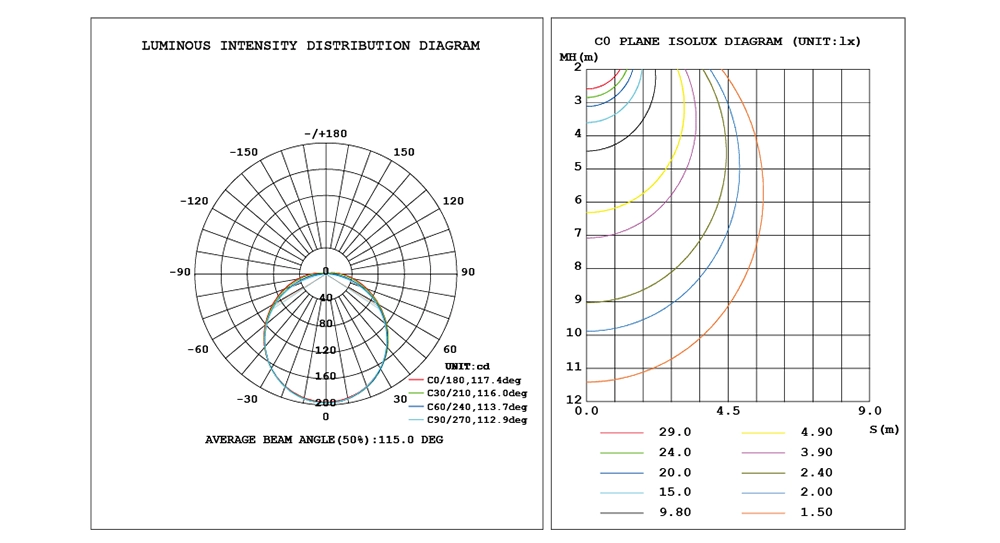

Photometric
Application
Certificates
| Model | Dimension (L*W*H) |
Wattage | CCT | CRI | Luminous Flux |
color | Beam Angle |
|---|---|---|---|---|---|---|---|
| LDUL-F01-30-y-9n0-SD-zz-12 | 3000*14.3*7.1mm | 24W | 3000K/4000K | ＞Ra90 | 2400lm/1680lm | Silver/Gray | 120° |
| LDUL-F01-30-y-9n0-SD-zz-60 | 3000*14.3*7.1mm | 24W | 3000K/4000K | ＞Ra90 | 2400lm/1680lm | Silver/Gray | 60° |
| LDUL-F01-30-y-9n0-SD-zz-45 | 3000*14.3*7.1mm | 24W | 3000K/4000K | ＞Ra90 | 2400lm/1680lm | Silver/Gray | 45°Asymmetric |
| LDUL-F01-30-y-CCT-SD-zz-12 | 3000*14.3*7.1mm | 24W | 2CCT,2700K-5000K | ＞Ra90 | 2400lm/1680lm | Silver/Gray | 120° |
| LDUL-F01-30-y-CCT-SD-zz-60 | 3000*14.3*7.1mm | 24W | 2CCT,2700K-5000K | ＞Ra90 | 2400lm/1680lm | Silver/Gray | 60° |
| LDUL-F01-30-y-CCT-SD-zz-45 | 3000*14.3*7.1mm | 24W | 2CCT,2700K-5000K | ＞Ra90 | 2400lm/1680lm | Silver/Gray | 45°Asymmetric |
| LDUL-F01-20-y | 2000*14.3*7.1mm | / | / | / | / | / | / |
