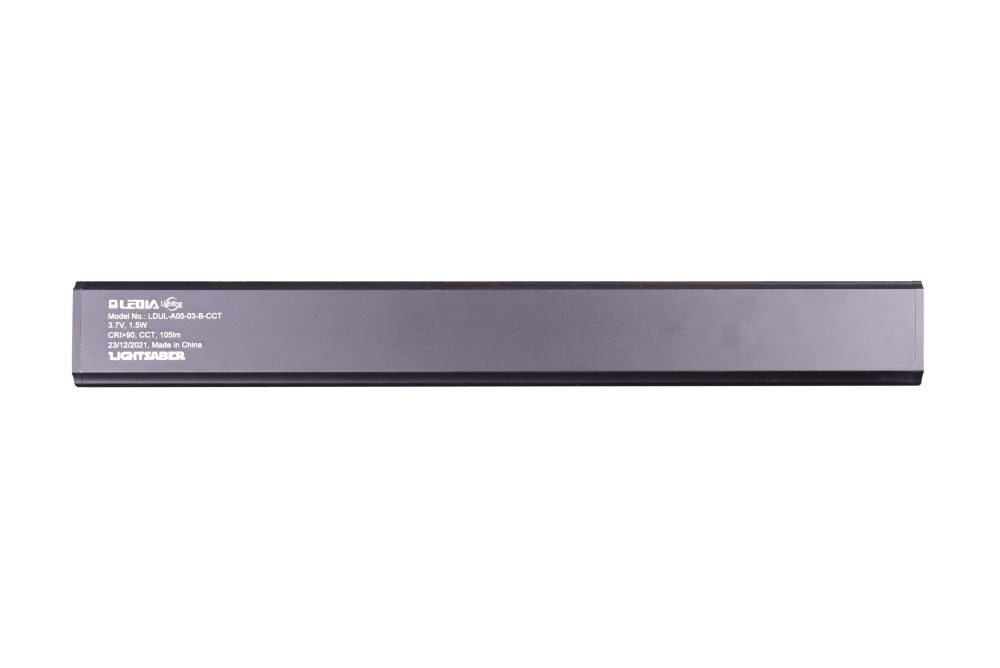

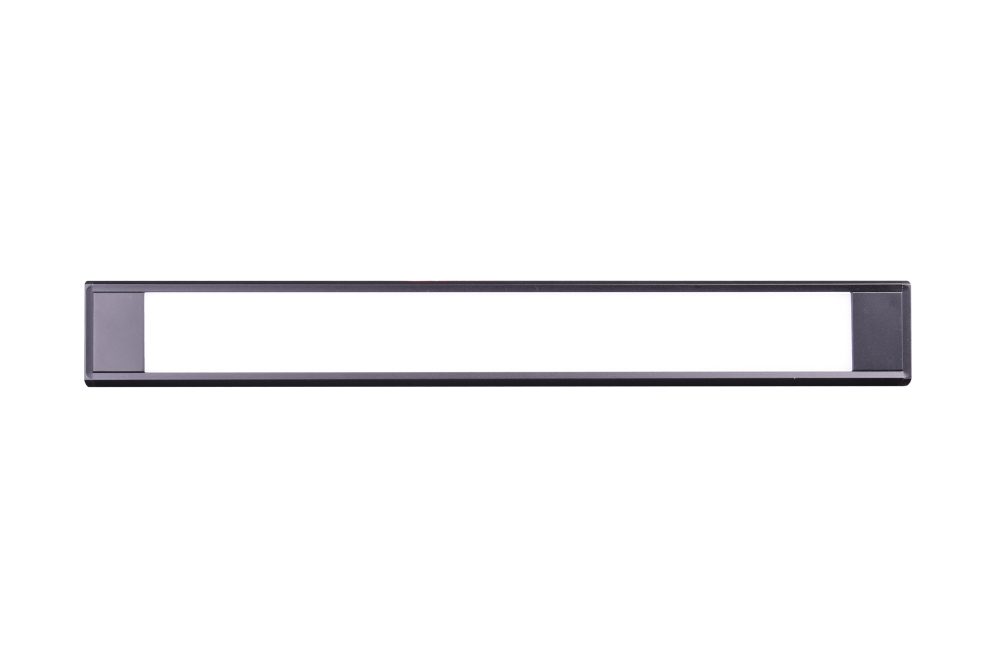

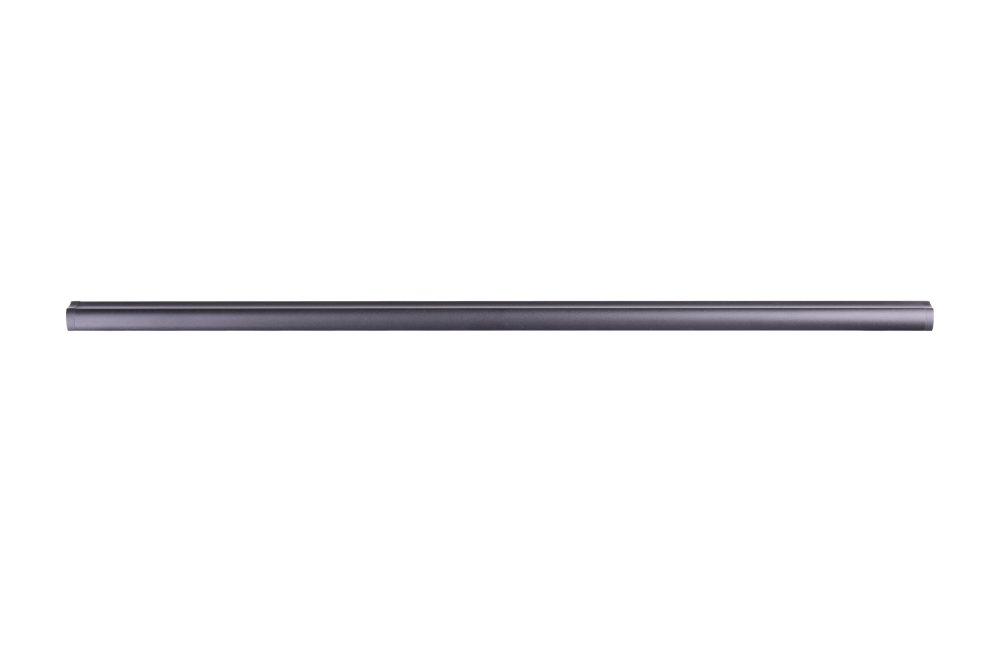

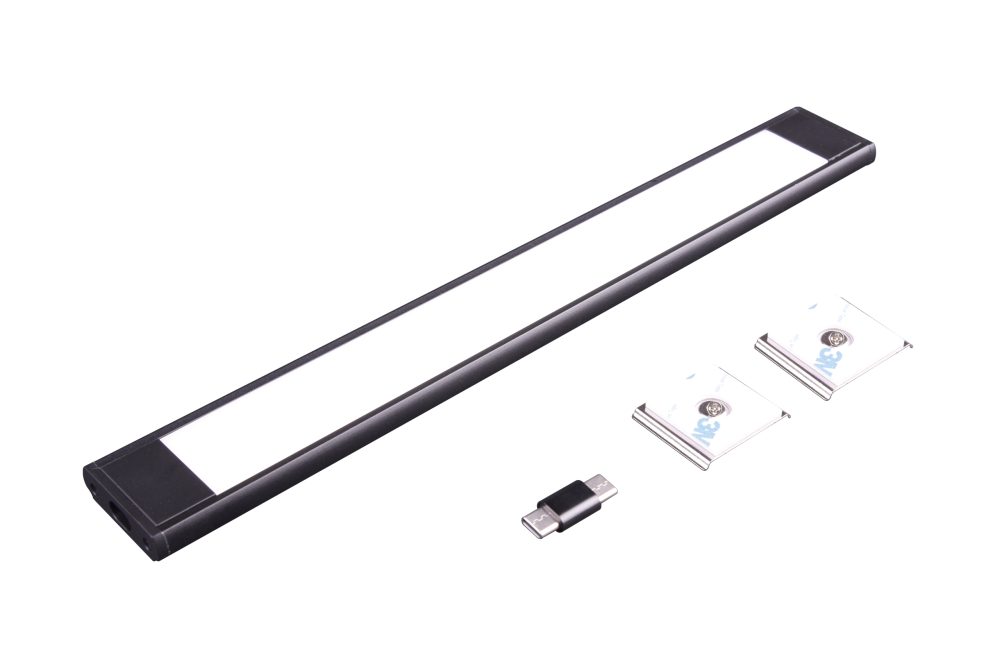

Lightsaber A07 — 24V Color Changeable with Hand-waving Sensor Free Connection
A07 is a 24V DC LED light with PIR motion, which not only illuminates the cabinet and adds extra light to it and serves as a decoration. As an LED light with a PIR motion sensor, A07 can be turned on/off without contact.
Features
Aluminum Housing
Good heat dissipation, long life-span for LED PCB
Hand-waving Sensor
Touchless, multi-application scenarios
High CRI
Human-centric, CRI＞Ra90, good for eye protection
3 CCT
3 CCT changeable to create different ambiance
Triac Dimming
Compatible with most of the wall dimmers
Anti-mistaken charge
Adapter with anti-mistaken charge special design
Unique Housing Design
Differentiation, low profile and easy taken down
Smart Button
Multi-functions, mode switches or color change

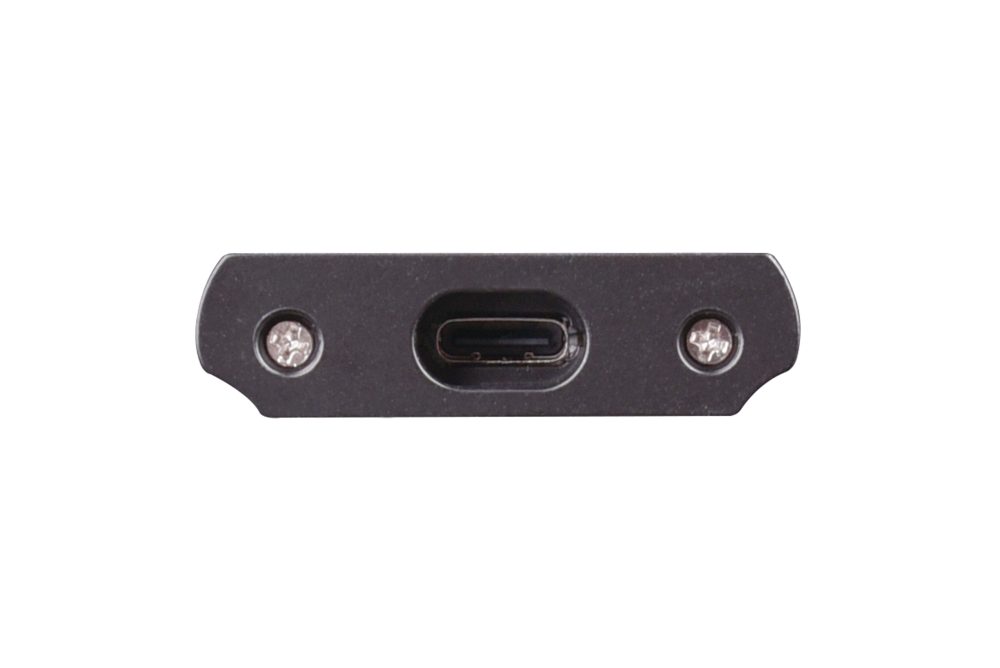

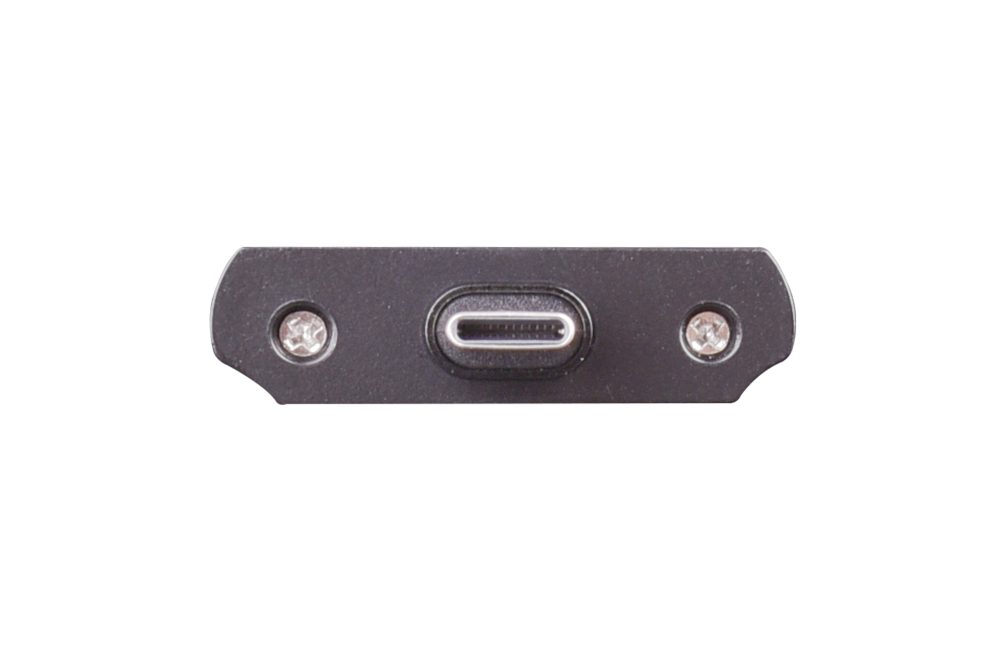

Type C
Plug and connector, universal for operation
Free Connection
Core principle of DIY, easy installation and operation
Exploded View
Product Video
Photometric
Application
Certificates
| Model | Series | Dimension L*W*H |
Wattage | CCT | CRI | Luminous Flux |
Battery capacity |
color |
|---|---|---|---|---|---|---|---|---|
| LDUL-A07-03-W-CCT | Lightsaber | 300*40*11mm | 4W | 3000K-4000K-5000K | ＞Ra90 | 280lm | / | White |
| LDUL-A07-03-S-CCT | Lightsaber | 300*40*11mm | 4W | 3000K-4000K-5000K | ＞Ra90 | 280lm | / | Sliver |
| LDUL-A07-03-B-CCT | Lightsaber | 300*40*11mm | 4W | 3000K-4000K-5000K | ＞Ra90 | 280lm | / | Black |
| LDUL-A07-04-W-CCT | Lightsaber | 400*40*11mm | 6W | 3000K-4000K-5000K | ＞Ra90 | 420lm | / | White |
| LDUL-A07-04-S-CCT | Lightsaber | 400*40*11mm | 6W | 3000K-4000K-5000K | ＞Ra90 | 420lm | / | Sliver |
| LDUL-A07-04-B-CCT | Lightsaber | 400*40*11mm | 6W | 3000K-4000K-5000K | ＞Ra90 | 420lm | / | Black |
| LDUL-A07-06-W-CCT | Lightsaber | 600*40*11mm | 8W | 3000K-4000K-5000K | ＞Ra90 | 560lm | / | White |
| LDUL-A07-06-S-CCT | Lightsaber | 600*40*11mm | 8W | 3000K-4000K-5000K | ＞Ra90 | 560lm | / | Sliver |
| LDUL-A07-06-B-CCT | Lightsaber | 600*40*11mm | 8W | 3000K-4000K-5000K | ＞Ra90 | 560lm | / | Black |
| Model | Product Name | Dimension L*W*H |
Wattage | color |
|---|---|---|---|---|
| LDUL-A07-15W-B-24V | 24V 15W Adapter with Type C Plug | 60*40*30mm | 15W | Black |
| LDUL-A07-30W-W-24V | 24V 30W Adapter with Type C Plug | 90*40*30mm | 30W | White |
| LDUL-A07-30W-B-24V | 24V 30W Adapter with Type C Plug | 90*40*30mm | 30W | Black |
| LDUL-A07-48W-W-24V | 24V 48W Adapter with Type C Plug | 90*40*30mm | 48W | White |
| LDUL-A07-48W-B-24V | 24V 48W Adapter with Type C Plug | 90*40*30mm | 48W | Black |

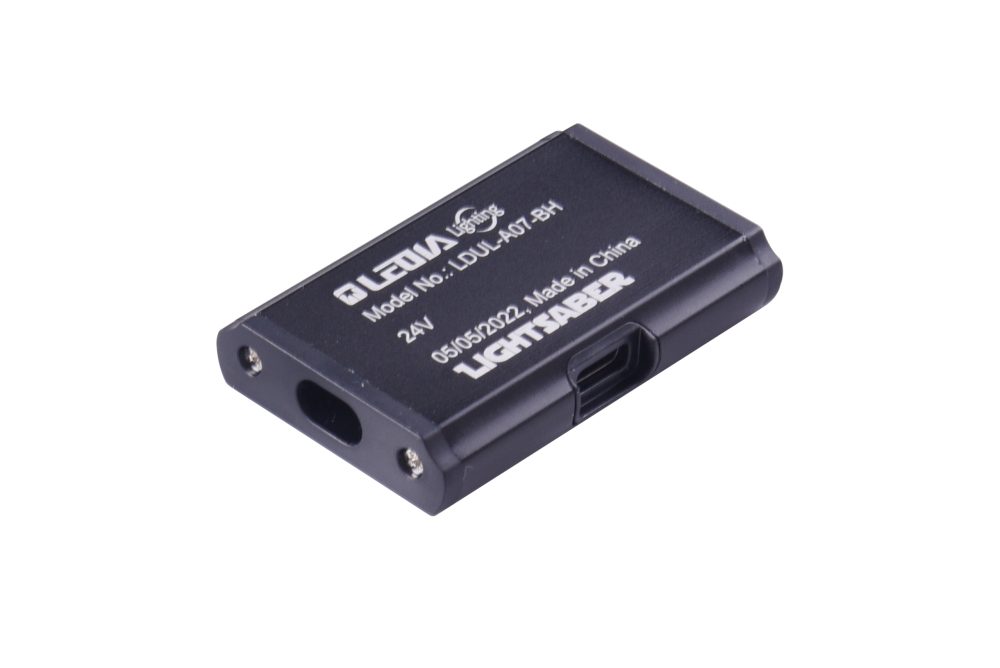

| LDUL-A07-WH | Control and Connection Box | 60*40*11mm | Max. 60W | White |
| LDUL-A07-SH | Control and Connection Box | 60*40*11mm | Max. 60W | Silver |
| LDUL-A07-BH | Control and Connection Box | 60*40*11mm | Max. 60W | Black |
