Features
Prouduct Features
- Use high quality PVC extrusion.
- Uniform and high brightness.
- Reliable PVC protection.
- High Quality LM80 certified 2835 SMD.
- Waterproof option: IP65, IP67, IP68.
- Warranty:3 years.
Dimensions
66(1)
K439

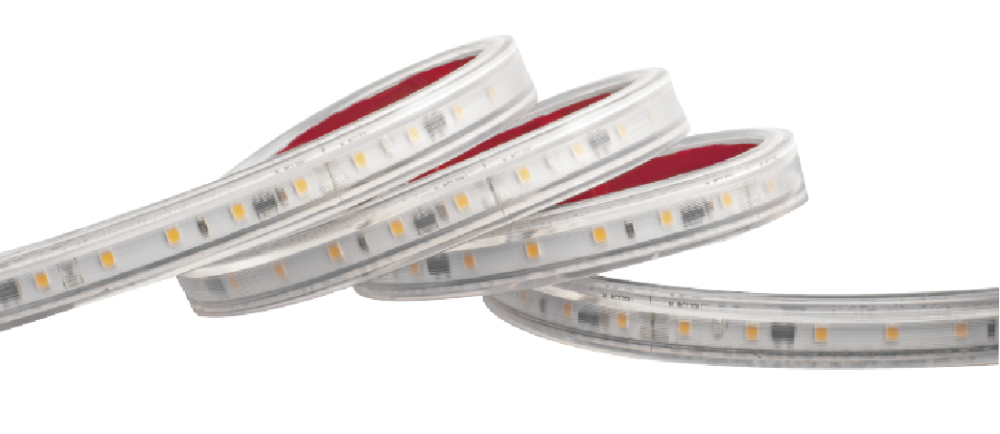

K455
K456
K457

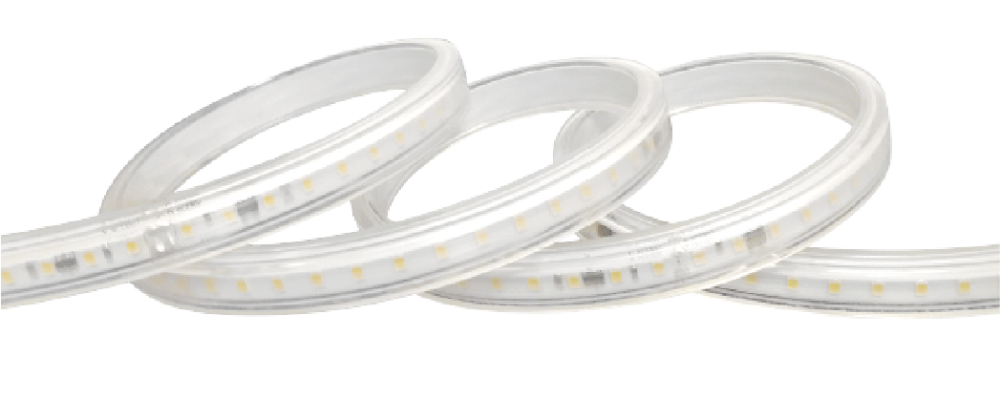

K487

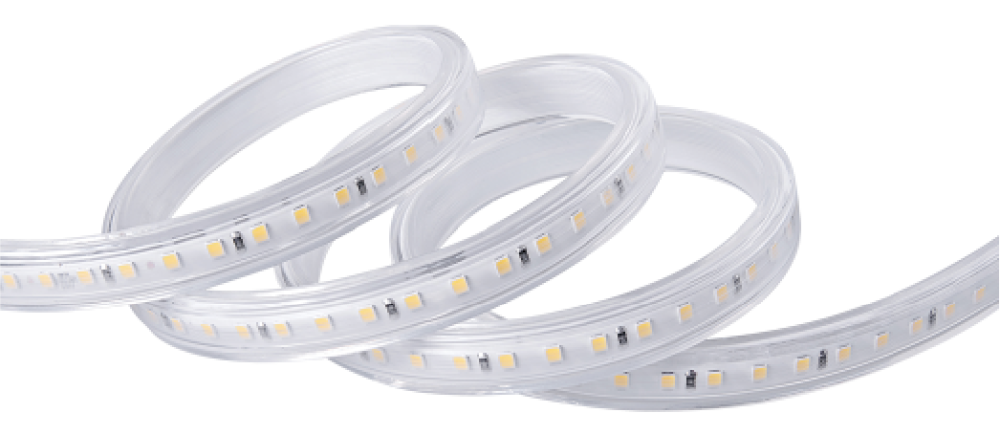

K771

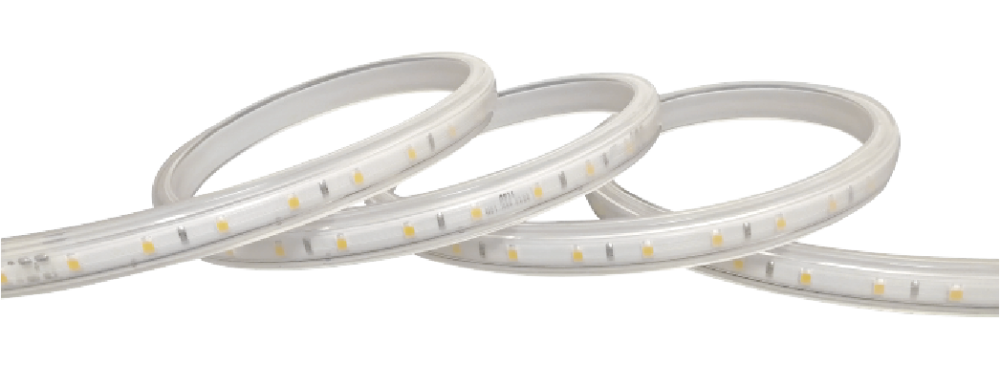

K773
K1090
Application
Packaging
Certifications
| Item No. | Size | Cutting Unit | Input Voltage | Input Current | Typ-power | Max. Power | Bend Diameter | Copper foil | CRI | CCT | LM/m | LM/W | Efficiency Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LD-2835XX60K773C3-AC230 | 13.5×6mm | 6LEDs/1000MM | AC 220V-240V | 1.82A/50m | 8W/m | 8.8W | >60mm | 2oz | >80 | 4000K/5000K/6500K | 720/720/688 | 90/90/86 | F |
| LD-2835XX120K771C3-AC230 | 13.5×6mm | 120LEDs/1000mm | AC 220V-240V | 2.27A/50m | 10W/m | 11W | >60mm | 2oz | >80 | 4000K/5000K/6500K | 900/900/860 | 90/90/86 | F |
| LD-2835XX180K1090C3-AC230 | 16.5×6.8mm | 180LEDs/1000mm | AC 220V-240V | 2.73A/50m | 12W/m | 13.2W | >60mm | 2oz | >80 | 4000K/5000K/6500K | 1080/1080/1032 | 90/90/86 | F |
| LD-2835XX56K456C3-AC230 | 16.5×6.8mm | 28LEDs/500mm | AC 220V-240V | 1.59A/50m | 7W/m | 7.7W | >60mm | 2oz | >80 | 4000K/5000K/6500K | 735/735/700 | 105/105/100 | F |
| LD-2835XX104K457C3-AC230 | 16.5×6.8mm | 26LEDs/250mm | AC 220V-240V | 2.27A/50m | 10W/m | 11W | >60mm | 2oz | >80 | 4000K/5000K/6500K | 1050/1050/1000 | 105/105/100 | F |
| LD-2835XX120K487C3-AC230 | 13.5×6mm | 12LEDs/100mm | AC 220V-240V | 3.18A/50m | 14W/m | 15.4W | >60mm | 2oz | >80 | 4000K/5000K/6500K | 1050/1050/1000 | 105/105/100 | F |
| LD-2835XX56K455C3-AC230 | 16.5×6.8mm | 14LEDs/250mm | AC 100V-120V | 2.71A/50m | 6.5W/m | 7.15W | >60mm | 2oz | >80 | 4000K/5000K/6500K | 1050/1050/1000 | 105/105/100 | F |
| LD-2835XX70K439C3-AC230 | 13.5×6mm | 7LEDs/100mm | AC 100V-120V | 4.17A/50m | 10W/m | 11W | >60mm | 2oz | >80 | 4000K/5000K/6500K | 1050/1050/1000 | 105/105/100 | F |
| LD-FOB288-8XX-AC230 | 50000×10.6×5.8mm | 288LEDs/100mm | AC230V | 0.06A/m | 12W/m | 13.2W | >60mm | 2oz | >80 | 2700K/3000K/4000K/5000K/6000K | 756/800/840/810/780 | 63/67/70/68/65 | G |
