Features
Product Features:
- Ultra long run and shorter cuttable interval
- High Quality LM80 certified 2835 SMD.
- Waterproof option: IP20, IP65, IP67, IP68.
- Suitable for office, residential, retail and decorative lighting.
- CRI80+,90+optional.
- Warranty:3 years.
Dimensions:

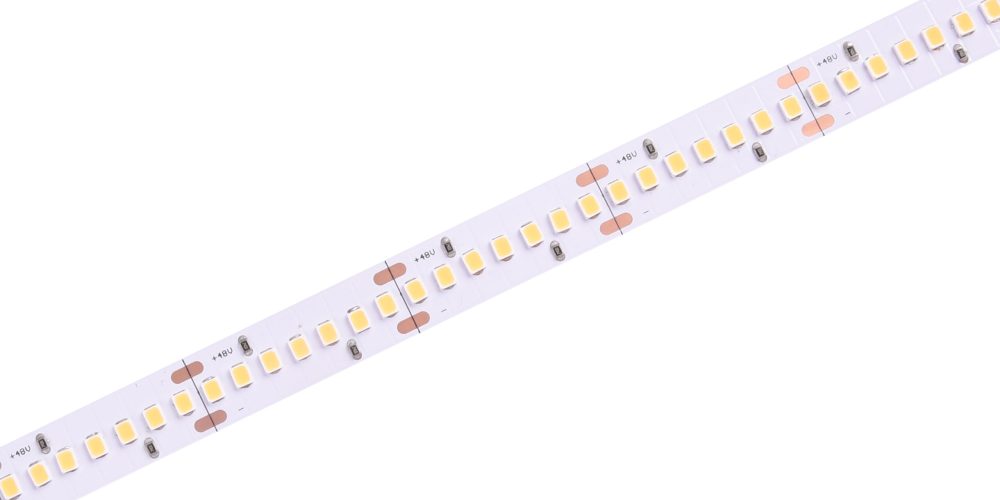

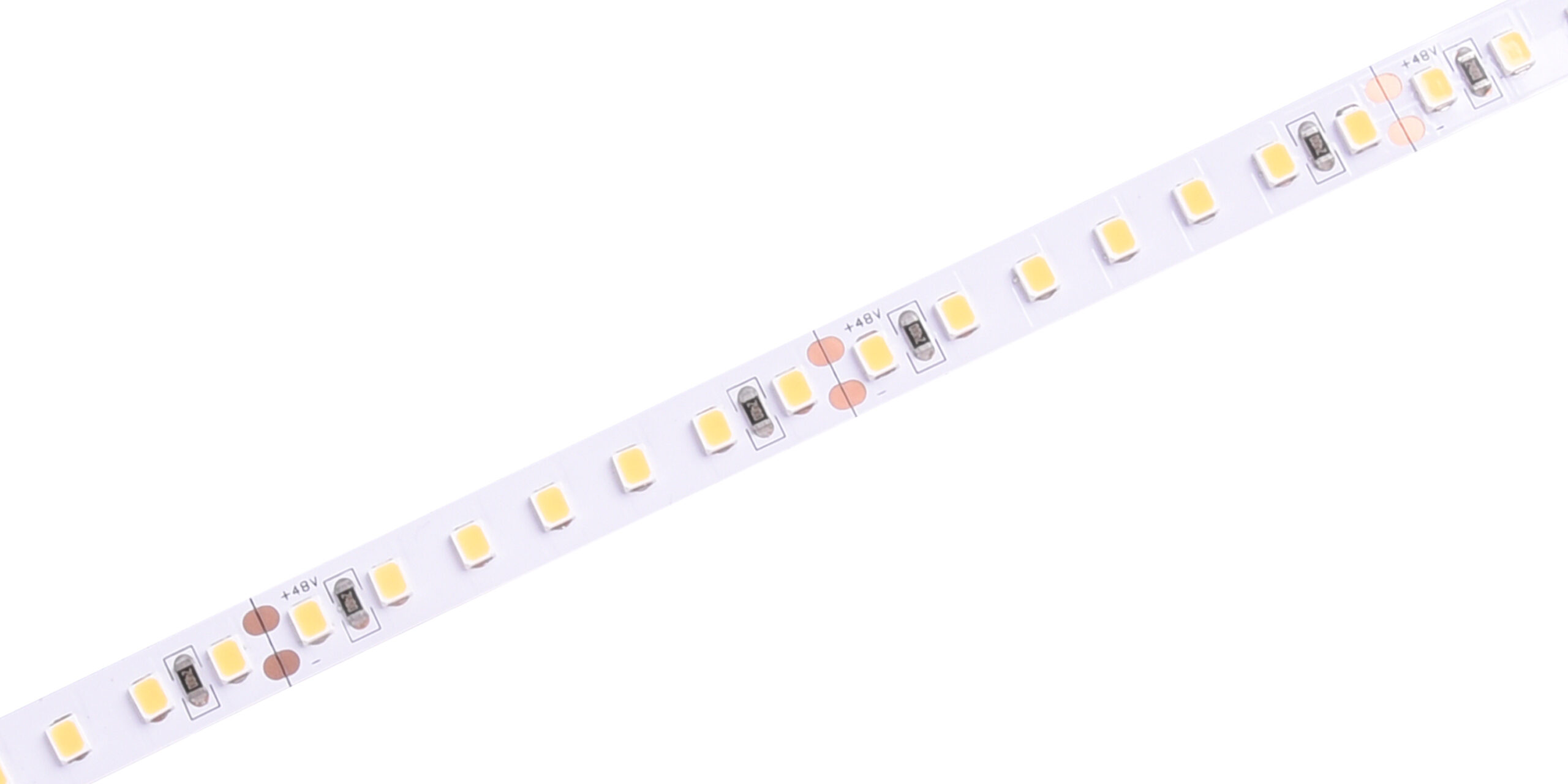

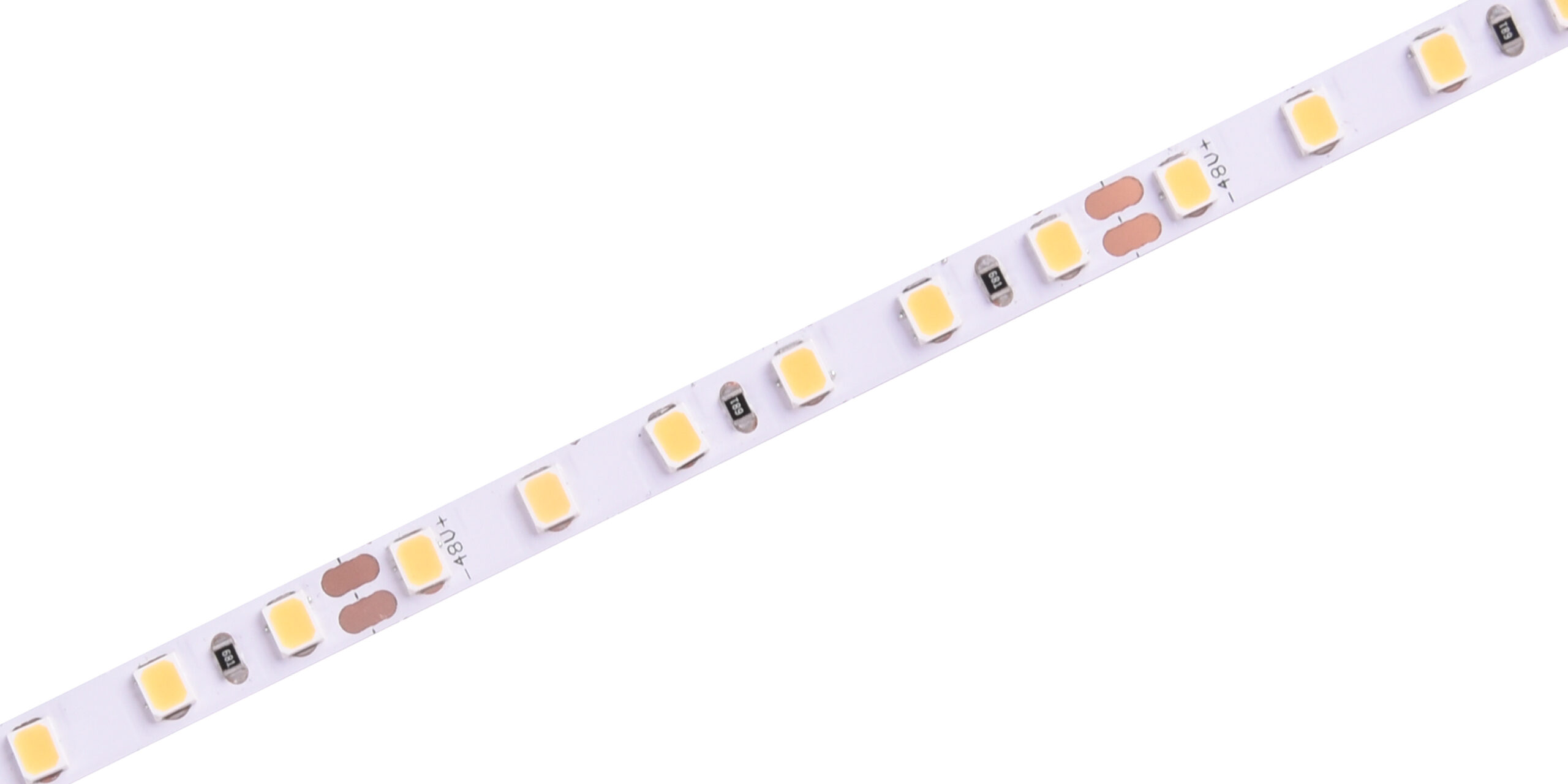

K1171 K1175
K1176 K1187
K1188 K1186
Applications:
Packaging
Certifications
| Item No. | Size | Cutting Unit | Input Voltage | Input Current | Typ-power | Max. Power | Bend Diameter | Copper foil | CRI | CCT | LM/m | LM/W | Efficiency Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LD-2835XX120K1175N1-48 | 30000×5×1.2mm | 6LEDs/60mm | DC48V | 0.2A/m | 11W/m | 12.1W | >60mm | 2oz | >80 | 2700K/3000K/4000K/5000K/6000K | 1283/1354/1426/1397/1369 | 1283/1354/1426/1397/1369 | E |
| LD-2835XX120K1175N1-48 | 30000×5×1.2mm | 6LEDs/60mm | DC48V | 0.2A/m | 11W/m | 12.1W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6000K | 1146/1209/1273/1248/1222 | 1146/1209/1273/1248/1222 | E |
| LD-2835XX210K1176N1-48 | 10000×12×1.2mm | 7LEDs/35mm | DC48V | 0.6A/m | 30W/m | 33W | >60mm | 2oz | >80 | 2700K/3000K/4000K/5000K/6000K | 3767/3976/4185/4102/4018 | 135/142/149/146/144 | D |
| LD-2835XX210K1176N1-48 | 10000×12×1.2mm | 7LEDs/35mm | DC48V | 0.6A/m | 30W/m | 33W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6000K | 3363/3550/3937/3662/3588 | 120/127/133/131/128 | E |
| LD-2835XX210K1171N1-48 | 15000×8×1.2mm | 7LEDs/50mm | DC248V | 0.4A/m | 20W/m | 22W | >60mm | 2oz | >80 | 2700K/3000K/4000K/5000K/6000K | 2559/2701/2844/2787/2730 | 128/135/142/139/136 | D |
| LD-2835XX210K1171N1-48 | 15000×8×1.2mm | 7LEDs/50mm | DC48V | 0.4A/m | 20W/m | 22W | >60mm | 2oz | >90 | 2700K/3000K/4000K/5000K/6000K | 2285/2412/2539/2488/2437 | 114/121/127/124/122 | E |
| LD-5050RGB100K1186N1-48 | 5000×10×1.8mm | 10LEDs/100mm | DC48V | 0.3A/m | 15W/m | 16.5W | >60mm | 2oz | – | RGB | – | – | – |
| LD-5050RGB100K1186N1-48 | 5000×10×1.8mm | 10LEDs/100mm | DC48V | 0.3A/m | 15W/m | 16.5W | >60mm | 2oz | – | RGB | – | – | – |
| LD-2835RGB100XX100K1188N1-48 | 5000×12×1.3mm | 20LEDs/100mm | DC48V | 0.4A/m | 20W/m | 22W | >60mm | 2oz | – | RGBW | – | – | – |
| LD-2835RGB100XX100K1188N1-48 | 5000×12×1.3mm | 20LEDs/100mm | DC48V | 0.4A/m | 20W/m | 22W | >60mm | 2oz | – | RGBW | – | – | – |
| LD-2835CCT120K1187N1-48 | 5000×8×1.1mm | 6LEDs/50mm | DC48V | 0.3A/m | 15W/m | 16.5W | >60mm | 2oz | >90 | 2700K/6500K/2700K+6500K | 664/709/1343 | 88/94/89 | – |
